Anritsu MG3700A RF Vector Signal Generator 3 GHz

You are here: RF Signal Generator » Digital

Anritsu MG3700A RF Vector Signal Generator 3 GHz

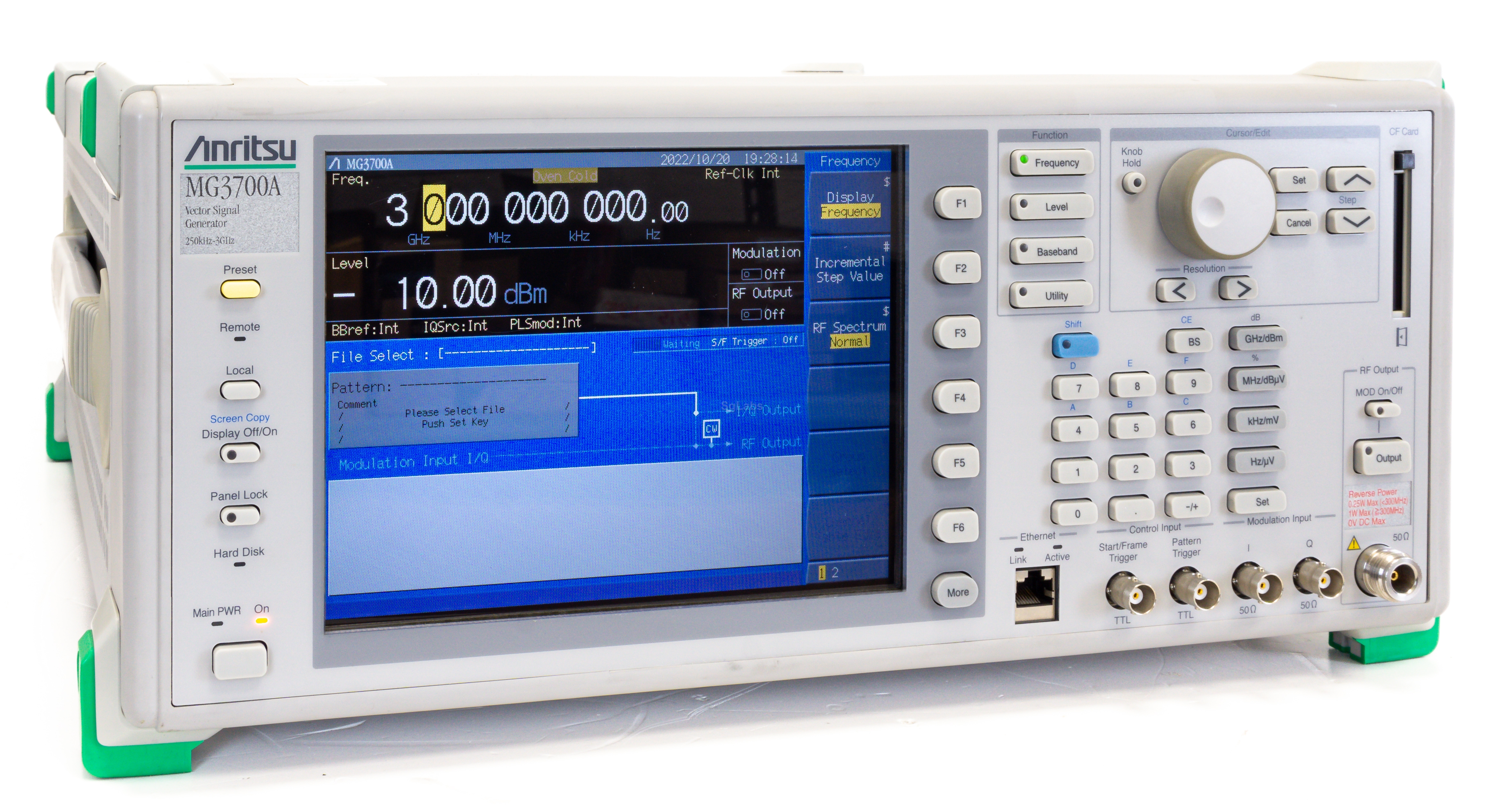

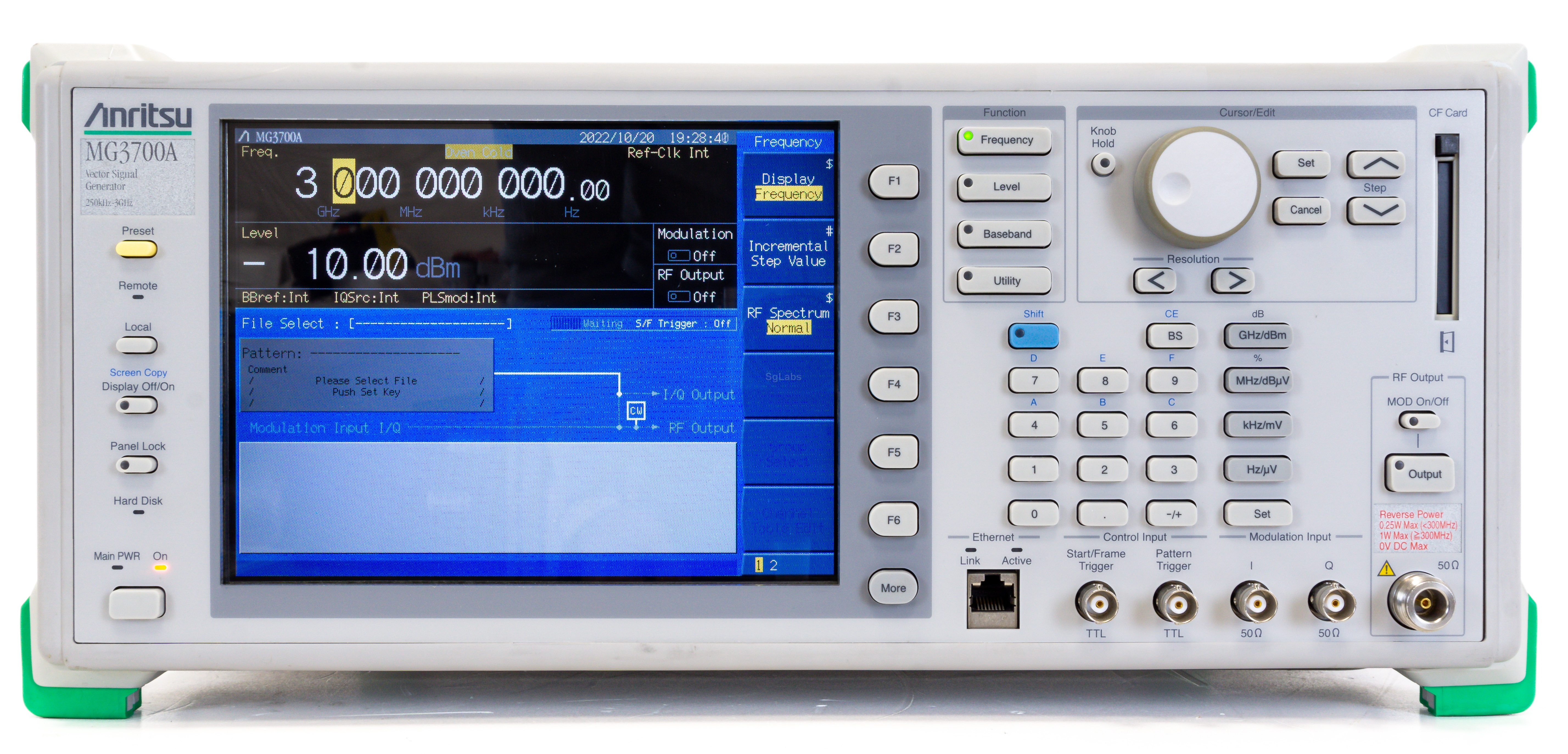

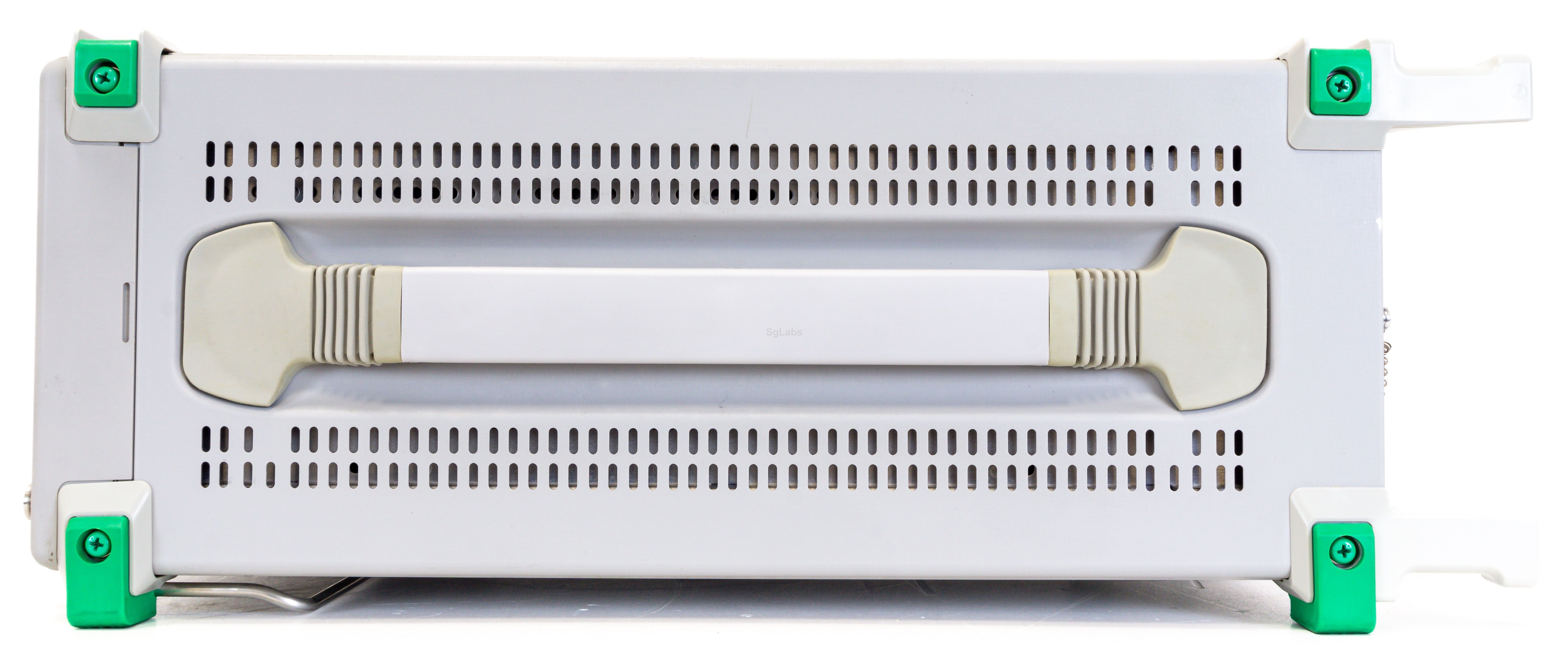

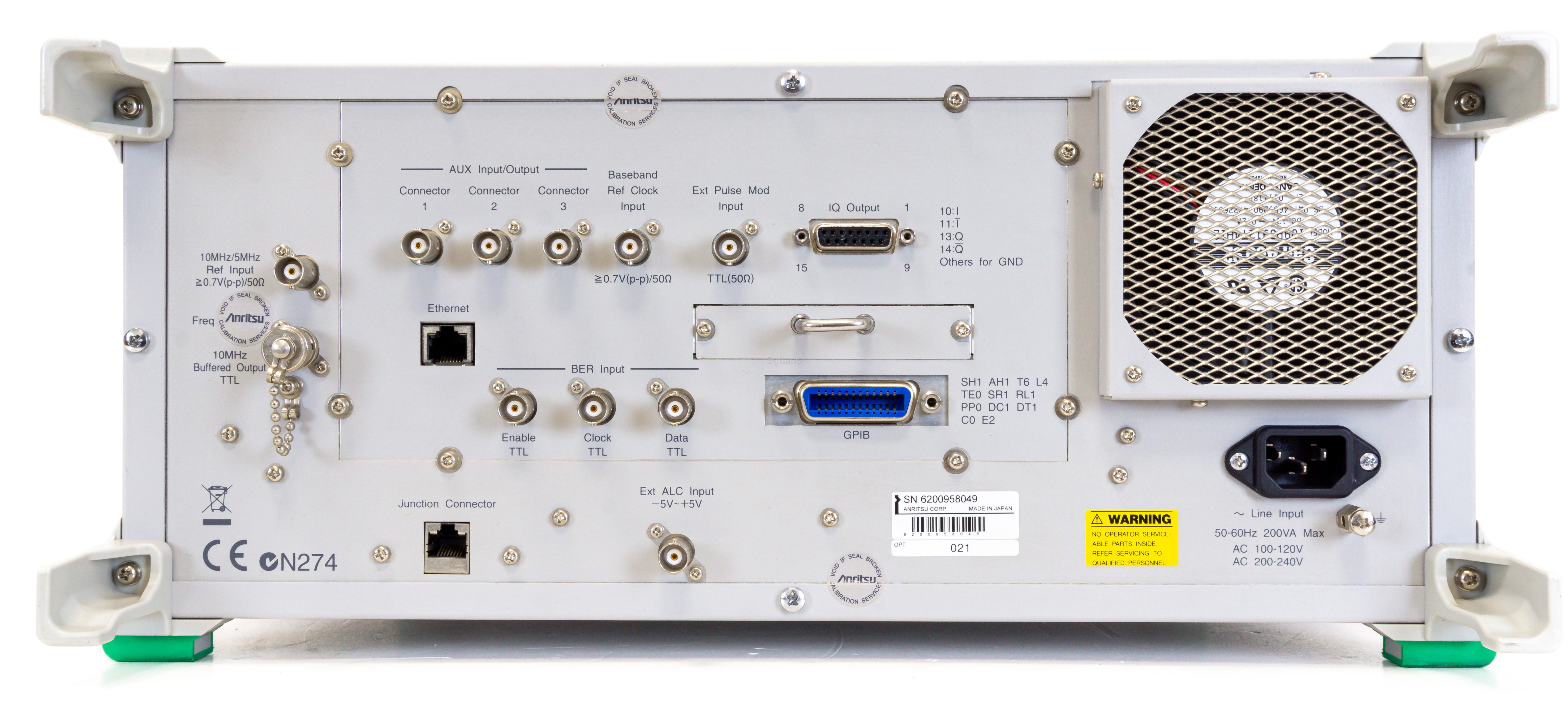

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The MG3700A Vector Signal Generator has a built-in, high-speed, arbitrary waveform baseband generator with a 160 MHz sampling rate. It supports a vector modulation bandwidth up to 120 MHz, has a large arbitrary waveform memory up to 2 GB, and outputs digital modulation signals for major mobile communications, including LTE FDD, LTE TDD, Mobile WiMAX, digital broadcasting ISDB-T/ISDB-Tmm, wireless LAN, GPS, etc. IQproducer is PC application software for generating waveform patterns for the MG3700A. It has a parameter setting screen for each communication method, including LTE/LTE-Advanced (FDD/TDD), WLAN and mobile WiMAX, enabling users to set parameters for generating any waveform pattern. Transfer of generated waveform patterns to the MG3700A supports modulated signal output. In addition, IQproducer can convert ASCII files generated using EDA (Electronic Design Automation) tools (MATLAB, etc.) to waveform files, supporting unique modulated signal measurements.


Features
Basic Performance
  • Frequency range: 250 kHz to 6GHz
            250 kHz to 3 GHz (standard)
            250 kHz to 6 GHz (option)
  • Wide vector modulation bandwidth
            120 MHz (internal baseband generator)
            150 MHz (external IQ input)
  • High level accuracy
            Absolute level accuracy: ±0.5 dB
            Linearity: ±0.2 dB typ.
  • High-speed waveform transmission over 100BASE-TX LAN
  • 40 GB hard disk
  • Large baseband memory
            1 GB = 256 Msamples/channel (standard)
            2 GB = 512 Msamples/channel (option)
  • Waveform Combine Function
            Combine two signals for output
  • Built-in BERT analyzer up to 20 Mbps
            Input bit rate: 1 kbps to 20 Mbps
            Input bit rate: 100 bps to 120 Mbps (option)
  • Max frequency: 3 GHz
  • Minimum Frequency: 250 kHz
  • Max. power: 10 dBm
  • Min. output level: -140dBm
  • Resolution: 0.01 Hz
