Product description

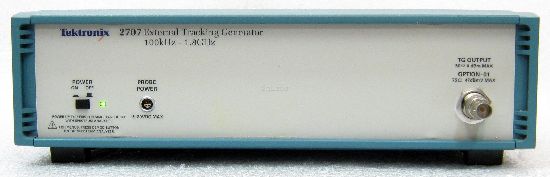

The Tektronix 2707 is an external tracking generator used to characterize filters, check duplexers or cables, make frequency response, SWR measurements (with a return-loss bridge) and EMI site attenuation tests. The system provides swept measurements from 100 kHz to 1.8 GHz and at least 100 dB dynamic range to see filter, ultimate rejection, or circuit isolation characteristics.
- Max. Frequency: 1.8 GHz
- Min. Frequency: 100 kHz
- Max. Level: 0 dBm
- Min. Level: -48 dBm
- Min. Resolution: 0.1 dB
