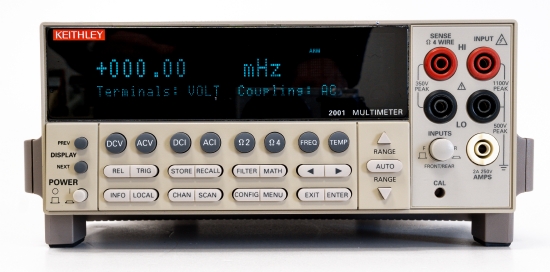

Keithley, 2001
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 2001 Series offers 7 ½ -digit resolution and basic DCV accuracy of 0.0018%, offering  exceptional resolution, accuracy, and sensitivity. This high performance digital multimeter not only delivers performance specifications usually associated only with instruments that cost thousands more, but it also offers a broad range of functions not typically available in DMMs. For greater flexibility, a built-in card slot on the rear panel allows an additional multiplexer card for multi-point measurement applications.
Features
  • True 7½-digit resolution based on 28-bit A/D converter
  • Exceptional measurement integrity combined with high throughput
  • Advanced AC measurements including Peak ACV, AC or AC+DC Coupling, RMS or average, and low frequency RMS
  • Multiple measurement display
  • Optional plug-in switch cards for multipoint measurements
  • Built-in bar graph display
  • AAC Max: 2 A
  • ADC Max: 2 A
  • Digit: 7 1/2
  • VAC Max: 750 V
  • VDC Max: 1000 V
