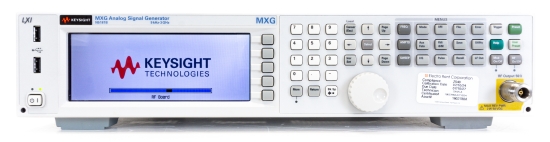

HP Agilent Keysight MXG RF Analog Signal Generator 9 kHz to 3 GHz
You are here: RF Signal Generator » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Featuring high reliability and high power – all in two rack units (2RU) – Agilent MXG analog is optimized to provide the accurate and repeatable reference signals needed from the R&D bench to the production line. Add optional fast frequency and amplitude switching and MXG analog delivers the most value for your manufacturing investment by increasing throughput, maximizing uptime, and saving rack space. With scalable RF performance, the Agilent MXG analog is easily configured to meet your specific test needs, including LO and clock substitution, CW interferers, and modulated signals for analog communication systems such as AM, FM, and ΦM.
Features
- 100 kHz to 6 GHz (Opt. 506)
- 0.01 Hz Resolution
- Output power: -110 to +13 dBm, to -127 dBm with Opt. 1EQ
- Phase noise: -121 dBc/Hz at 1 GHz
- AM, FM, ΦM, Pulse Modulation (optional)
- TCXO time base reference
- Backward code compatibility with Keysight (including 8648 & ESG) and other signal generators
- USB, GPIB, LAN
- Max frequency: 3 GHz
- Minimum Frequency: 9 kHz
- Modulation: AM-FM-PM (Opt. UNT)
- Max. Output level: +13 dBm levelled
- Min. output level: -127 dBm (Opt 1EQ)
