- High spectral purity
- Flexible architecture, upgrade paths for options
- Choice of electronic or mechanical attenuator
- Superior level accuracy
- Wideband FM and Phase Modulation, AM and Pulse Modulation
- Step sweep (frequency, power and list)
- Built-in function generator

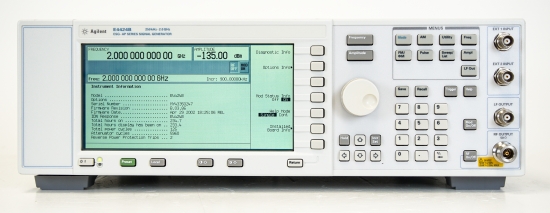

ESG-AP Series Analog RF Signal Generator, 2 GHz
You are here: RF Signal Generator » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The E4424B RF Signal Generator provides outstanding phase-noise performance and analog modulation features for all general-purpose test needs. It offers excellent performance with superior quality, reliability and worldwide support -- at an affordable price. The E4424B provides comprehensive analog modulation capabilities, including AM, FM, phase modulation and pulse modulation. It is ideally suited to meet the demanding requirements of today's receiver test, component test and local oscillator application.
Features
- Range di Frequenza: 250 kHz - 3 GHz
- Alta purità spettrale
- SSB Phase Noise (at 20 kHz offset)
- at 500 MHz < –134 dBc/Hz
- at 1 GHz < –130 dBc/Hz
- at 2 GHz < –123 dBc/Hz
- Risoluzione 0.01 Hz
- Wideband FM and FM
- Step sweep (frequency, power and list)
- Flexible architecture, upgrade paths for options
- Choice of electronic or mechanical attenuator
- Superior level accuracy: +7 to –120 dBm
- Wideband FM and Phase Modulation, AM and Pulse Modulation
- Step sweep (frequency, power and list)
- Built-in function generator
- Opt UNB: Adds higher power with mechanical attenuator
- Max frequency: 2 GHz
- Minimum Frequency: 100 kHz
- Modulation: AM-FM-PM-Pulse
- Max. power: +13 dBm
- Max. Output level: +20 dBm
- Min. output level: - 136 dBm
- Resolution: 0.01 Hz
