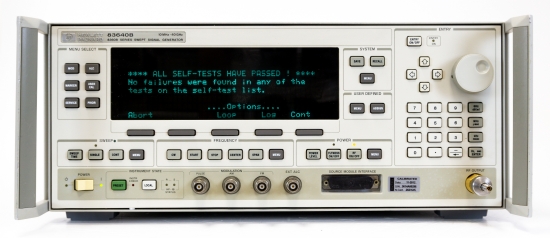

HP 83640B Signal Generator
You are here: RF Signal Generator » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 83640B synthesized sweeper is the standard of excellence for applications requiring the high performance and accuracy of a synthesized source and the speed and versatility of a sweep oscillator. Synthesized broadband frequency coverage and precise 1 Hz frequency resolution (Opt 008) are generated by indirect synthesis, enabling the Keysight 83640B to achieve low single-sideband phase noise performance. It also delivers excellent harmonic performance with harmonics at least 50 dB below the carrier from 2.0 to 26.5 GHz, and at least 40 dB below the carrier above 26.5 GHz.
Features
- Frequency Range: 10 Mhz - 40 GHz
- Analog Sweep
- Resolution: 1 kHz, 1 Hz with opt 008
- Levelled power range: -20 a 10 dBm (-110dBm opt 001)
- Analog Power Sweep
- External ALC
- Modulation: AM, FM, Pulse
- Max frequency: 40 GHz
- Minimum Frequency: 10 MHz
- Modulation: AM FM Pulse
- Max. power: 10 dBm Freq < 26.5 GHz, 6dBm > 26.5 GHz
- Min. output level: - 20 dBm, -110 with opt 001
- Resolution: 1 Hz with opt 008, standard 1 kHZ
