- Master the essentials in signal characterization with the leading low-cost tool in signal analysis
- Perform cost-effective stimulus response measurements with optional built-in tracking generator
- Add crucial functionality with X-Series measurement applications for analog demodulation, noise figure, phase noise, vector signal analysis, EMI precompliance, and more
- Enhance theory with practical skills that enable deeper insights: use with a training kit in your RF & microwave education lab

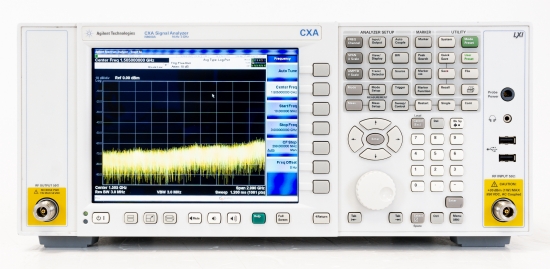

HP Agilent Keysight N9000A CXA Signal Analyzer
You are here: Spectrum Analyzer » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Frequency: 9 kHz to 26.5 GHz
- Frequency Options: 3, 7.5, 13.6, 26.5 GHz
- Standard Attenuator Range: 50 dB
- Standard Attenuator Step: 10 dB
- DANL @1 GHz: -163 dBm
- Maximum Analysis Bandwidth: 25 MHz
- Phase Noise @1 GHz (1 MHz offset) : -130 dBc/Hz
- Phase Noise @1 GHz (10 kHz offset): -110 dBc/Hz
- Phase Noise @1 GHz (30 kHz offset): -110 dBc/Hz
- TOI @1 GHz (3rd Order Intercept):+17 dBm
- Overall Amplitude Accuracy: ±0.5 dB
- Bandwidth Options: 10 standard, 25 MHz
- Display: LCD
- Max. Frequency: 3, 7.5, 13.6, 26.5 GHz
- Min. Frequency: 9 kHz
- Tracking generator: Opzionale
