Narda 4313B-2 2 to 4 GHz, 2 Way Power Divider
You are here: RF Component » Power splitter
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

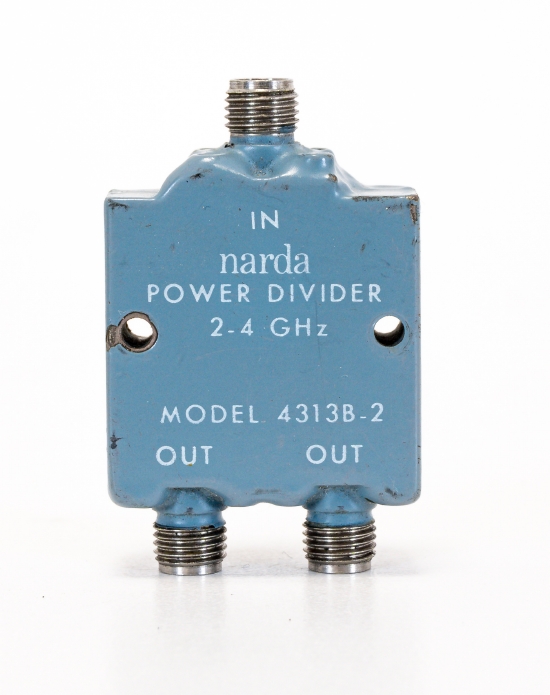

Narda 4313B-2 2 to 4 GHz, 2 Way Power Divider
Features
- Configuration 2 Way
- Type Reactive Power Divider, Octave Power Divider
- Frequency 2 to 4 GHz
- Insertion Loss 0.4 dB
- Isolation 20 dB
- Input Power 3 to 30 W
- Amplitude Balance 0.2 dB
- Phase Balance 2 Degree
- VSWR Input 1.30:1
- VSWR Output 1.20:1
- Connector SMA, SMA - Female
- Weight 0.8 oz, 20 g
- Grade Military, Commercial
- Connector: SMA
- Max. Frequency: 4 GHz
- Min. Frequency: 2 GHz
- Max. power: 30 W
Price
€ 50,00
