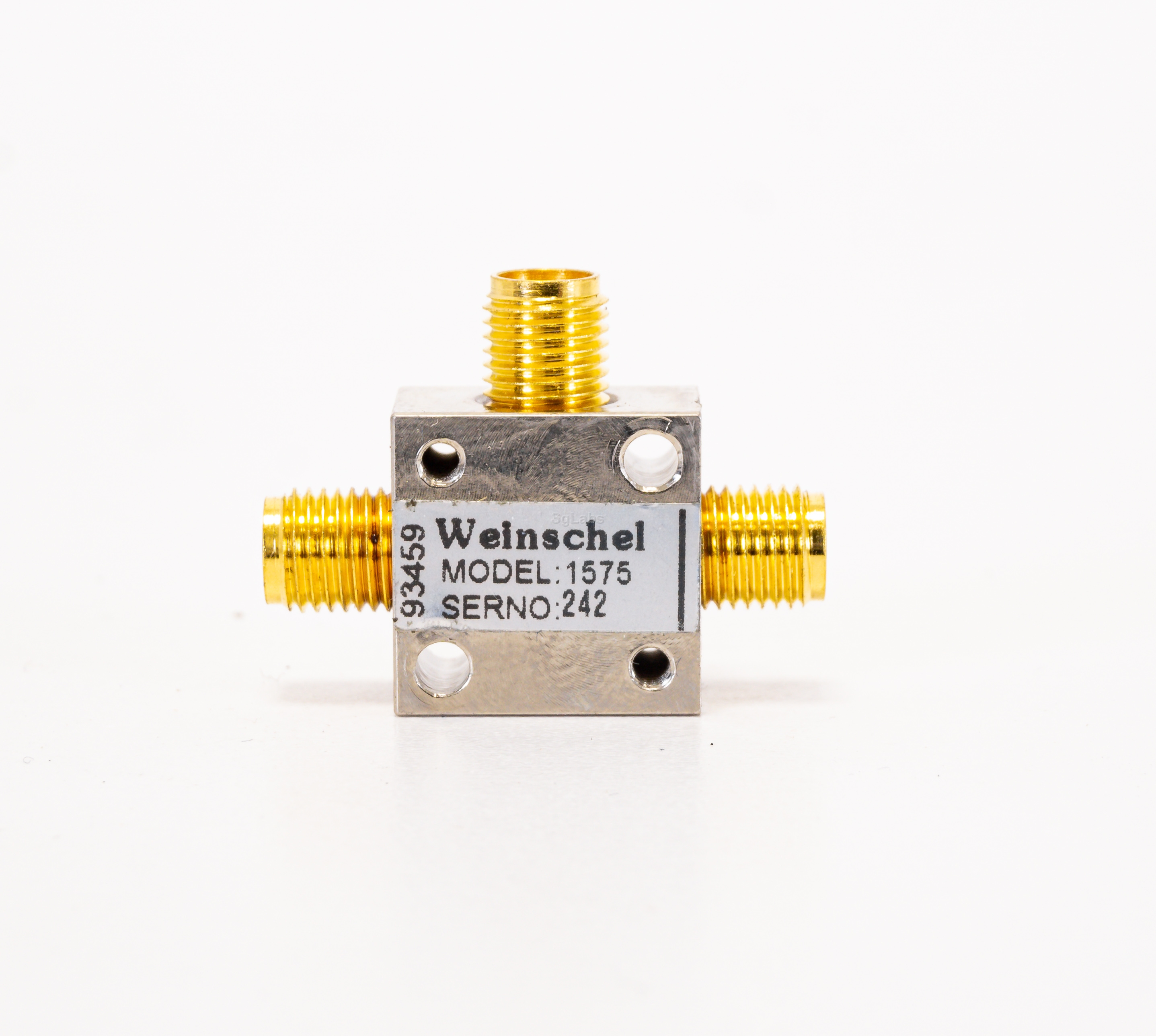

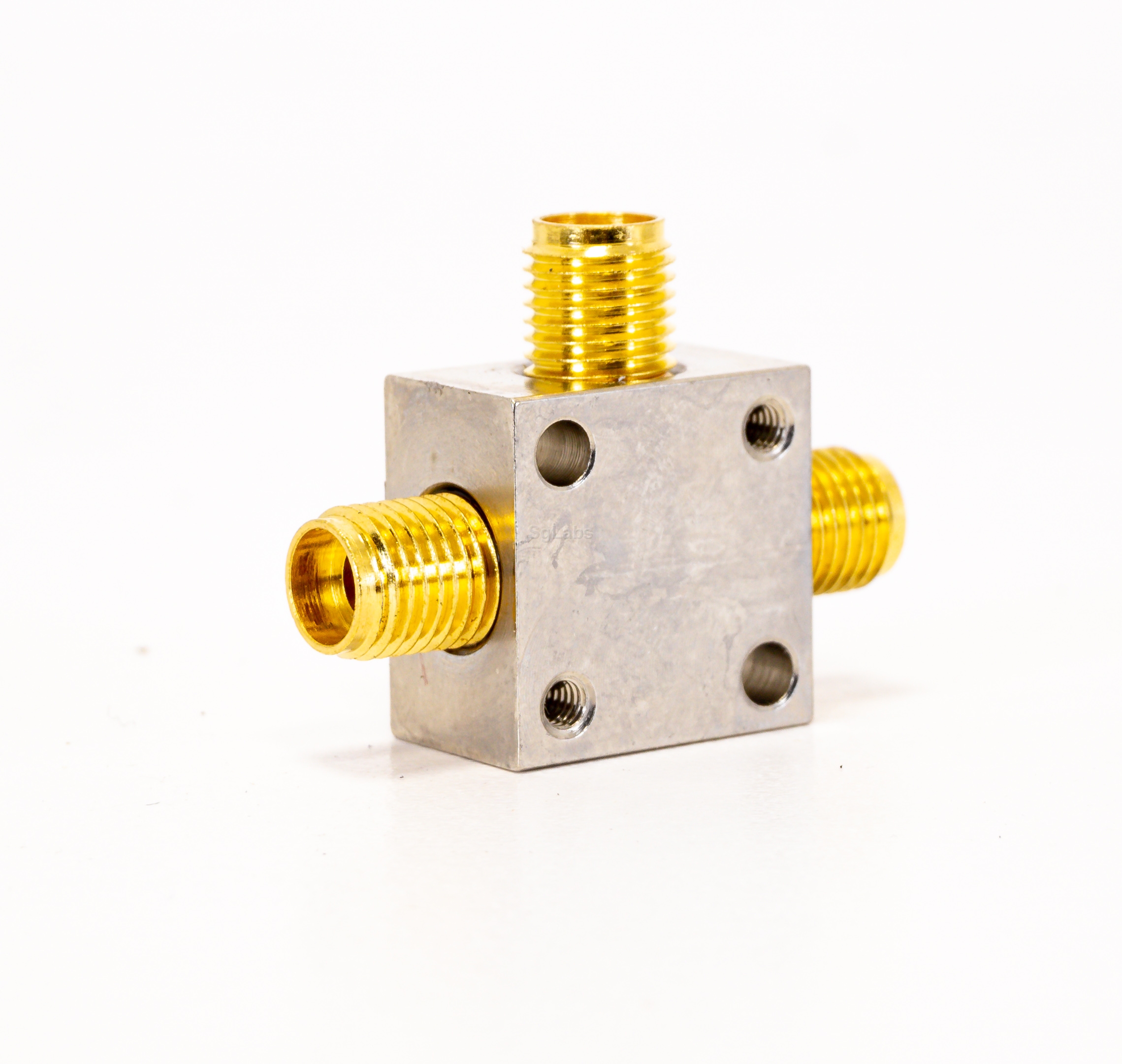

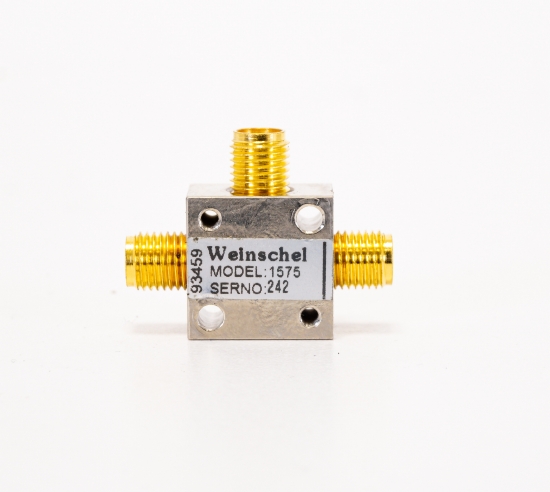

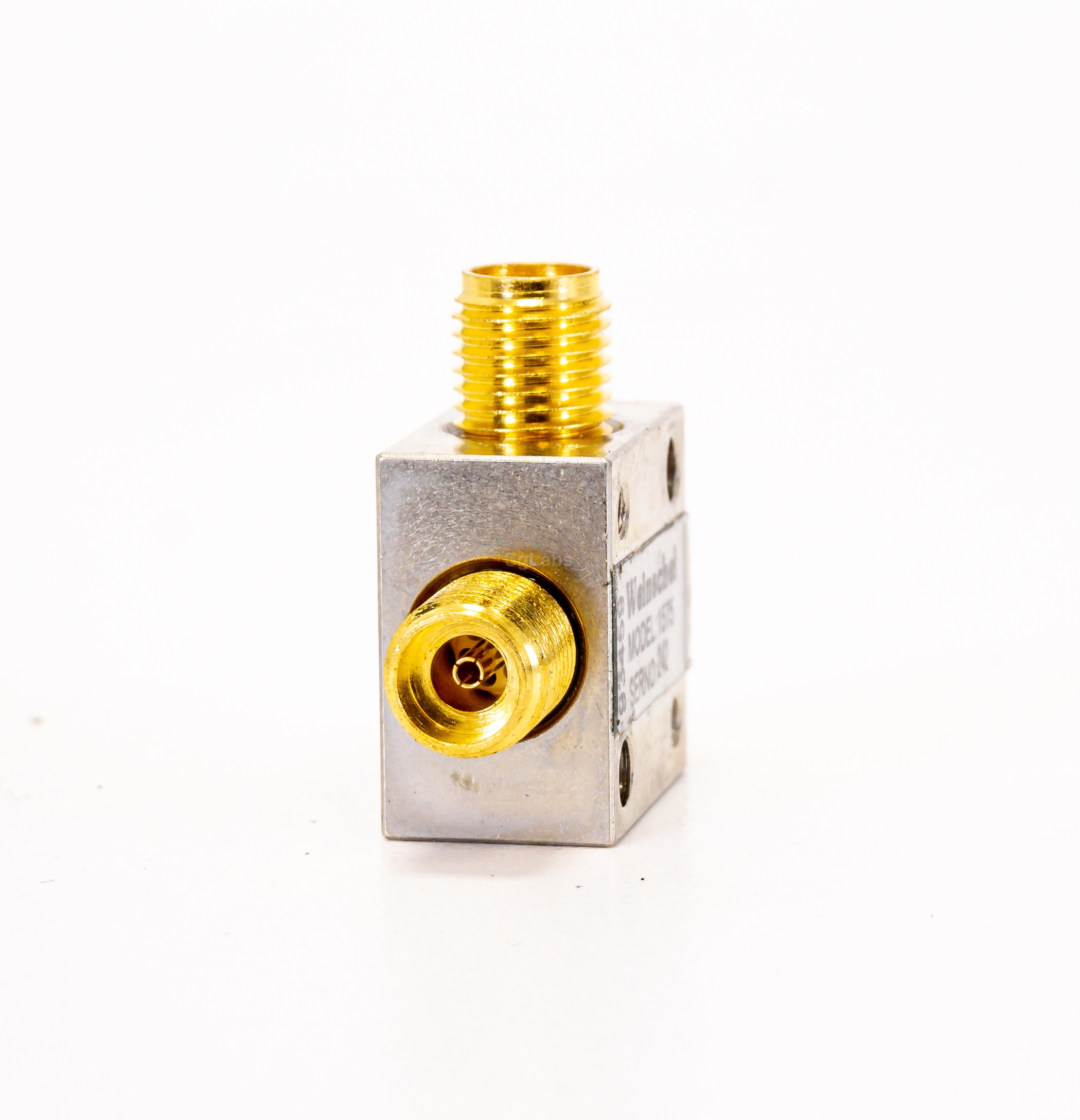

The WA1575 from Weinschel Associates is a 2-Way Broadband Resistive Power Divider that operates from DC to 40 GHz. It has an insertion loss of less than 6.5 dB and can handle up to 1 W of CW Power and 1 KW of peak power. This bi-directional power divider has a phase balance of 5 degrees and amplitude balance of 0.50 dB with a VSWR of 1.7:1. The input and output ports are matched to 50 Ohms.
The power divider is available in a module with 2.92mm, 3.5mm or SMA Connectors and measures 29 x 9 x 22 mm. It is fabricated in a lightweight miniature package with high power capability.
