HP Agilent Keysight, E4422B
You are here: RF Signal Generator » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

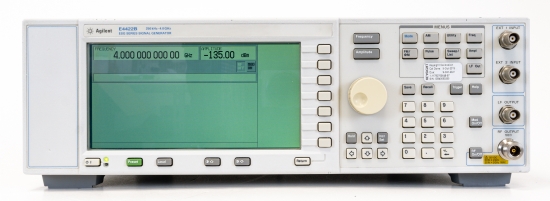

The HP / Agilent E4422B 250 kHz - 4 GHz ESG RF Signal Generator offers excellent in-channel performance with superior quality, reliability and worldwide support - at an affordable price. The first in a new generation of signal generators, it provides excellent frequency and level control, and wide analog modulation capabilities. It is ideally suited to meet the demanding requirements of today's receiver test, component test and local oscillator applications.
Features
- Frequency range : 250 kHz - 4 GHz
- Output level : -136 dBm - +13 dBm
- Modulation: FM, AM, Phase e Pulse
- Frequency resolution: 0.01 Hz
- Power resolution: 0.2 dB
- Output accuracy: 0.9 dB
- Sweep mode: amplitude and frequency
- Max frequency: 4 GHZ
- Minimum Frequency: 250 KHz
- Modulation: AM-FM
- Max. Output level: + 13 dBm
- Min. output level: - 136 dBm
Price
€ 1.500,00
