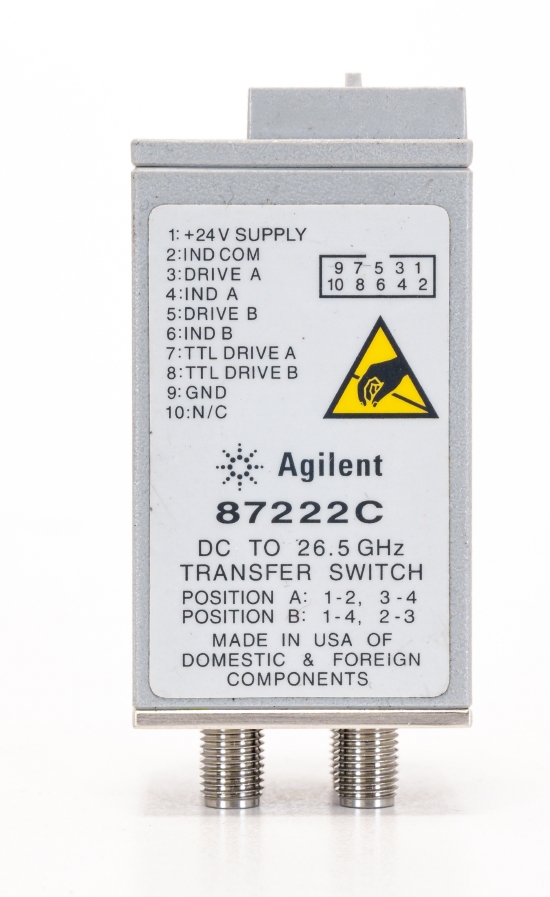

HP Agilent Keysight 87222C Coaxial Transfer Switch DC 26.5 GHz
You are here: RF Component » coaxial switch
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Flexibility is essential in signal routing applications, and the Keysight 87222C 4-port coaxial transfer switch offers just that. It provides exceptional repeatability, low insertion loss, and high isolation. These switches provide simplification of design in signal routing and conditioning applications. The Keysight 87222C can be used in a variety of applications such as, a drop-out switch, switching two inputs and two outputs, or signal reversal switching.
Features
- Exceptional repeatability of 0.03 dB
- Guaranteed performance up to 5 million cycles
- Excellent isolation, typically >90 dB at 26.5 GHz
- Opto-electronic indicators and interrupts
- Magnetic latching
- TTL/5V CMOS compatible
- Connector: SMA
- Max. Frequency: 26.5 GHz
- Min. Frequency: DC
Price
€ 250,00
