These meters have the features needed to find most electrical, electro-mechanical and heating and ventilation problems. They are simple to use and have significant
improvements over Fluke’s original 70 Series like, True-RMS, more measurement functions, conformance to the latest safety standards, and a much larger display that’s easier to view.

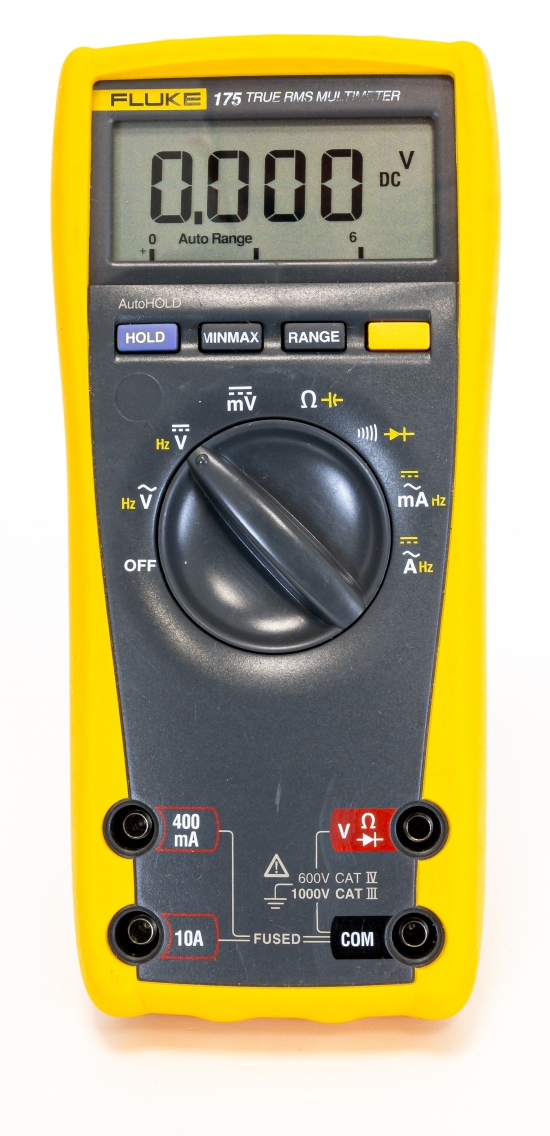

Fluke 175 Handheld digital multimeter
You are here: MULTIMETER » Digital Handheld
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- True-RMS measurements
- Digital display counts, updates 4 times per second
- Display backlight
- Analogue bargraph / segments, updates 40 times per second
- Auto and Manual ranging
- Display Hold and AutoHOLD®
- Min-Max-Average recording mode with Min/Max Alert
- Temperature readings (bead thermocouple probe included)
- Smoothing mode allows filtering of rapidly changing inputs
- Audible continuity and diode test
- Test lead alert
- Unsafe voltage alert warns for voltages above 30 V
- Low battery indication
- Ergonomic case with integrated holster
- Easy battery and fuse exchange without opening the complete case
- Selectable sleep mode preserves battery life
- CAT III 1000V and CAT IV 600V safety rated
- Measured Functions: AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance
- AAC Max: 10A
- ADC Max: 10A
- Digit: 6000 count
- VAC Max: 1000V
- VDC Max: 1000V
