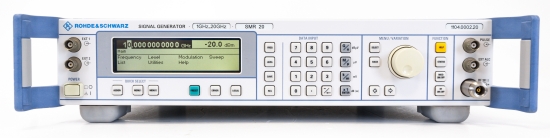

R&S Rohde & Schwarz SMR20 Microwave RF Generator 20 GHz
You are here: RF Signal Generator » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The SMR20 is a 20 GHz RF Generator from Rohde & Schwarz. An RF generator is a tool engineers use to generate sinusoidal outputs while testing electronic equipment. The output will automatically have its frequency varied or swept between frequencies. A “sweep” is one complete cycle of a frequency variation. Engineers use RF signal generators as test equipment, mostly to measure responses of filters, amplifiers, and electrical components.
Features
- Frequency Range: 10 MHz to 20 GHz
- High-precision output level
- Fast setting time for frequency and level
- IF upconversion
- AM/SCAN, FM, ASK/FSK and pulse modulation
- Frequency switching time:
- Standard version: CW generator with pulse modulation and digital frequency sweep
- Compact, lightweight, user-friendly: ideal in the lab and for field applications
- Max frequency: 20 GHz
- Minimum Frequency: 10 MHz with opt B11
- Modulation: AM FM Pulse
- Max. Output level: 13 dBm
- Min. output level: -20 dBm or -130 with opt B17
- Resolution: 1 kHz or 0.1 Hz with opt B3
