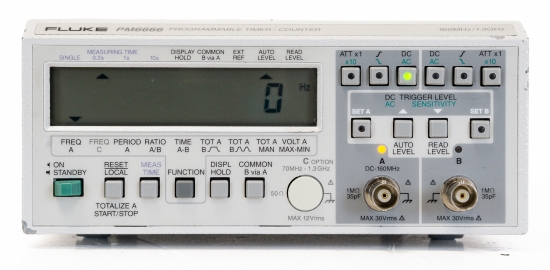

Fluke PM6666 Programmable Timer-Counter
You are here: Frequency Counter » Up to 3 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Phillips PM6666 is an economical, easy-to-use counter that meets the demands for high-precision measurements, reliability and durability. The units use reciprocal frequency counting, which yields high resolution measuring results under all conditions, even on low frequency measurements. The high performance counter front ends, providing variable sensitivity and noise immunity increase measuring accuracy. The counters have high input protection, allowing it to withstand inputs of 12V RMS on the optional 50 ohm RF input and 350V (DC+ac peak) on the 1 Mohm LF input.
Features
- Frequency range of 0.1 Hz to 1.3 GHz
- Resolution of 7 digits
- Measuring times of 0.2/1/10 seconds
- Single, trigger levels of auto-manual-GPIB
- Max. Frequency: 160 MHz - 1.3 GHz 3rd Channel
- Min. Frequency: DC
- Channels: 2 -3 optional
- Digit: 7
