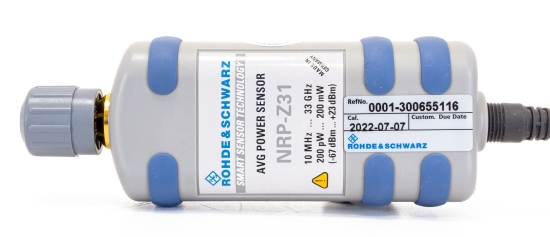

R&S Rohde & Schwarz NRP-Z31 Power sensor 33 GHz
You are here: Power Meter / Sensor (RF) » Power sensor
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Three-path diode power sensor R&S®NRP-Z31 is suitable for numerous applications because they support continuous average, burst average, timeslot average, gate average and trace measurements. Featuring outstanding performance and high measurement speed and accuracy, the sensors can be used to perform precise average power measurements on modern wireless standard signals such as LTE, 3GPP, GSM, WiMAX™ and WLAN. For detailed analysis of GSM signals, for example, the sensors offer additional measurement functions such as the timeslot mode and trace mode with a video bandwidth of 100 kHz. Due to its frequency range of up to 33 GHz, the R&S®NRP-Z31 is ideal for use in the automotive sector, for example in the development and production of distance and anti-collision radars (24 GHz). It is also perfect for installation and maintenance work on base stations of satellite systems.
Features
- Measurement range: -67 dBm to +23 dBm (200 pW to 200 mW)
- Frequency range: 10 MHz to 33 GHz
- 3.5 mm connector
- Operation with R&S®NRP2 base unit or via USB on a Laptop/PC 90 dB dynamic range for CW and modulated signals
- Ideal to measure signals of satellite communication systems
- Innovative three-path diode power sensor with enhanced inter-range performance
- Continuous average, burst average, timeslot average, time gating and trace mode supported (video bandwidth 100 kHz)
- Automatic burst detection and acquisition
- Up to 1500 measurements/s (buffered mode)
- Low sensitivity to harmonics
- True universal power sensor for a vast number of applications
- Max. Frequency: 33 GHz
- Min. Frequency: 10 MHz
- Max. power: 23 dBm
- Min. Power: -67 dBm
- Measure: Average
Price
€ 1.250,00
