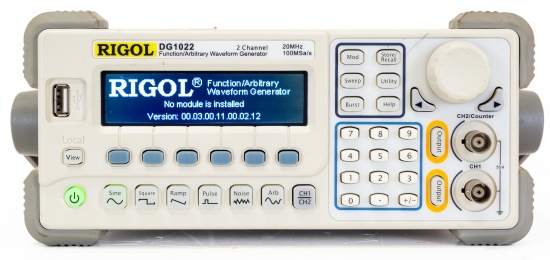

Rigol DG1022 Arbitrary Waveform Generator 20 MHZ 2 Ch.
You are here: Function Generator » Digital Arbitrary
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Rigol DG1022 Arbitrary Waveform Generator 20 MHZ 2 Ch.
Features
- Adopts advanced DDS technology; dual channel output; maximum sampling rate of 100MSa/s; 14-bit vertical precision
- - Output 5 standard waveforms; Built-in 48 arbitrary waveforms
- - Abundant modulation functions: AM, FM, PM, FSK, linear/logarithmic sweep and burst
- - Abundant output and input: waveform output; synchronous signal output; external modulation source, 10MHz external reference clock input, external trigger input
- - Unique channel matching and channel copy
- - Built-in high-precision and wideband counter, the measurement range: 100mHz ~ 200MHz (single channel)
- - Standard configuration interfaces: USB device and USB host, and support U disk storage
- - Perfect interconnection with DS1000 series digital oscilloscope
- - Powerful arbitrary waveform editing software "UltraWave" included in standard delivery
- - Support remote control by commands
- - A variety of display modes
- - Clear graphical interface
- - Support Chinese and English menu and input
- - Help button makes information easier
- - File management (support USB flash device and local storage)
- Max. Frequency: 20 MHZ
- Min. Frequency: 1 μHz
- Pulse generator: yes
- Max. Level: 10 Vpp 50 ohm
- Min. Level: 2 mV
- sweep: yes
Price
€ 220,00
