Product description

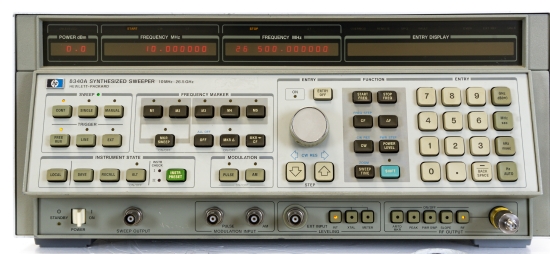

The 8340A is a 26.5 GHz sweep generator from Agilent. A sweep generator is a tool engineers use to generate sinusoidal outputs while testing electronic equipment. The output will automatically have its frequency varied or swept between frequencies. A sweep is one complete cycle of a frequency variation. Engineers use sweep signal generators as test equipment, mostly to measure responses of filters, amplifiers, and electrical components.
Features
- Frequency range: 10 MHz to 26.5 GHz
- Delivers the combined performance of a synthesizer and broadband sweep generator in one
- Instrument that is controlled by HP-IB bus
- Ideal for both manual and automatic test systems
- Resolutions: 1-4 Hz depending on frequency
- Low Spurious and phase noise
- 100 ns pulse width capability
- Provides pulse and AM modulation
- Sweep capabilities from 100 Hz to full frequency range
- Calibrated output of +10 dBm to -110 dBm
- Ideal for use with network analyzer systems
- Max frequency: 26.5 GHz
- Minimum Frequency: 10 MHz
- Modulation: AM-PULSE
- Min. output level: -110 dB
- Resolution: max 1 Hz
