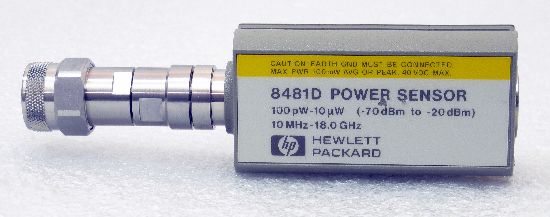

The 8481D diode power sensor is designed for use with the EPM series, EPM-P series, 70100A, E1416A and the 435A/B, 436A, 437A/B, and 438A power meters. It is a high sensitivity sensor operating from 10 MHz to 18 GHz at power levels from -70 to -20 dBm. It provides exceptional accuracy and stability even if your test signal is subjected to multi-tone environments, modulated carriers, or carriers with high harmonics. You also get extremely low SWR and its traceable to the U.S. National Institute of Standards and Technology (NIST). An 11708A 30 dB attenuator is necessary for calibration with the power meter 0 dBm, 50 MHz reference. Or WEINSCHEL 5848 or similar.
HP Agilent Keysight, 8481D
You are here: Power Meter / Sensor (RF) » Power sensor
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Frequency range: 10 MHz - 18 GHz
- Power range: -70 dBm / - 20 dBm
- Max. Frequency: 18 GHz
- Min. Frequency: 10 MHz
- Max. power: - 20 dBm
- Min. Power: - 70 dBm
Price
€ 490,00
