Product description

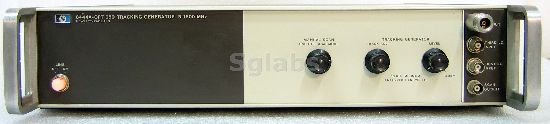

The HP Agilent 8444A Tracking Generator is a tracking signal source for use with the 8554B, 8590A/B, 8568A, 8568B, 8558B and 8555A Spectrum Analyzers. Provides a swept source for frequency response measurements, and a constant amplitude signal for a frequency counter input. Allows for swept frequency tests over the 500kHz to 1250MHz frequency range. Dynamic range is greater than 90 dB from spectrum analyzer 1 dB gain compression point to average noise level (approx. -10 dBm to 100 dBm).
Features
- Frequency Range 0.5 MHz - 1.3 GHz (opt.058)
- Frequency Resolution 1 KHz
- Residual FM (peak-to-peak) 200 Hz stabilized
- Tracking Generator 0 to -10 dBm continuosly variable
- Opt 59: 1500 MHz
- Max. Frequency: 1500 MHz (opt.059)
- Min. Frequency: 500 KHz
- Max. Level: 0 dBm
- Min. Level: -10 dBm
