Narda 3002-20 Directional Coupler 0.95 - 2.2 GHz

You are here: RF Component » Directional coupler

ZOOM

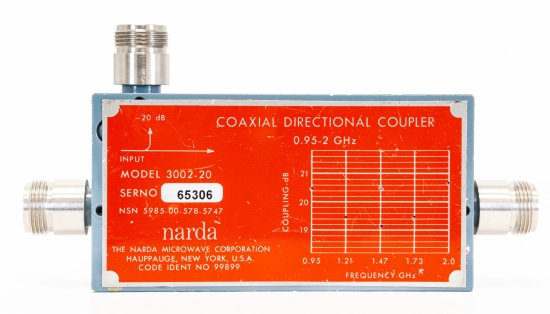

Narda 3002-20 Directional Coupler 0.95 - 2.2 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 3002-20 from Narda-MITEQ is a Directional Coupler with Frequency 950 MHz to 2 GHz, Coupling 20 dB, Coupling Variation ±1.2 dB, Directivity 30 dB, Average Power 500 W. Tags: Module with Connectors. More details for 3002-20 can be seen below.
Features
  • Frequency range: 0.95 to 2 GHz
  • Coupling Coefficient: 20 dB
  • Directivity: 30 dB
  • Insertion Loss: 0.20
  • VSWR: Line Max 1.15
  • Attenuation: 30 dB
  • Connector: N(f)- N(f) - N(f)
  • Directivity: 30 dB
  • Max. Frequency: 2 GHz
  • Min. Frequency: 950 MHz
  • Max. power: 500 Watt
