Advantest, R3261C

You are here: Spectrum Analyzer » Digital

Advantest, R3261C

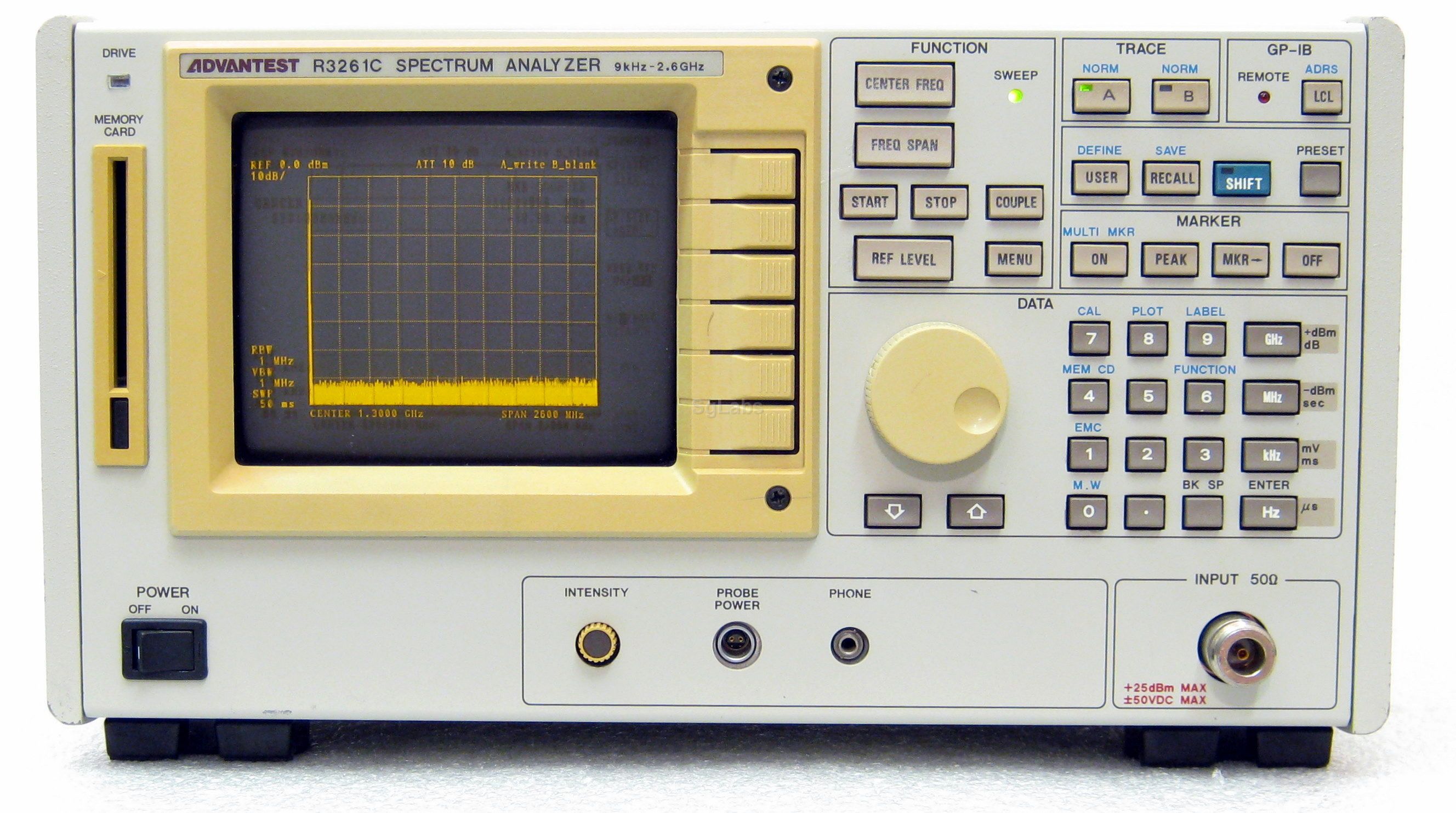

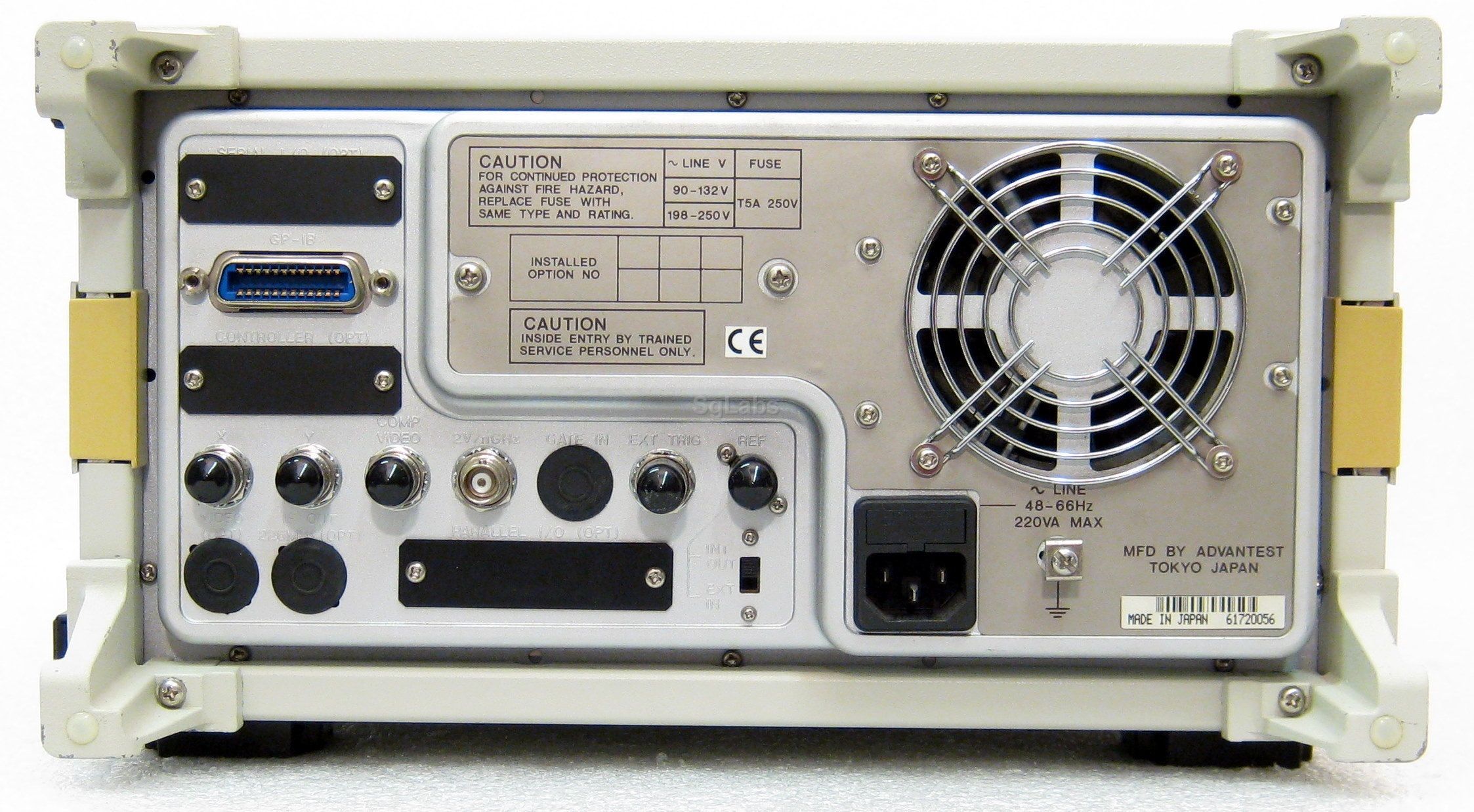

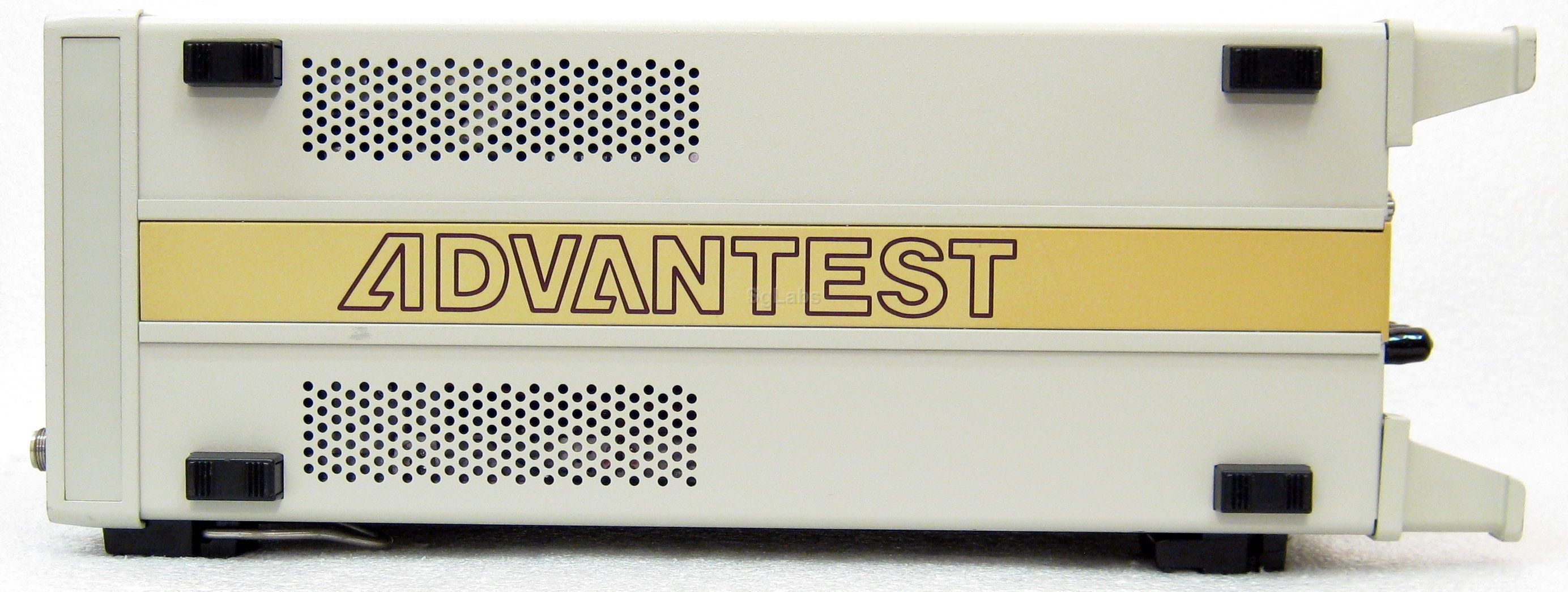

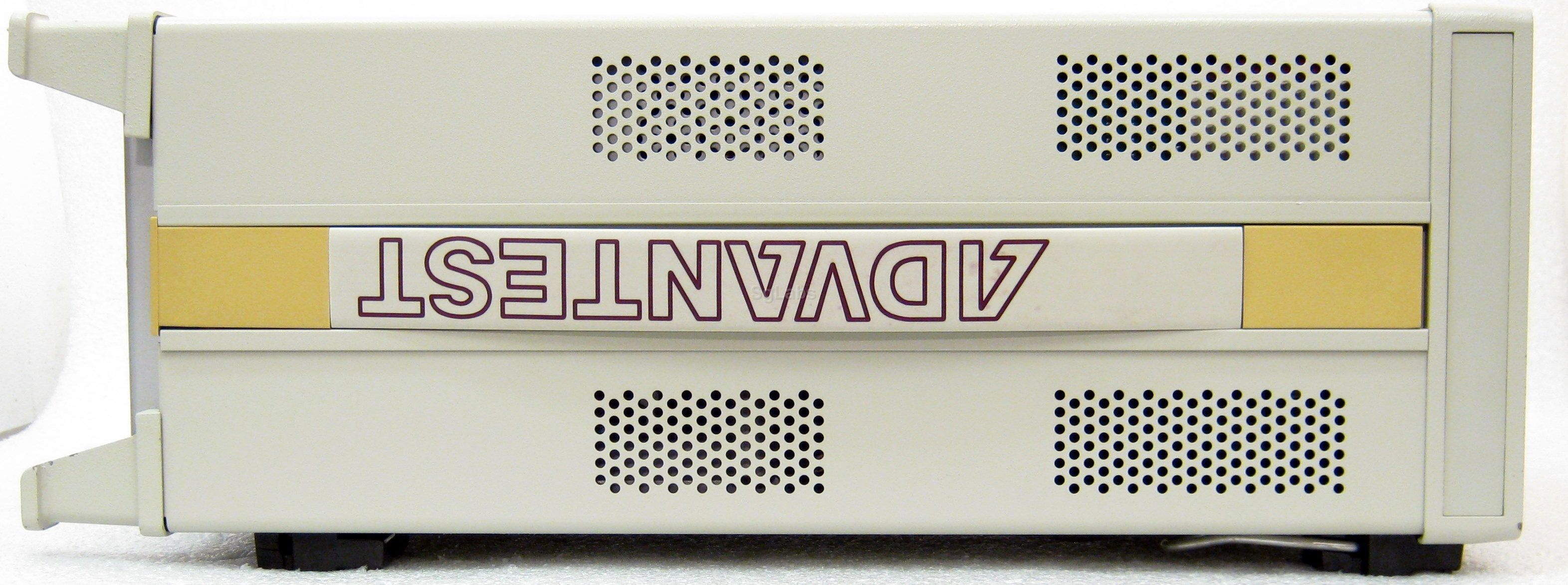

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Advantest R3261C Spectrum Analyzer also offers high performance functions such as a central frequency with a 1 Hz resolution, start/stop frequency setting and an internal frequency counter with a 1 Hz resolution.

Trace store modes and marker measurement modes simplify test measurements. A memory card reader is standard for storing setups, traces, and measurements. An internal demodulator provides sound to a front panel phone jack.

The Advantest R3261C Spectrum Analyzer has a full GPIB interface.
Features
  • Frequency range 9 KHz - 2,6 GHz
  • Frequency resolution 1 Hz
  • Max resolution RBW 30 HZ
  • Amplitude measuring range from -130 dBm to +25 dBm
  • Sweep time from 50 ms to 1000 s
  • Max. Frequency: 2.6 GHz
  • Min. Frequency: 9 kHz
  • Max. Level: 25 dBm
  • Min. Level: -130 dBm
  • Min. Resolution: 30 Hz
Price
 € 2.000,00
