Anritsu, MT8222A

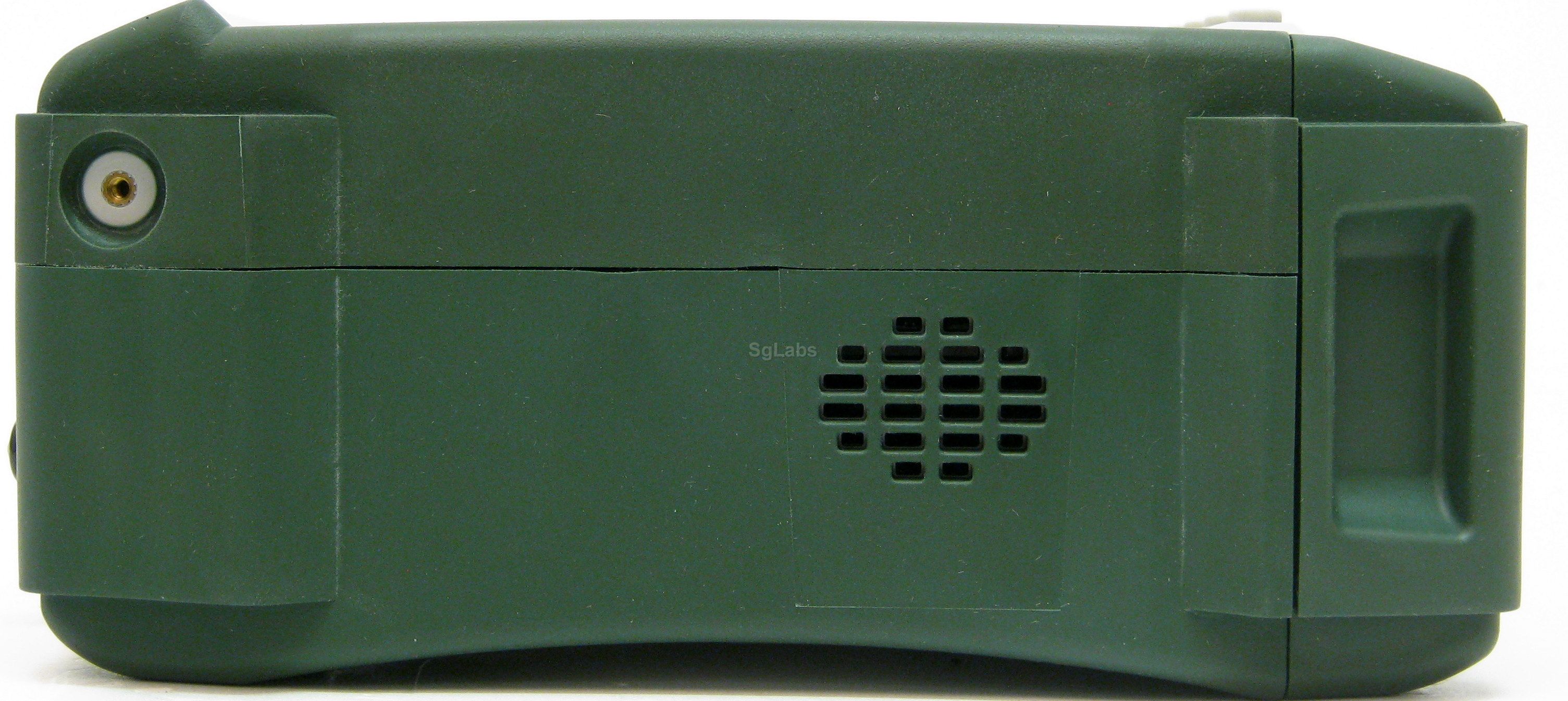

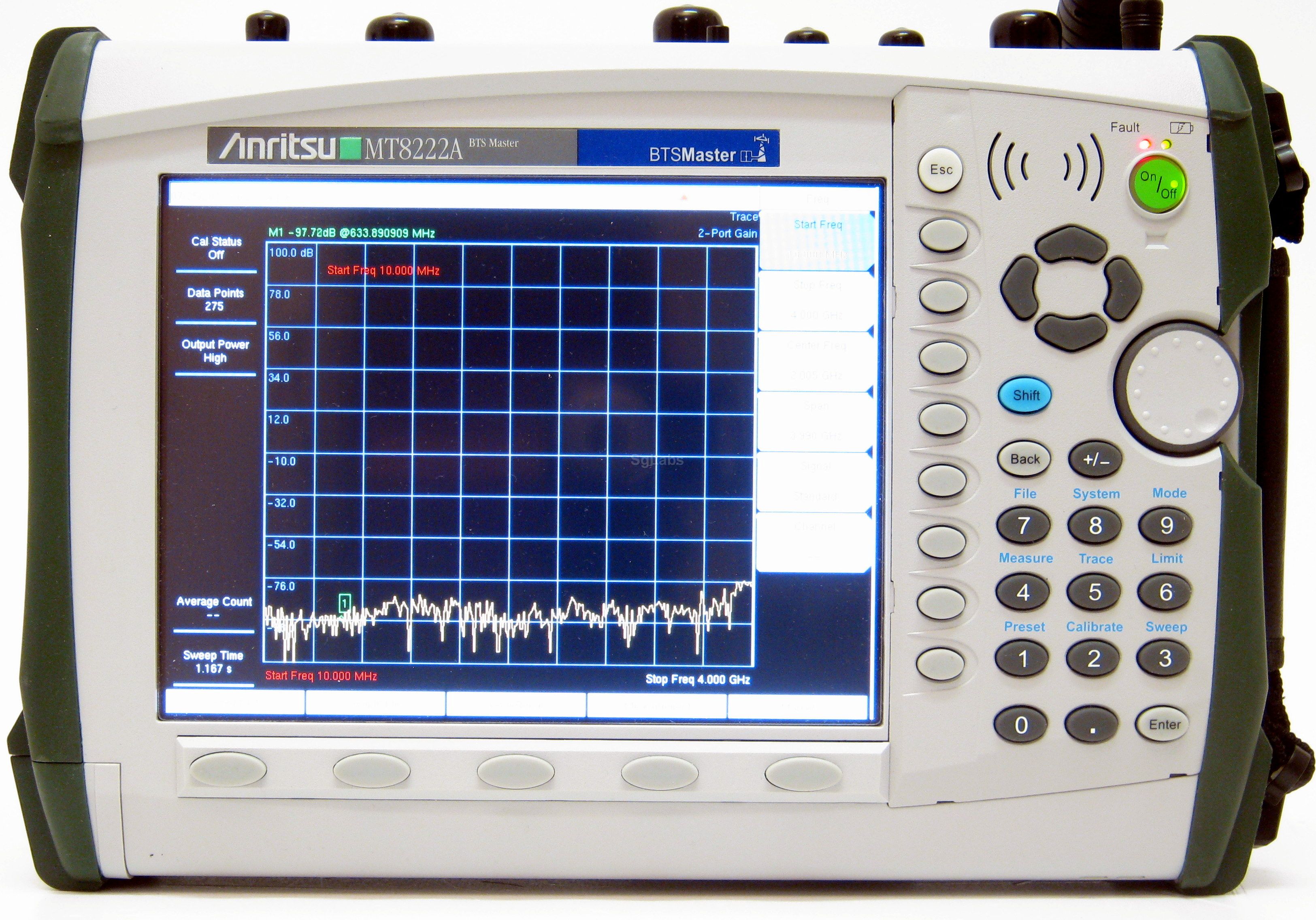

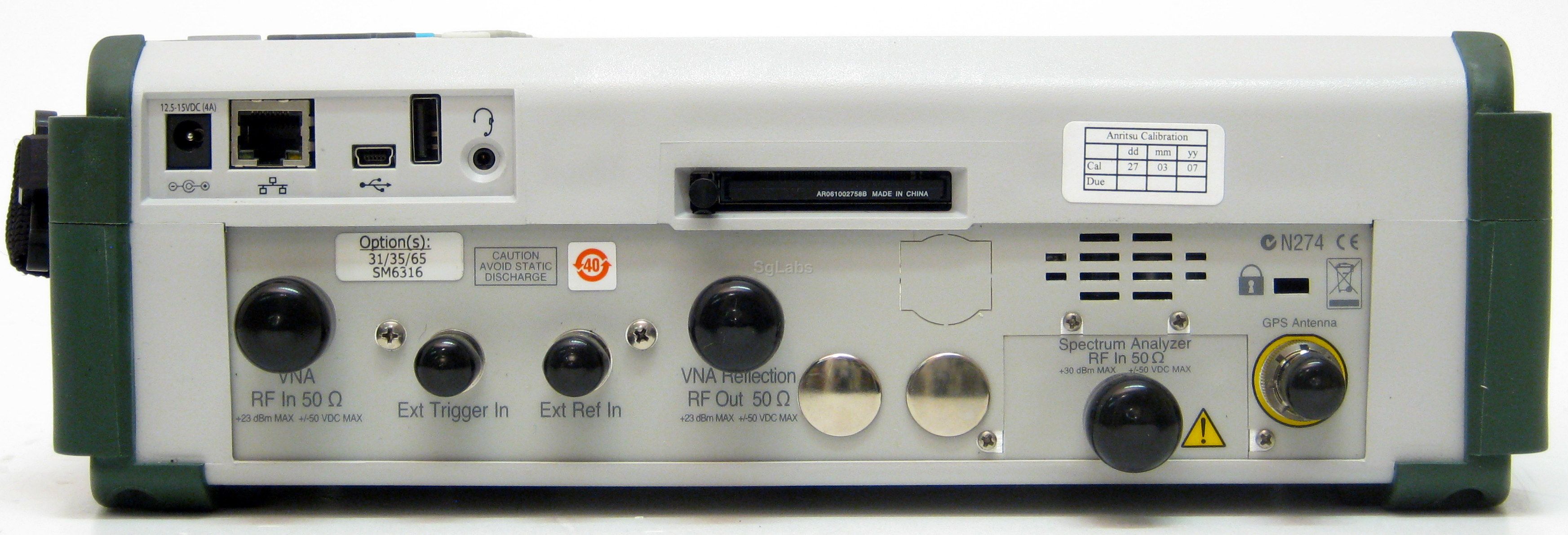

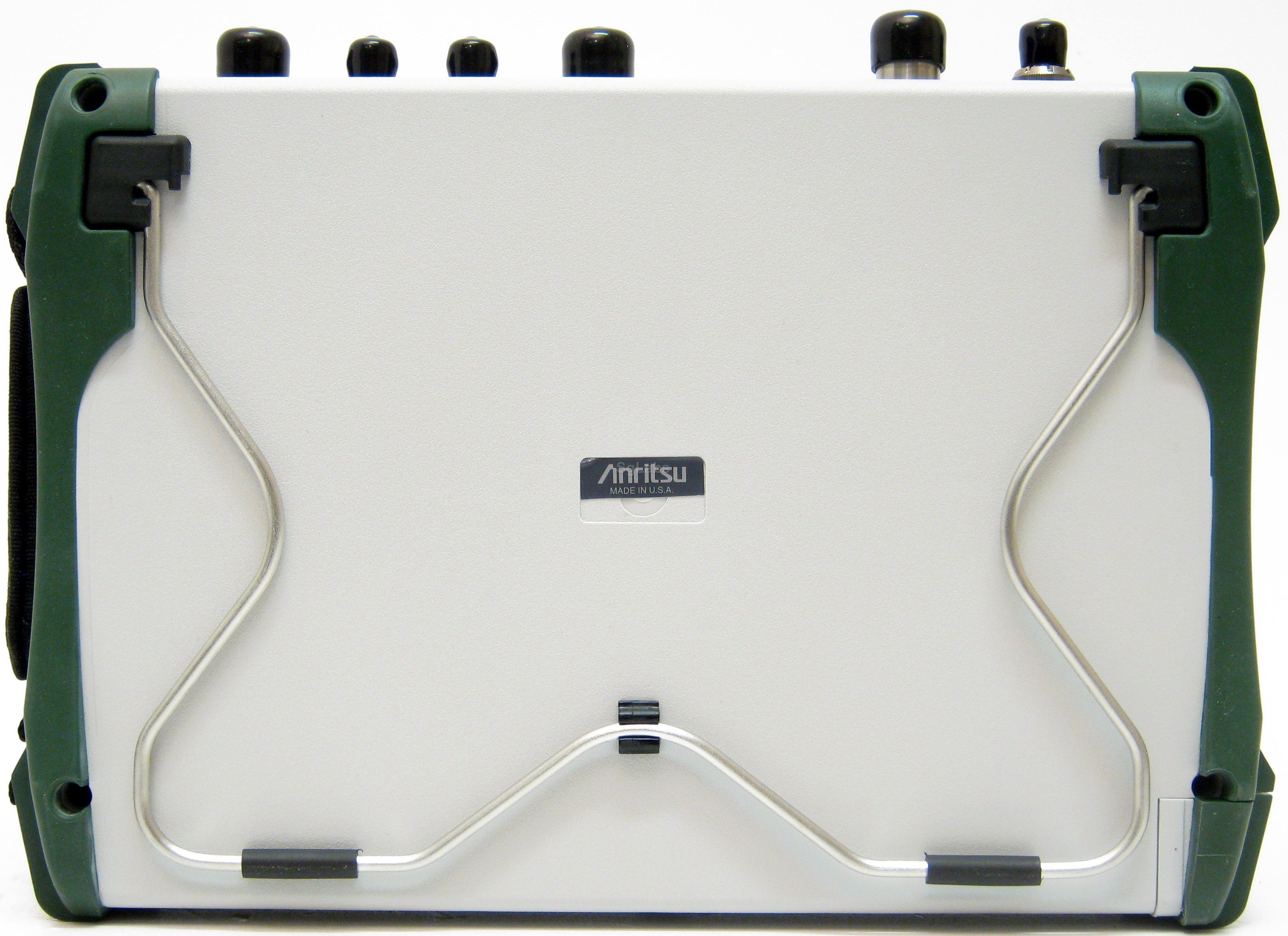

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The MT8222A provides users with cable and antenna analysis, spectrum analysis, power meter, W-CDMA/HSDPA, GSM/GPRS/EDGE, CDMA/EVDO, Fixed WiMAX, Mobile WiMAX and TD-SCDMA, RF and Demod measurements and W-CDMA/HSDPA CDMA/EVDO, Mobile WiMAX and TD-SCDMA Over the Air (OTA), channel scanner, Interference Analyzer, variable Bias Tee, Bit Error Rate Tester (BERT) and Power Monitor.
BTS Master MT8222A combines the functionality of Anritsu’s high performance-handheld products, including the MS2721B Spectrum Master and the MS2024A and MS2026A Cable and Antenna Analyzer. This combined product weighs less than 4 kg.
Features
  • Spectrum Analyzer 100 kHz to 7.1 GHz
  • 2 port Cable & Antenna Analyzer 10 MHz to 4 or 6 GHz (opt.026)
  • High Accuracy Power Meter ±0.16 dB
  • 4 kg (9.0 lbs)
  • Bit Error Rate Tester E1, T1 & T3
  • Interference Analyzer
  • Channel scanner
  • GPS receiver option (opt.31)
  • W-CDMA/HSDPA (opt.35)
  • W-CDMA/HSDPA demodulation (opt.65)
  • Connector: N
  • Max. Frequency: 7.1 GHz
  • Max. Frequency: 4 GHz
  • Min. Frequency: 100 kHz
  • Min. Frequency: 10 MHz
  • Channels: 2
  • Measure: ROS
