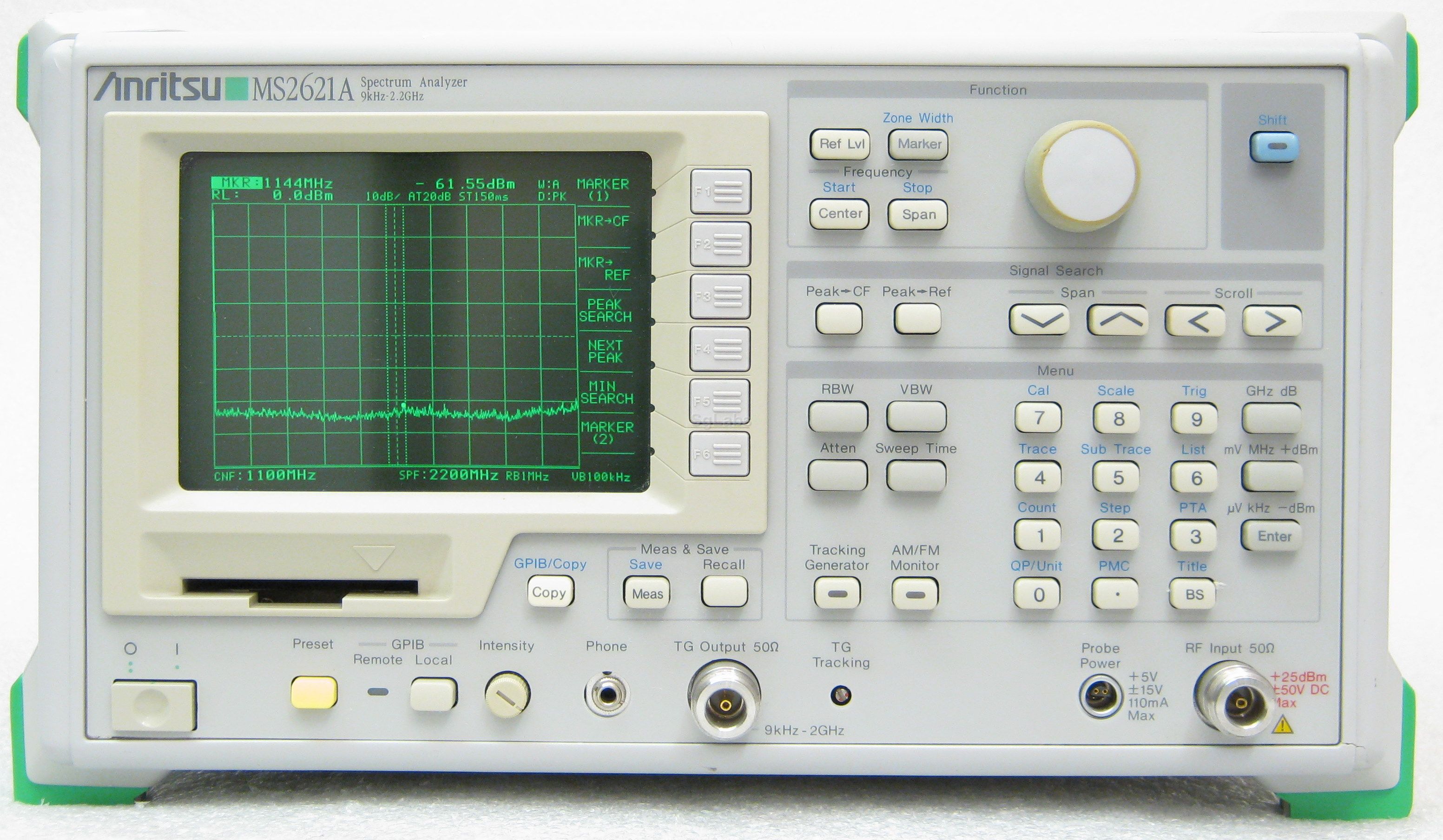

Anritsu (Wiltron), MS2621A

You are here: Spectrum Analyzer » Digital

Anritsu (Wiltron), MS2621A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Technical details:

  • Frequency range 9 KHz - 2,2 GHz
  • Frequency resolution 1 Hz
  • Max resolution RBW 30 HZ
  • Output level range of Tracking generator from 0 dBm to -50 dBm
  • Sweep time from 50 ms to 1000 s
  • AM/FM demod
  • Spurious harmonic measurement
  • OBW: Occupied Bandwidth
  • Opt.1 : Tracking generator
  • Demodulator: AM/FM
  • Max. Frequency: 2.2 GHz
  • Min. Frequency: 9 kHz
  • Max. Level: 25 dBm
  • Min. Resolution: 30 Hz
