Anritsu (Wiltron), MS8609A

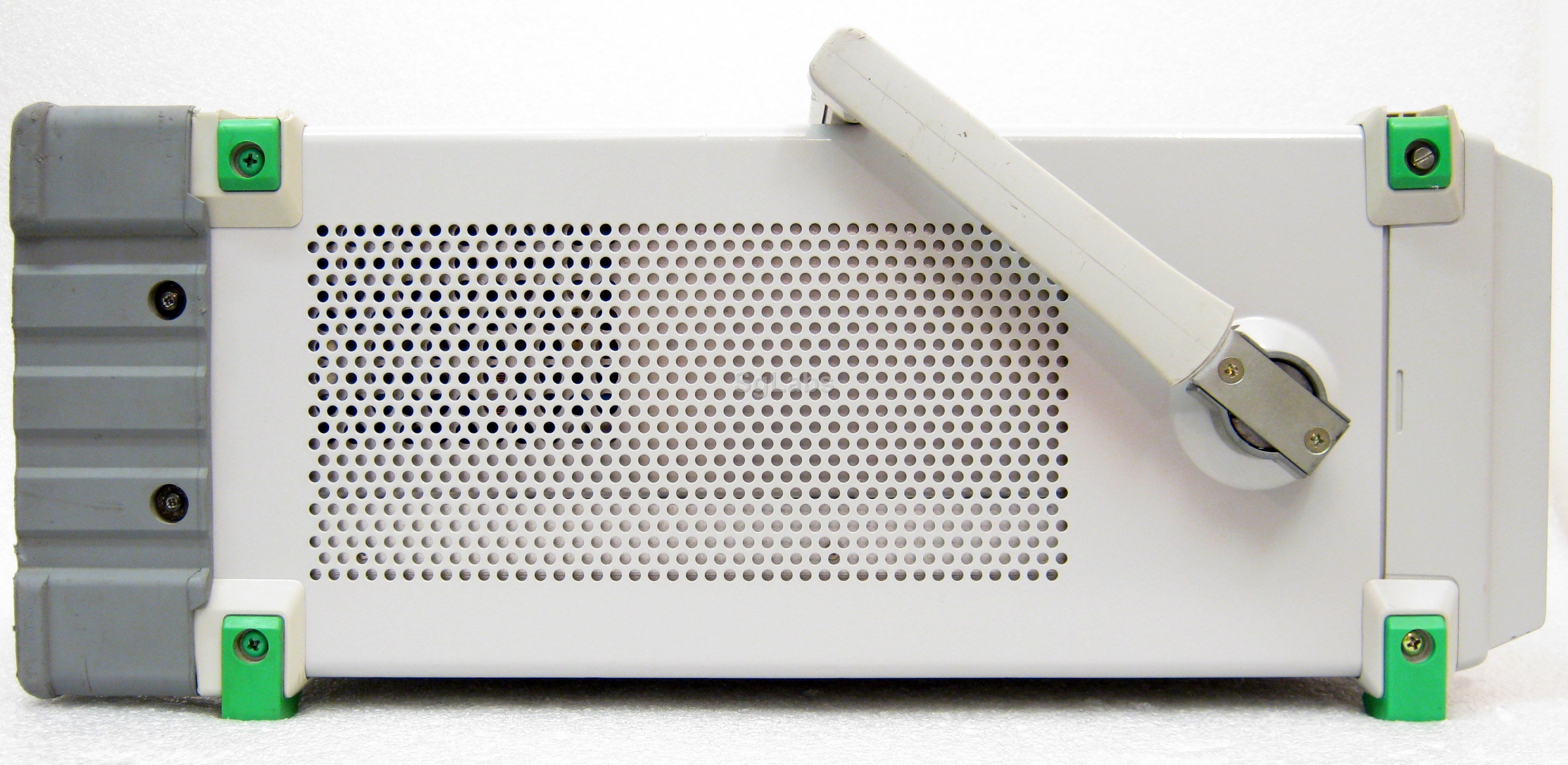

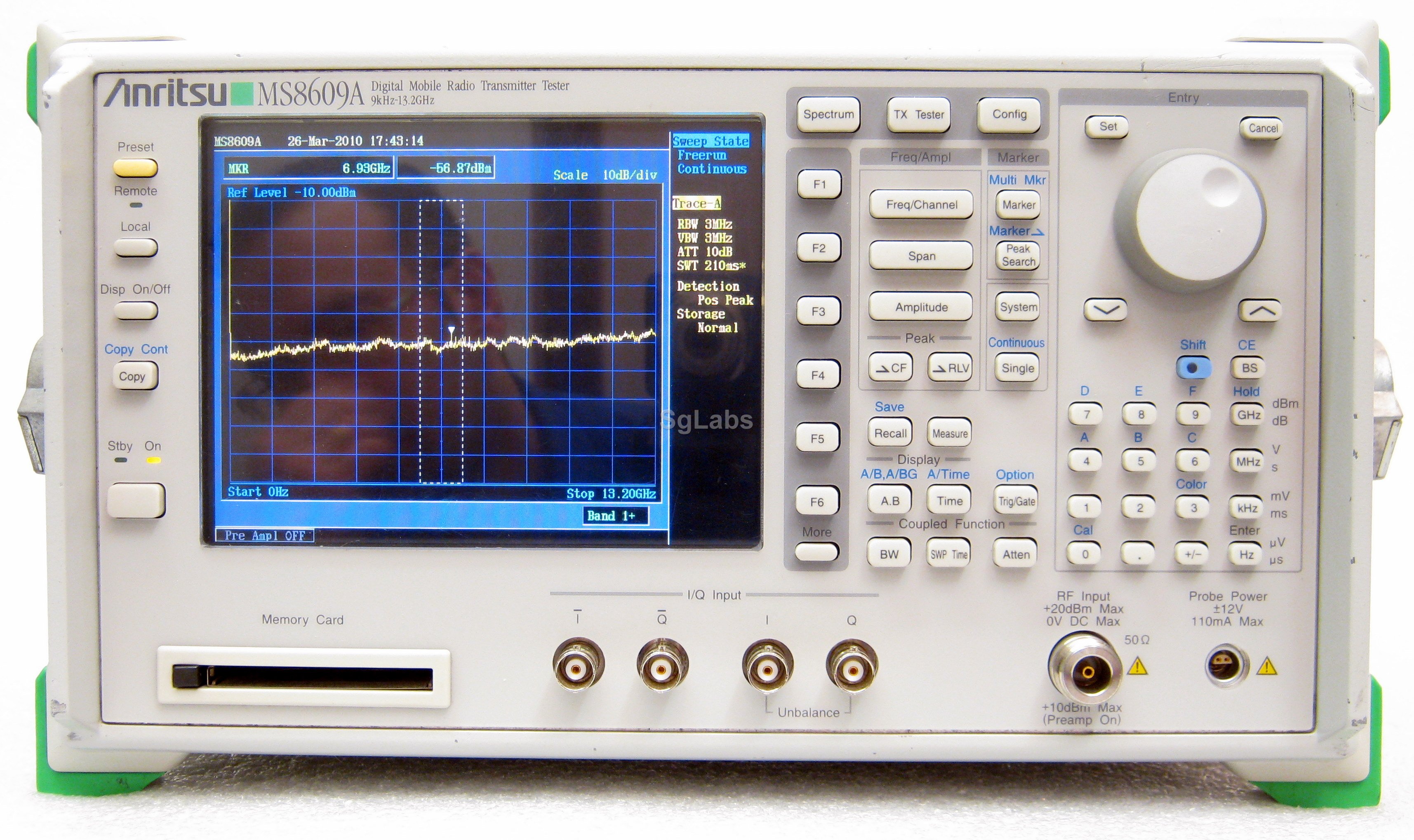

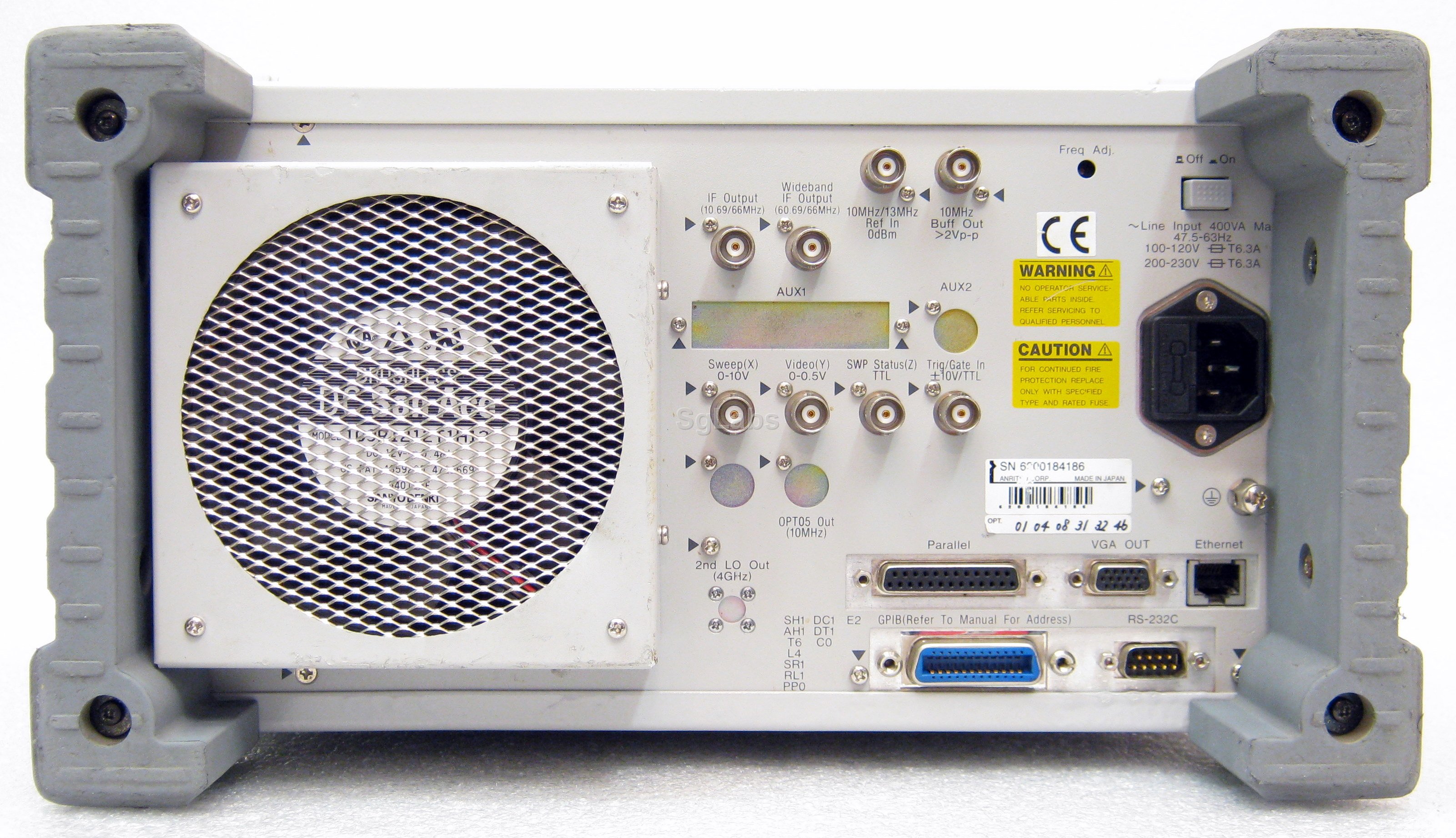

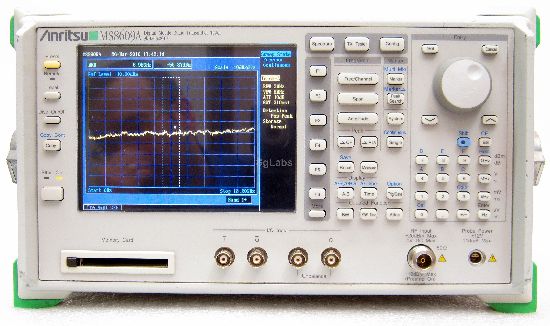

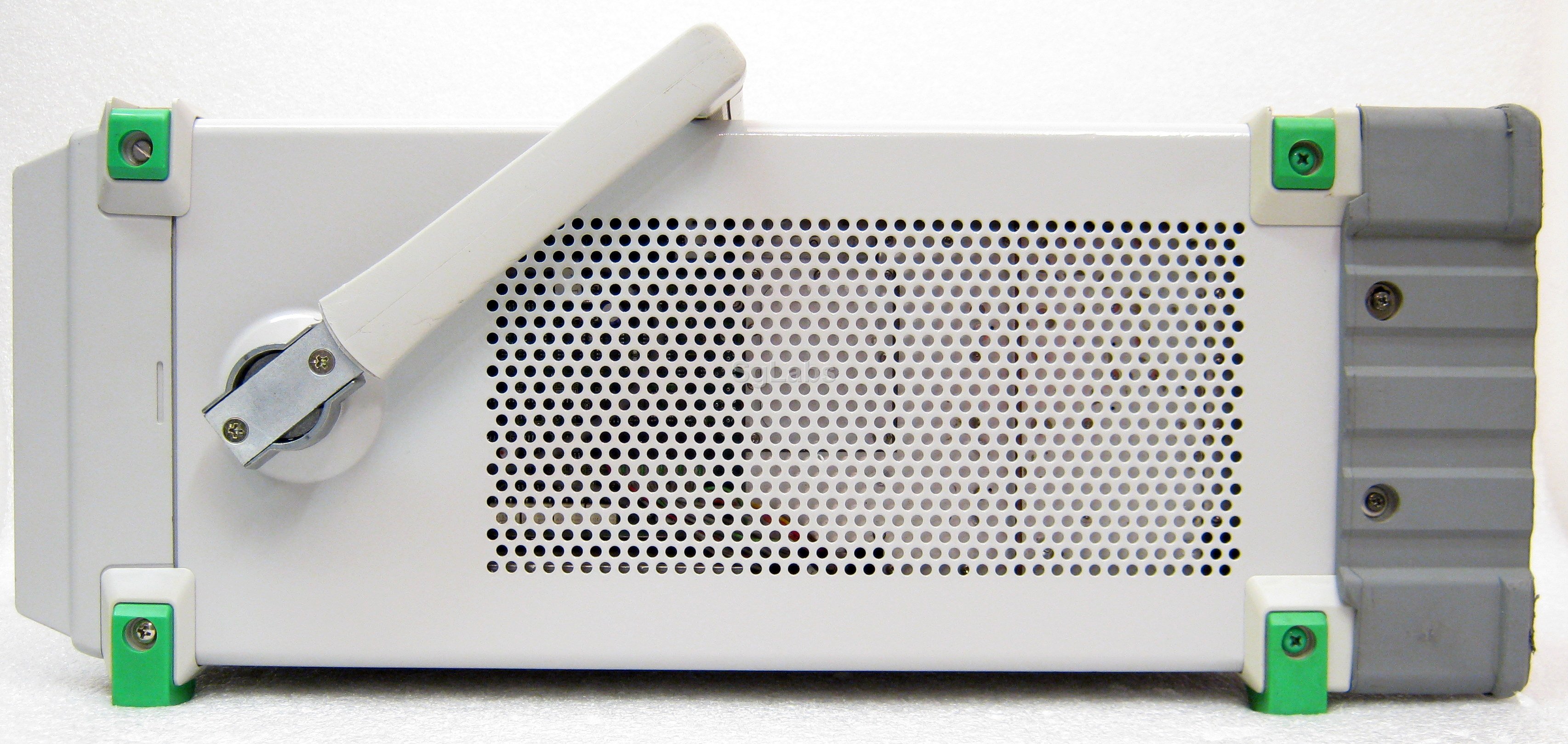

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
  • Excellent performance for evaluating W-CDMA modulation signals. This makes it ideal for the development and manufacture of W-CDMA radio transmitters (base station and mobile).GSM/EDGE HSDPA, WLAN/802.11, CDMA, 1xEVDO, and Pi/4DQPSK (PHS, PDC, IS-136) measurements are also supported.
  • The built-in spectrum analyser (standard) covers a resolution bandwidth of up to 20 MHz. It is ideal for evaluating devices such as base station power amplifiers, due to its wide dynamic ranges of 68 dB (typical for 5 MHz offset) and 75 dB (typical for 10 MHz offset) for adjacent channel power (ACP) measurement (sweep method). A new average detection mode permits high-accuracy measurement of signal power with this noise-like spreading modulation.
  • The built-in power meter (standard) integrates an amorphous power sensor for high-accuracy (+-0.4 dB) power measurements.
Features
  • Frequency range: 9 kHz to 13.2 GHz
  • Resolution bandwidth: 300 Hz to 3 MHz, 5 MHz, 10 MHz, 20 MHz (to 3 GHz)
  • Frequency span: Zero, 1 kHz to 13.2 GHz
  • Span accuracy: ±1%
  • Reference frequency accuracy: ±2 x 10–8/day, ±5 x 10–10/day (option)
  • Maximum input level: +20 dBm
  • Input attenuator: 0 to 62 dB (2 dB steps)
  • 1 dB gain compression: +3 dBm (≥500 MHz)
  • Two tone 3rd order distortion: ≤–85 dBc (0.1 to 3.2 GHz)
  • Frequency span: 10 ms to 1000 s
  • Time span: 1 μs to 1000 s
  • Refresh rate: >20 times/s
  • Dynamic range spectrum analyzer: included
  • Max. Frequency: 13.2 GHz
  • Min. Frequency: 9 KHz
Price
 € 2.900,00
