Dranetz Xplorer PX5 3-phase Power Quality Analyzer

You are here: POWER METER » 3 PHASE

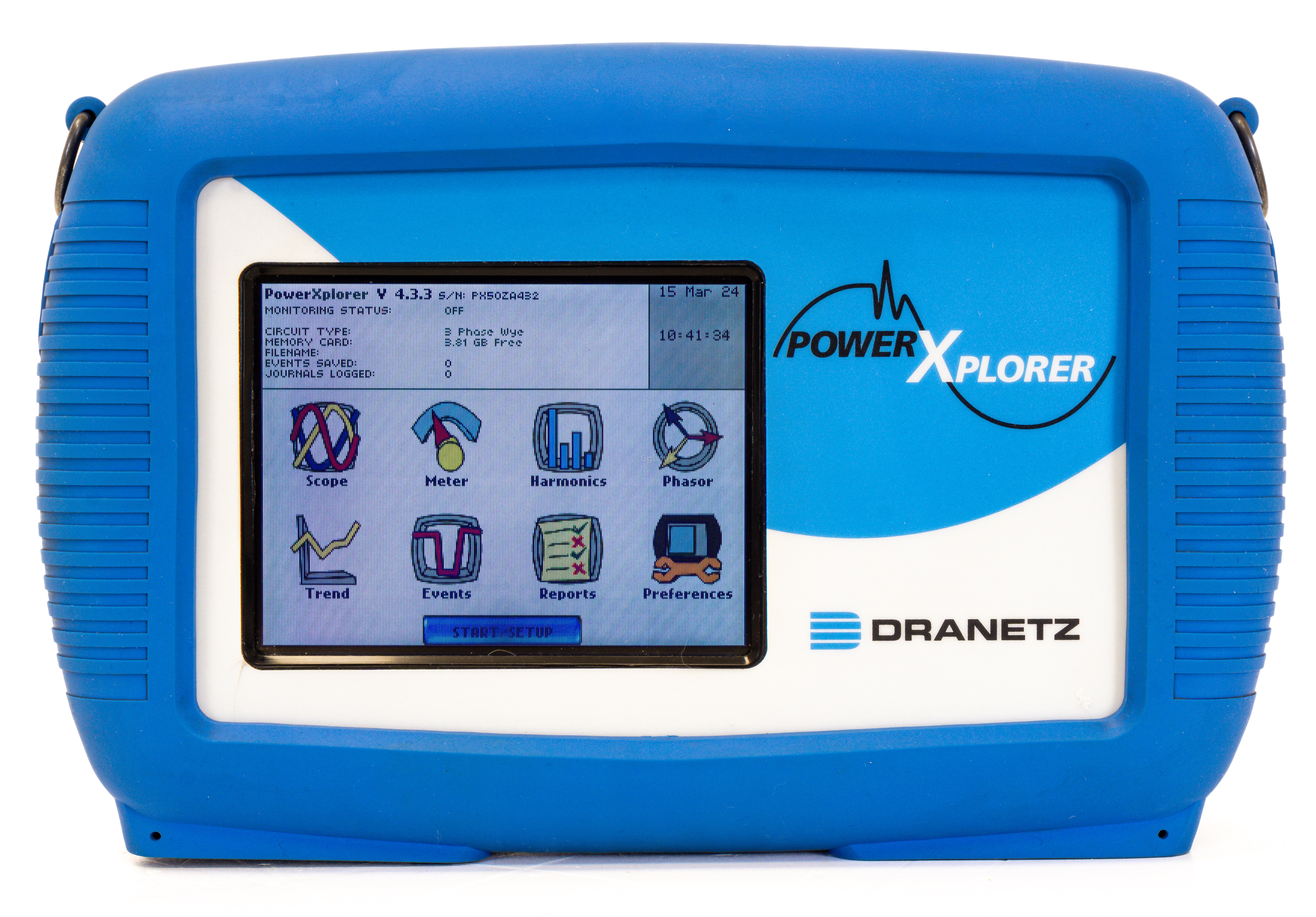

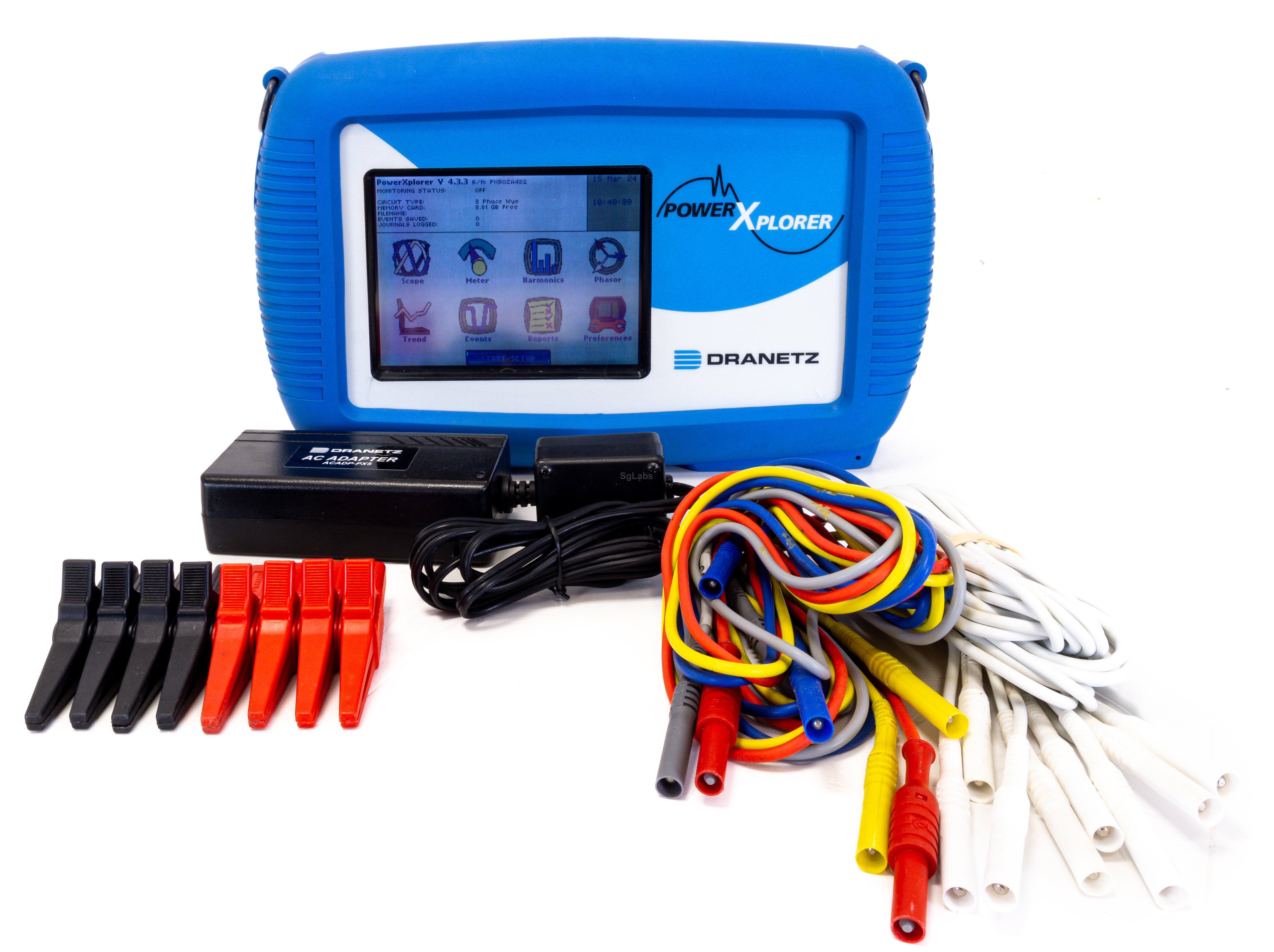

Dranetz Xplorer PX5 3-phase Power Quality Analyzer

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

The Power Xplorer integrates the most advanced feature set available in a power monitoring instrument, with an easy-to-navigate, color graphical user interface. With high-speed sampling and data capture (1 microsecond/channel), this 8-channel workhorse simultaneously captures and characterizes thousands of parameters, using a range of standard and customizable operating modes. The unique measurement capabilities of the Power Xplorer include capture of low-medium-high frequency transients through peak, waveshape, rms duration and adaptive high-speed sampling, as well as power measurements to clearly characterize voltage harmonics, non-sinusoidal and unbalanced systems.

Features

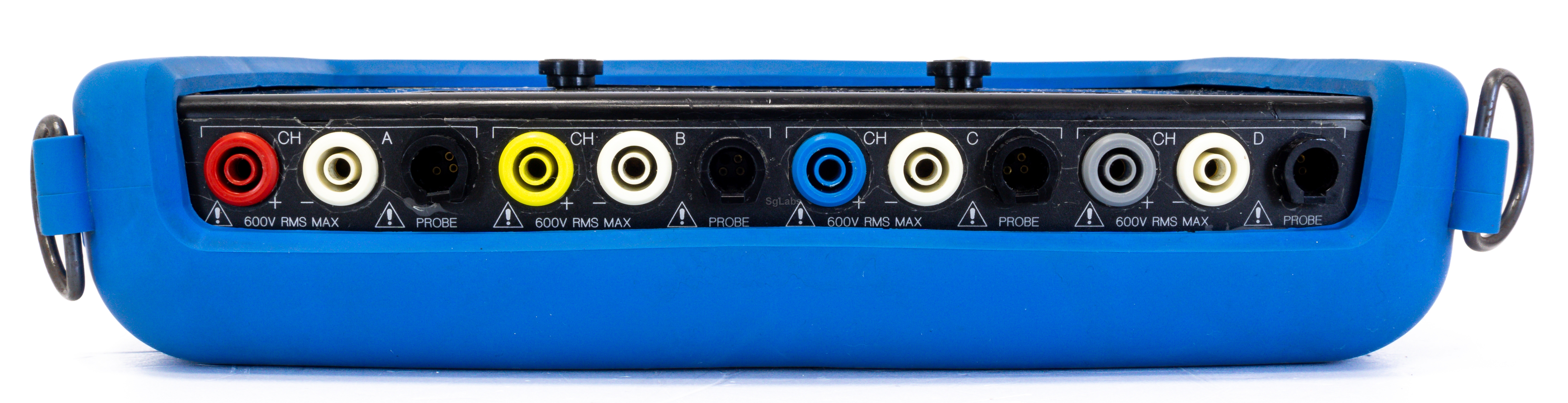

Eight channels, 4 voltage & 4 current

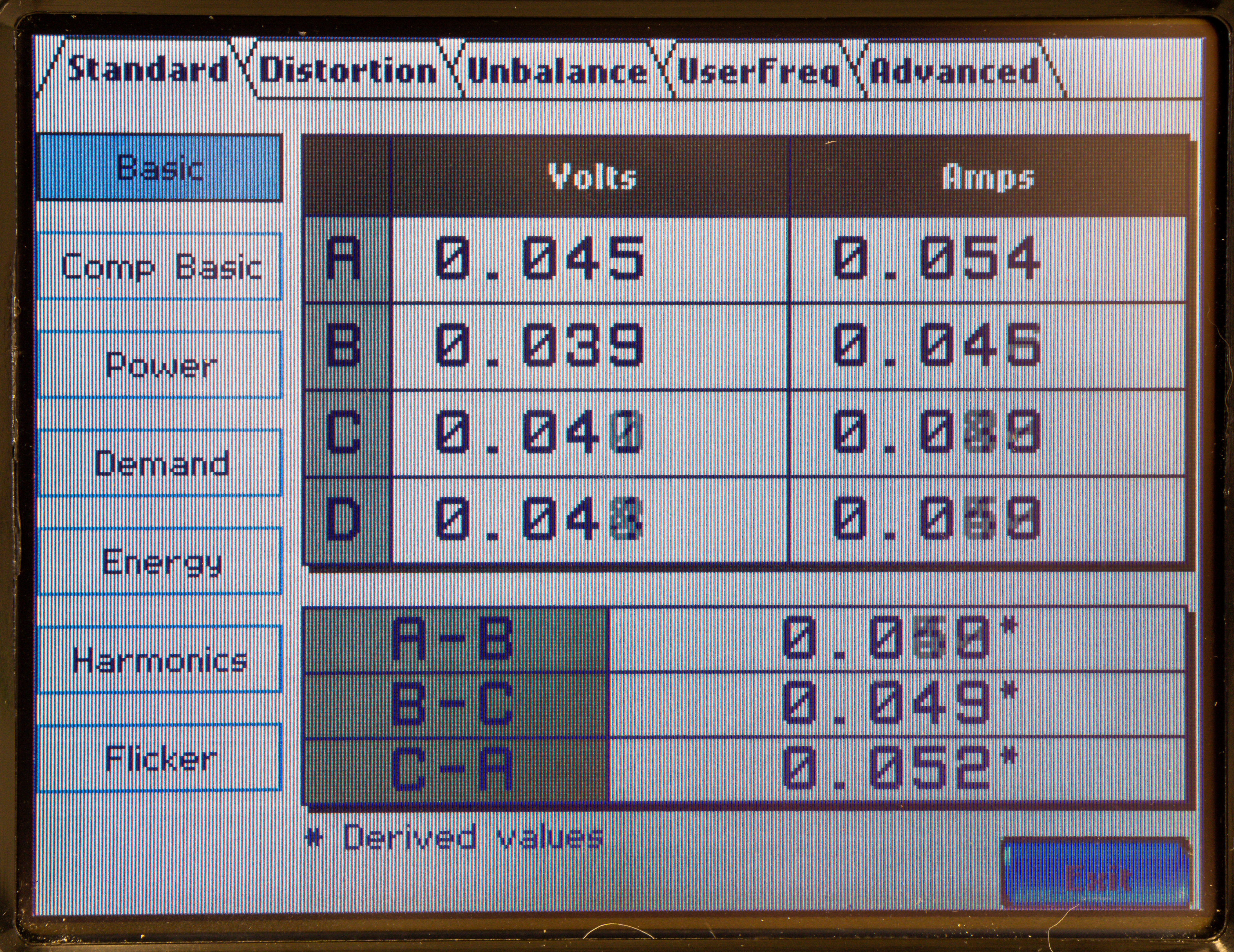

Intuitive color touch screen
Light weight — About 4 pounds, 2 kg — with rugged rubber boot
AC/DC applications
Samples at 256 samples/cycle
Independent voltage & current triggering, cross triggering
High-speed sampling and data capture (1 microsecond/channel)
Oscilloscope-like high speed transient detection (Dranetz 658-like and BMI-8800 like)
Detailed event characterization of RMS variations and transients
THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd at 50/60 Hz
Captures IEEE 1459 parameters for non-sinusoidal and advanced power systems
Battery or AC mode
Built in UPS battery with external charger
Available with up to 4 GB Compact Flash Memory
Available languages — English, French, Italian, German, Spanish, Swedish, Polish, Thai, Korean, Finnish, Japanese, Chinese (Traditional and Simplified)
DranView 7 compatible
Measures flicker according to IEC 61000-4-15
Complies with IEEE 1159, IEEE 519, IEEE 1453
Complies with IEC 61000-4-30 Class A and EN50160
