EIP, 545B

You are here: Frequency Counter » Up to 18 GHz

EIP, 545B

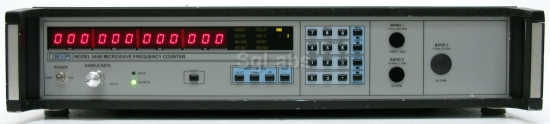

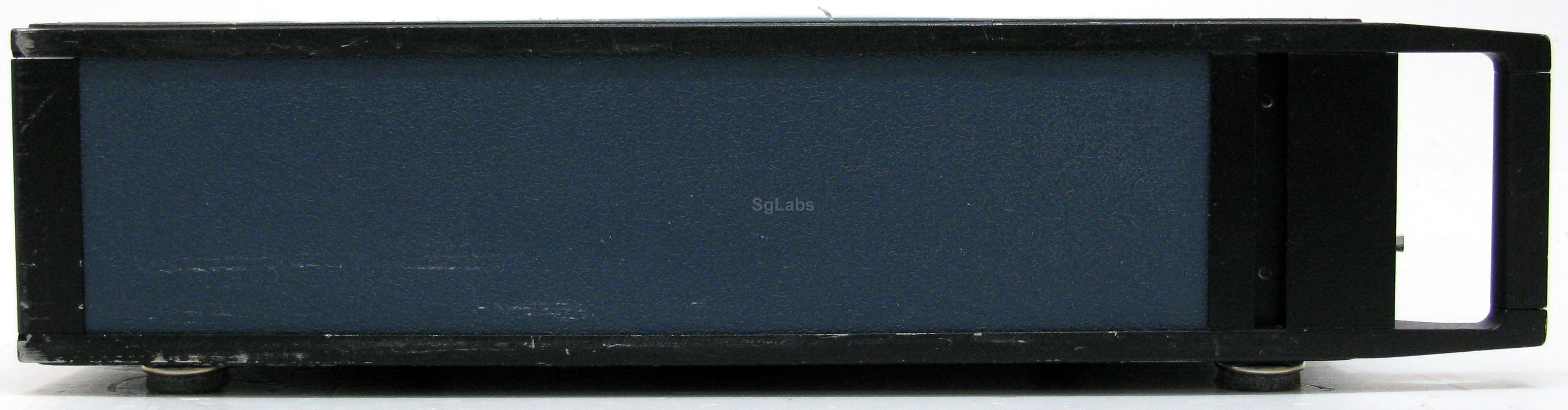

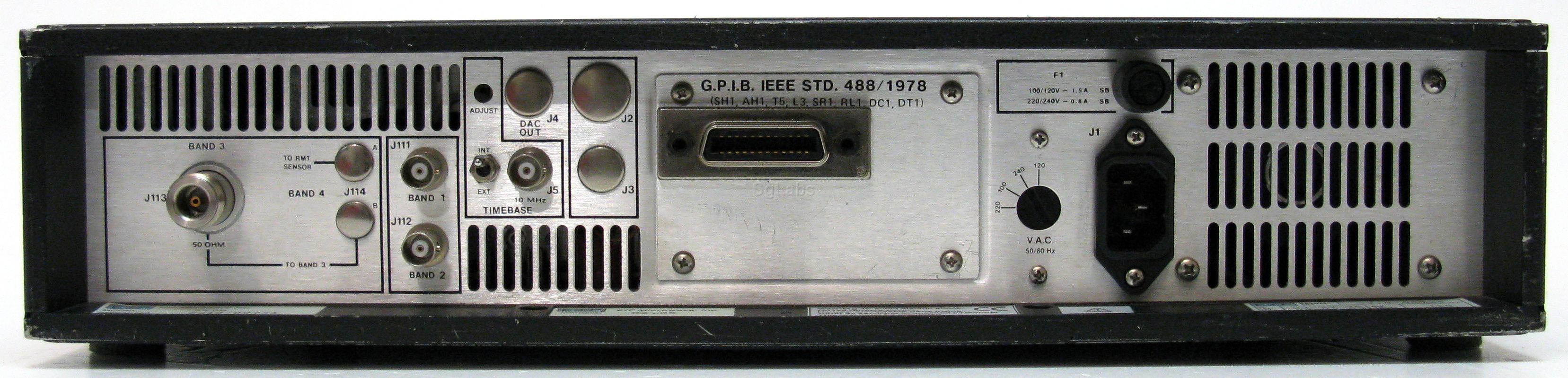

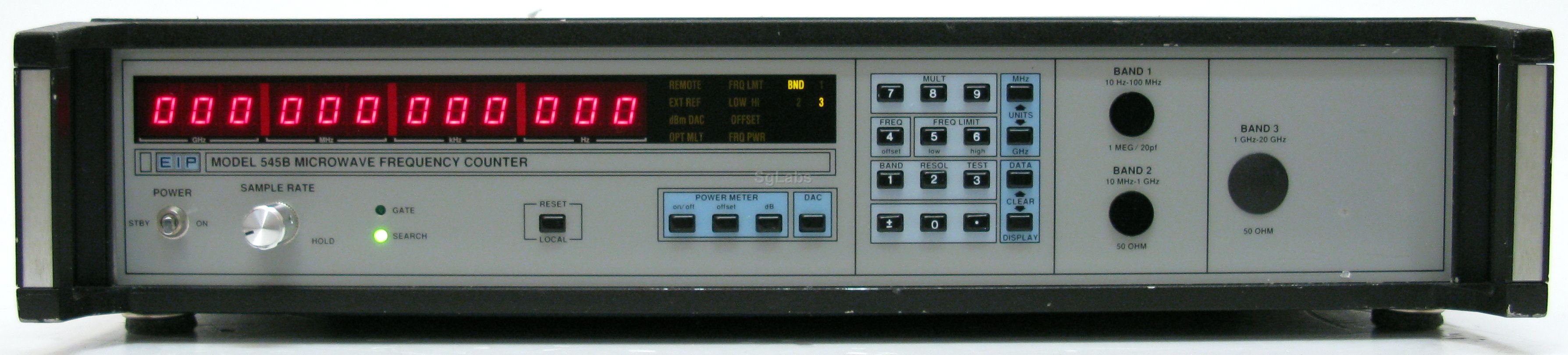

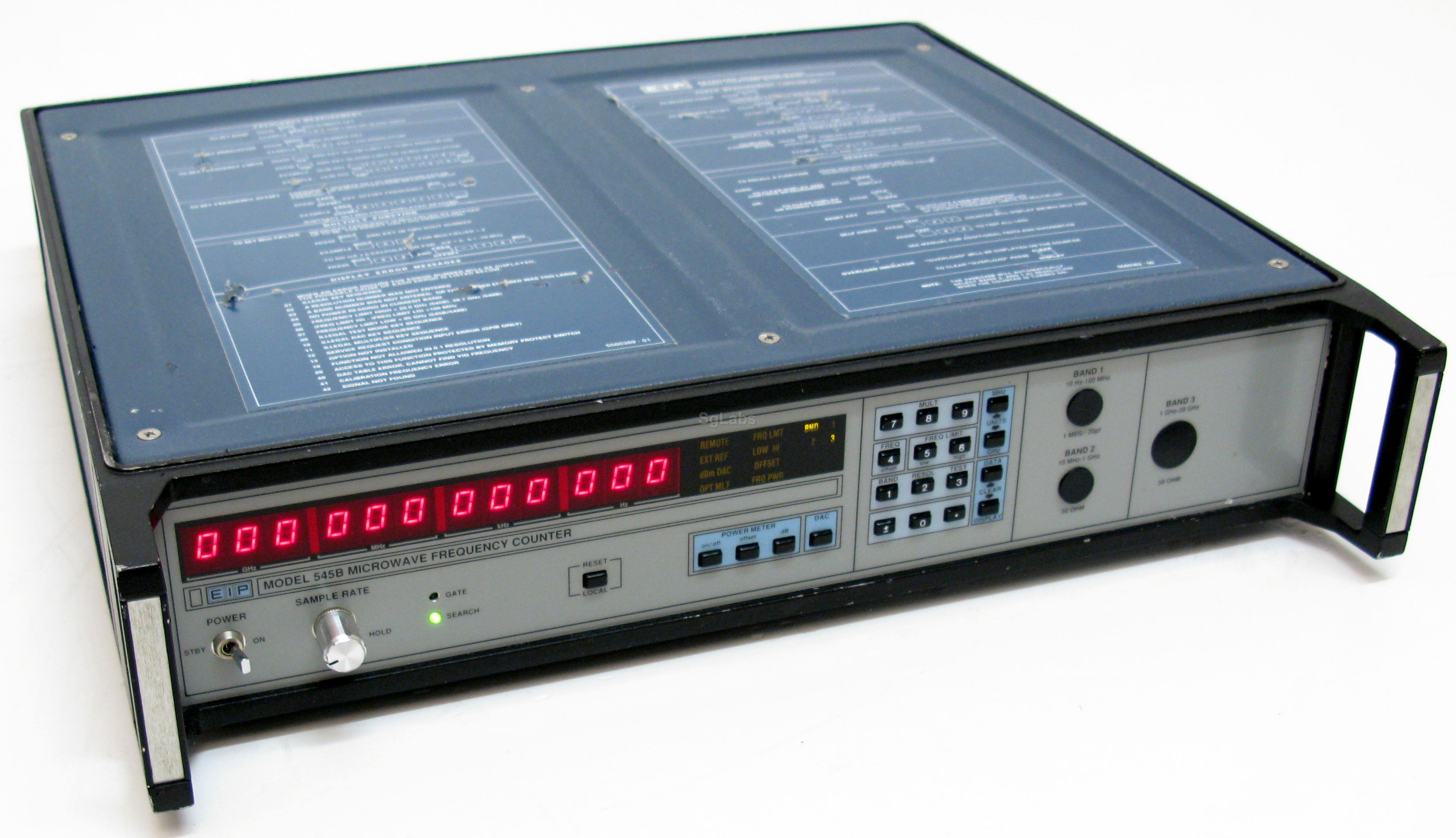

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Phase Matrix/EIP 545B/548B family of Full Function CW Microwave Frequency Counters with Selective Power Measurement The combination of accuracy, simple operation, and the widest range of standard features and options available in a microwave counter makes the Phase Matrix 545B/548B family the best choice for your R&D lab or production test bench
Features
  • Frequency Range Band 1: 10 Hz to 100 MHz Band 2: 10 MHz to 1 GHz Band 3: 1 GHz to 20 GHz (545B) or 26 GHz (548B). 548B expandable to 110 GHz.
  • Sensitivity Band 1: 25 mV RMS Band 2: -20 dBm Band 3: -30 dBm to 12.4 GHz, -25 dBm to 20 GHz, -20 dBm to 26.5(548B)
  • Acquisition Time Normal Mode : 200 ms Center Frequency Mode: 20 ms
  • Keyboard controlled frequency limit selection
  • Power Measurement to 0.1 dB resolution
  • Power Measurement accuracy to ±0.5 dB typical
  • 200 Watt (+53 dBm) peak damage protection
  • 10 dB automatic amplitude discrimination
  • Up to 800 MHz/sec tracking speed
  • 20 MHz P-P FM tolerance up to a 10 MHz rate
  • Max. Frequency: 20 GHz
  • Min. Frequency: 10 Hz
  • Sensibility: -20 dBm
Price
 € 930,00
