Fluke Philips PM6680 Timer - Counter - Frequency meter

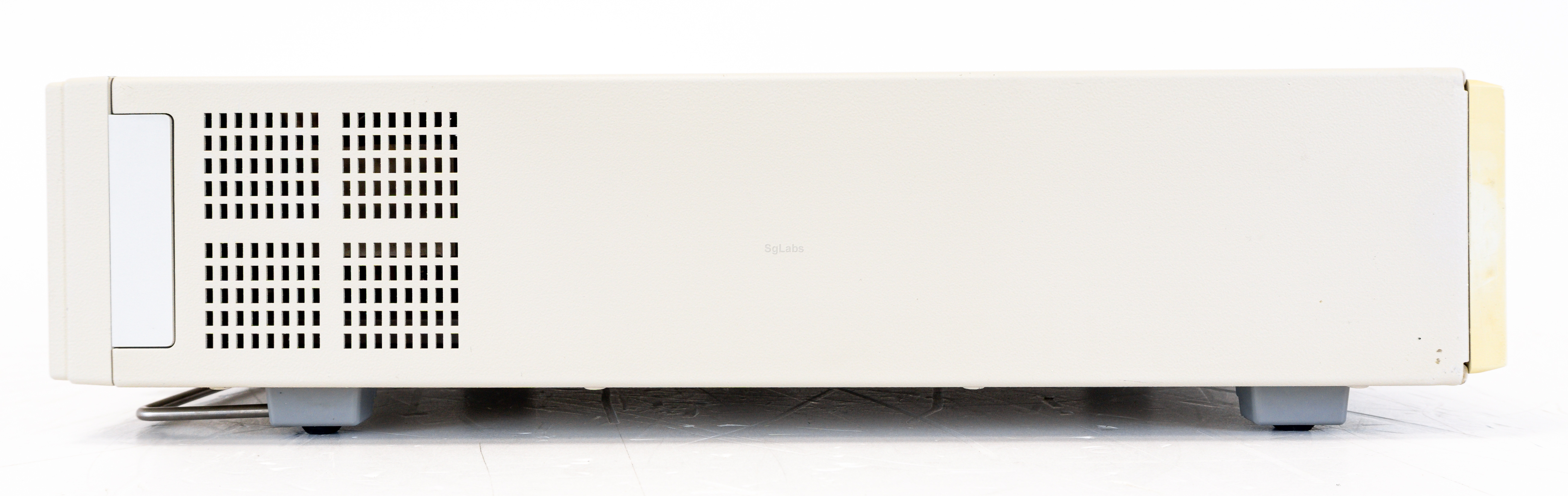

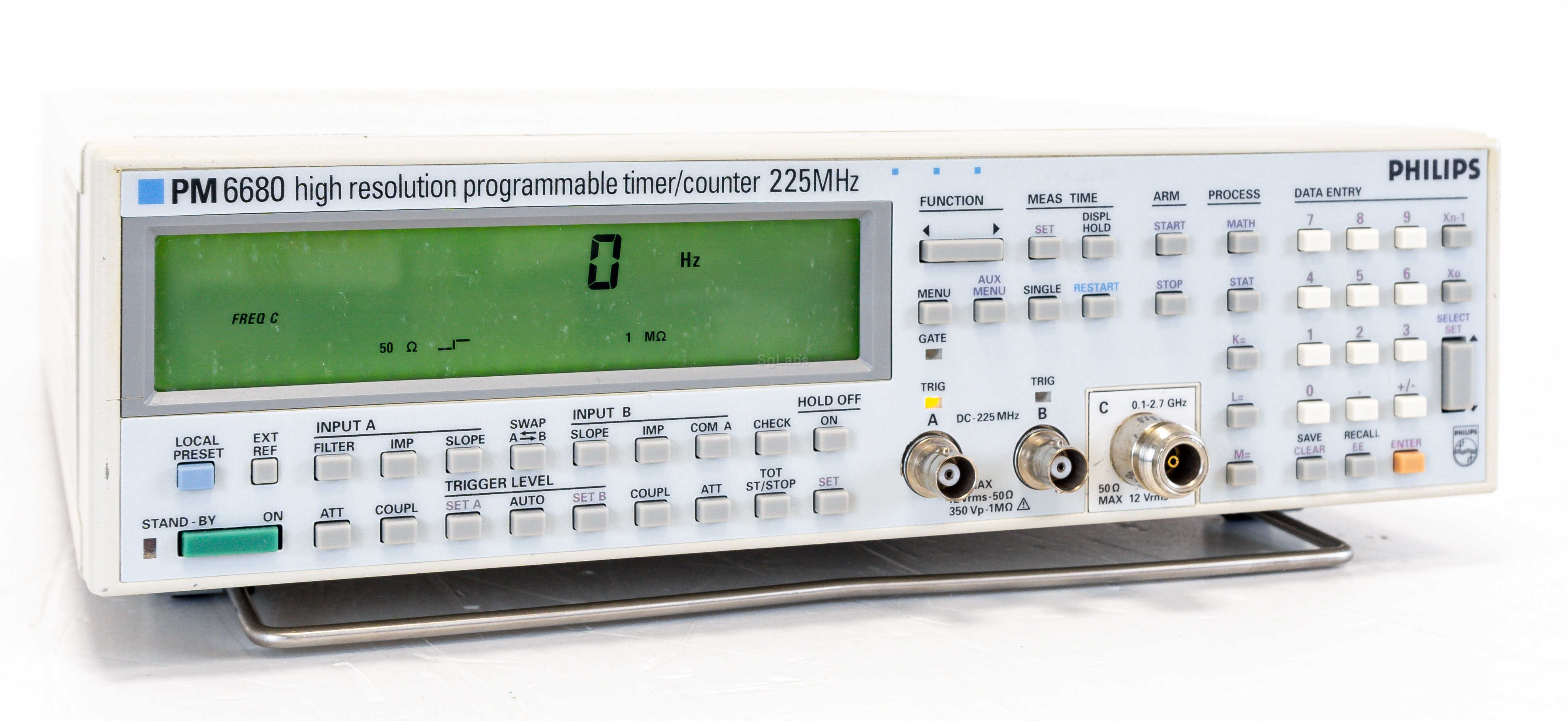

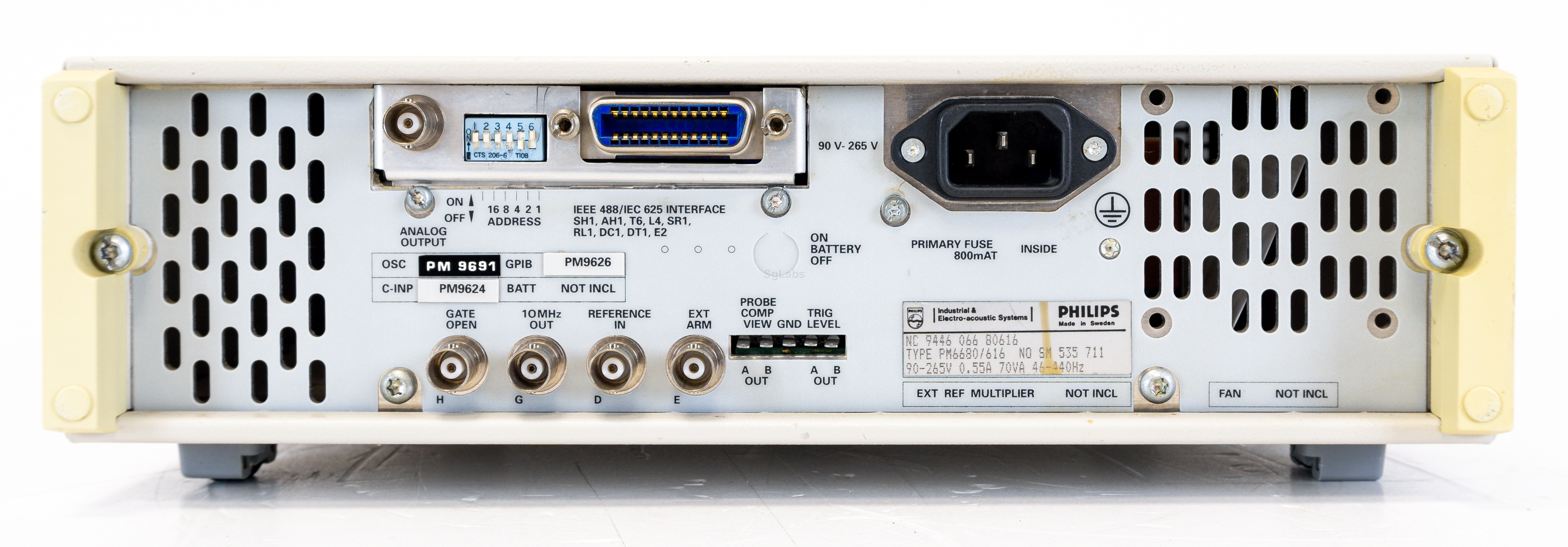

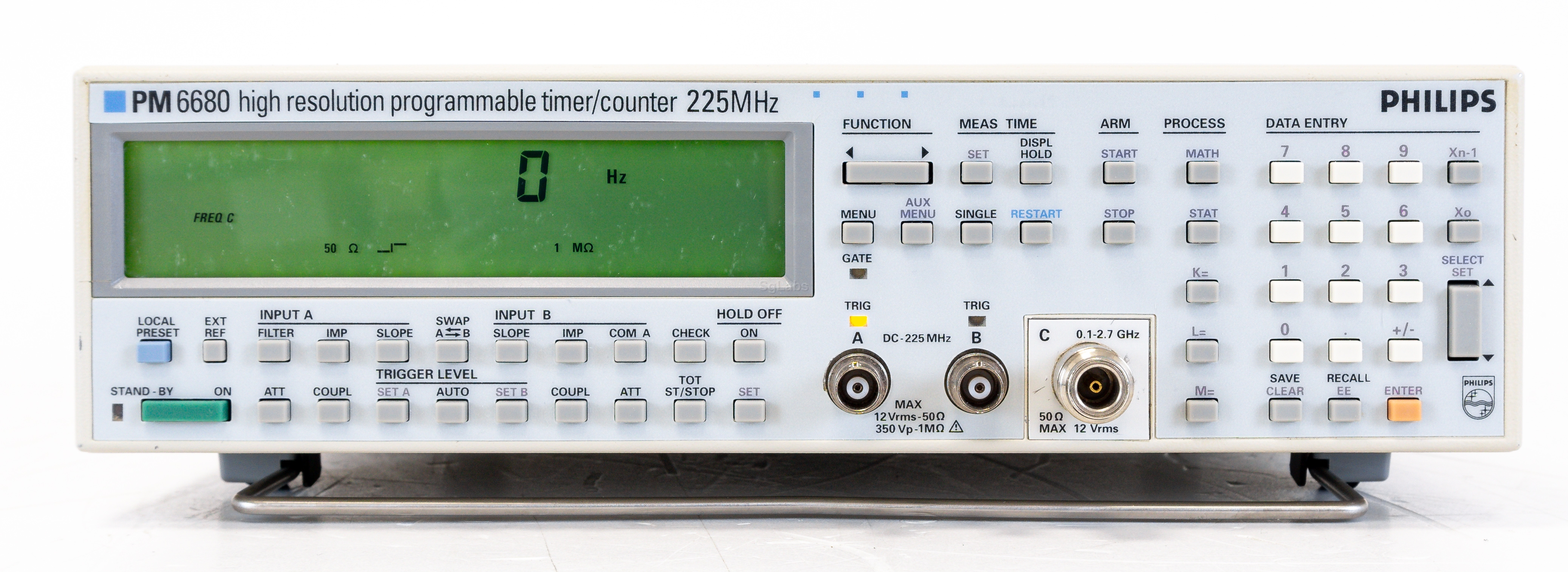

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Reciprocal counters are excellent at making measurements of frequency bursts. The PM 6680's advanced capabilities make it a truly exceptional product for use in these applications. In this application, the customer needed to profile a two-tone burst used in sonar applications. The burst consisted of 4 ms at 10 kHz followed immediately by 6 ms at 20kHz. The PM 6680  can be used to characterize any part of the burst. Other techniques are available for measuring repetitive bursts, also providing additional information such as pulse repetition factor and burst length.
Features
  • Chanel A: DC-225MHz
  • Chanel B: DC-225MHz
  • Chanel C: 100-2700 Mhz
  • 10 digit/S
  • Max. Frequency: 2.7 GHz
  • Min. Frequency: DC
  • Channels: 3
  • Sensibility: 20mv < 100Mhz
