HP Agilent Keysight, 11850A

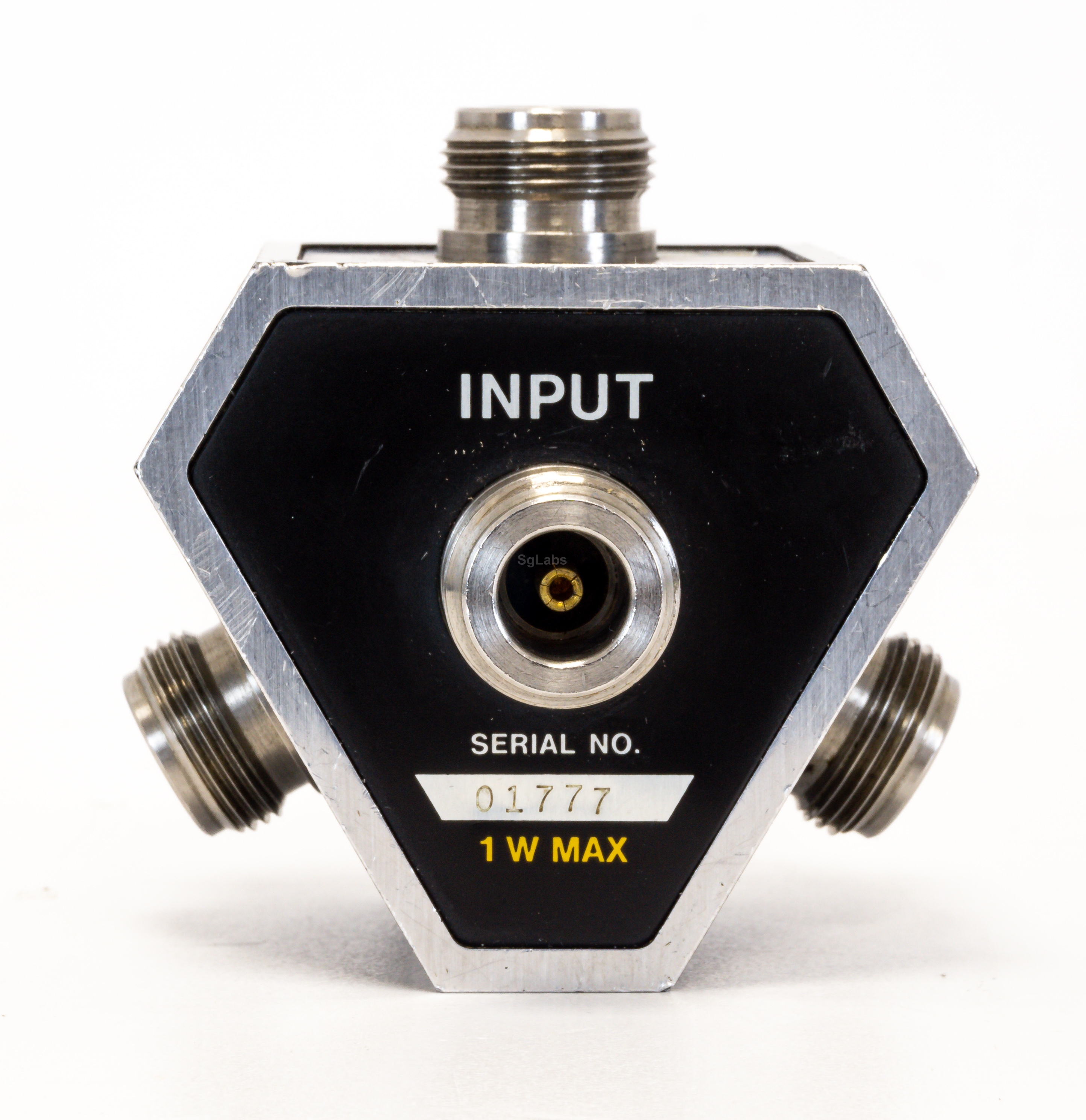

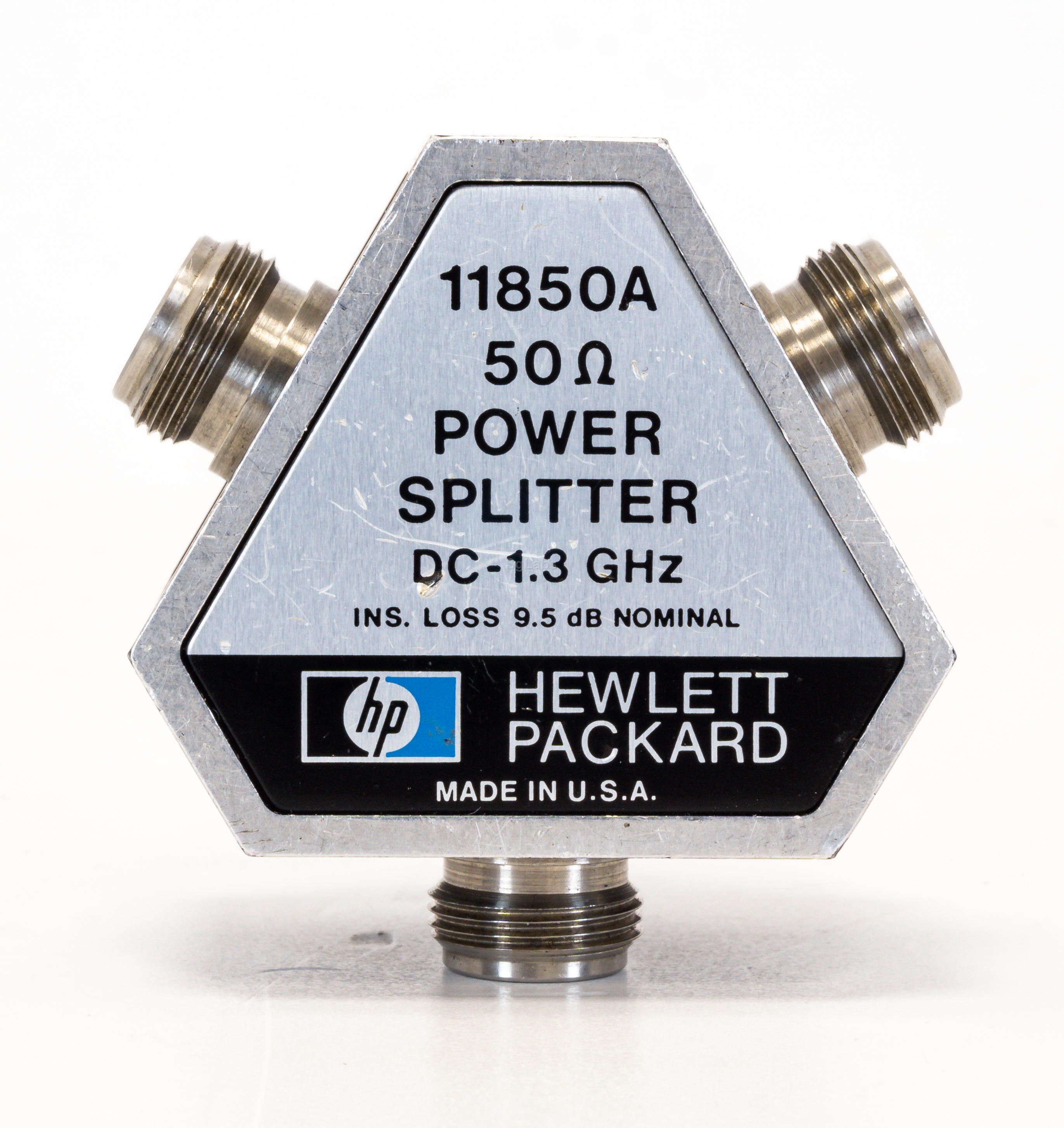

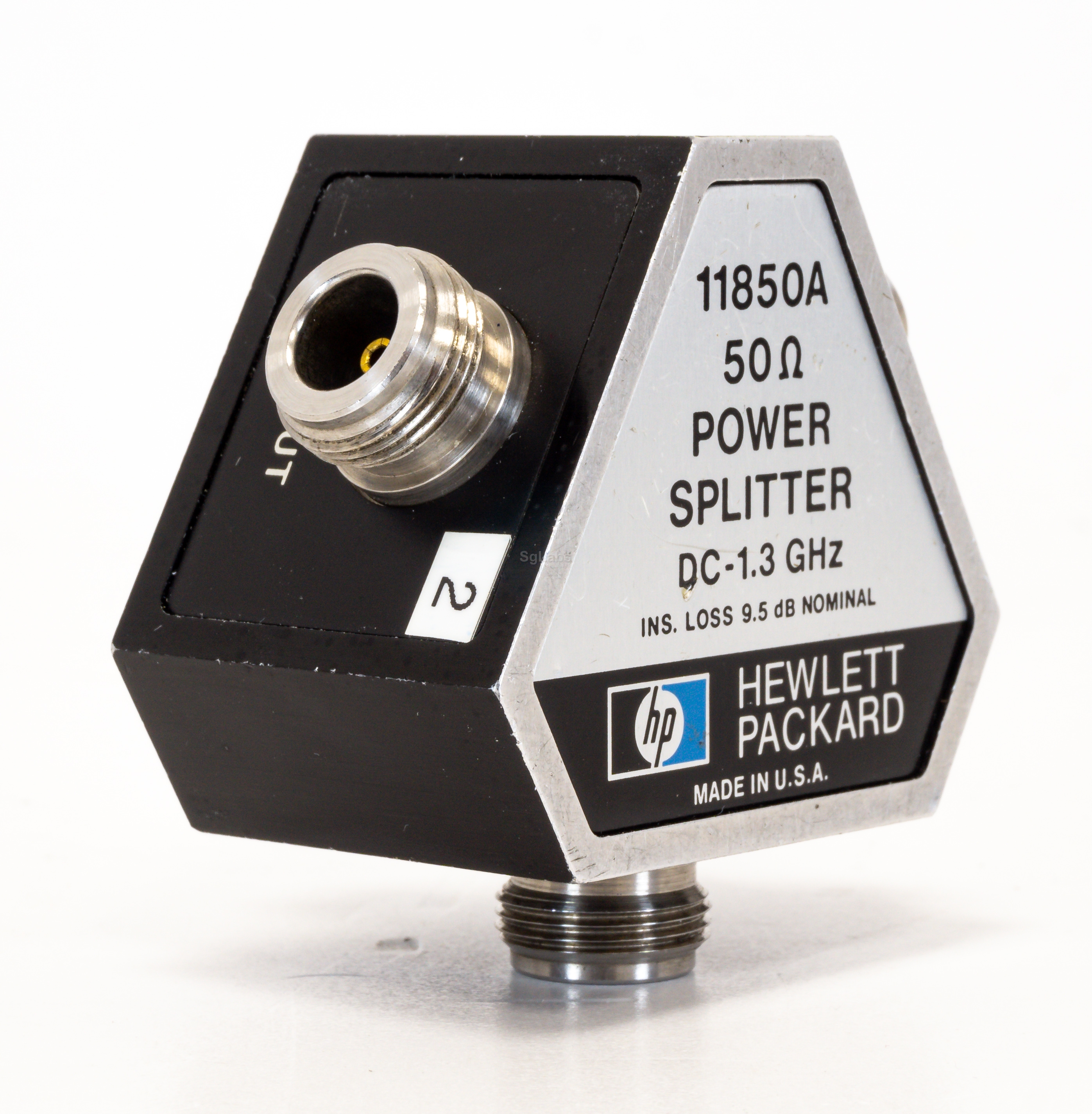

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 11850A is a 50 Ohm, Three-Way Power Splitter offering excellent tracking and phase match between its output ports. Its operating range is from DC to 1.3 GHz. It is an essential accessory for use with RF network analyzers. Type N(f) connectors are provided at the reference input and output arm connectors.
Features
  • Arm Tracking: <0.1 db & <1.5 degrees
  • External Accessories Required: Agilent 11851a cable kit
  • Frequency DC: 1.3 GHz
  • Frequency Response: <0.2 db input to output
  • Input Connector: coaxial input
  • Input Impedance: 50 ohm
  • Insertion/Gain Arm Insertion Loss: 9.54 db
  • Instrument Type: three-way power splitter
  • Maximum Frequency: 1.3 GHz max
  • Maximum Wattage: 100 mw max
  • Minimum Frequency: DC min
  • Number of Outputs: 3
  • Output Connector: coaxial output
  • Output Impedance: 50 ohm
  • Related Items: 11850b, 11850c
  • VSWR- Input: <1.2; <1.05 eq. source match, ratio/leveling
  • Connector: N(f)
  • Max. Frequency: 1300 MHz
  • Min. Frequency: DC
Price
 € 150,00
