HP Agilent Keysight, 3325B

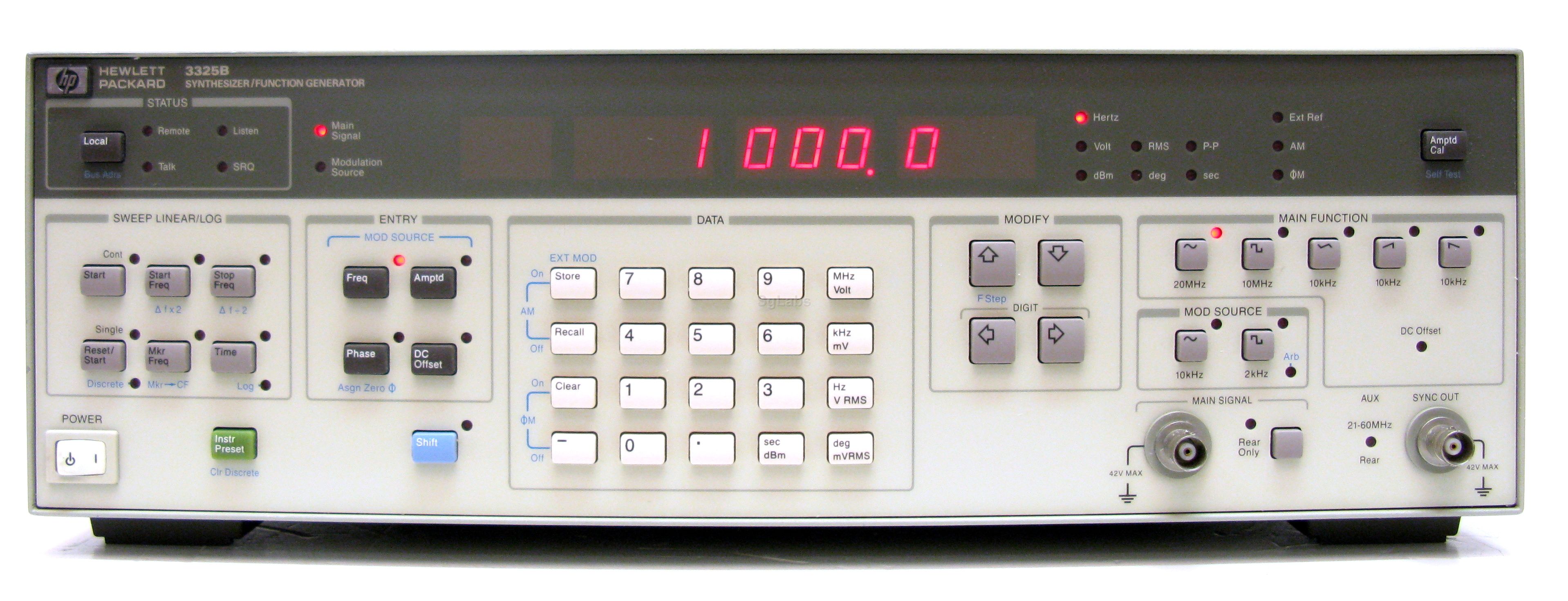

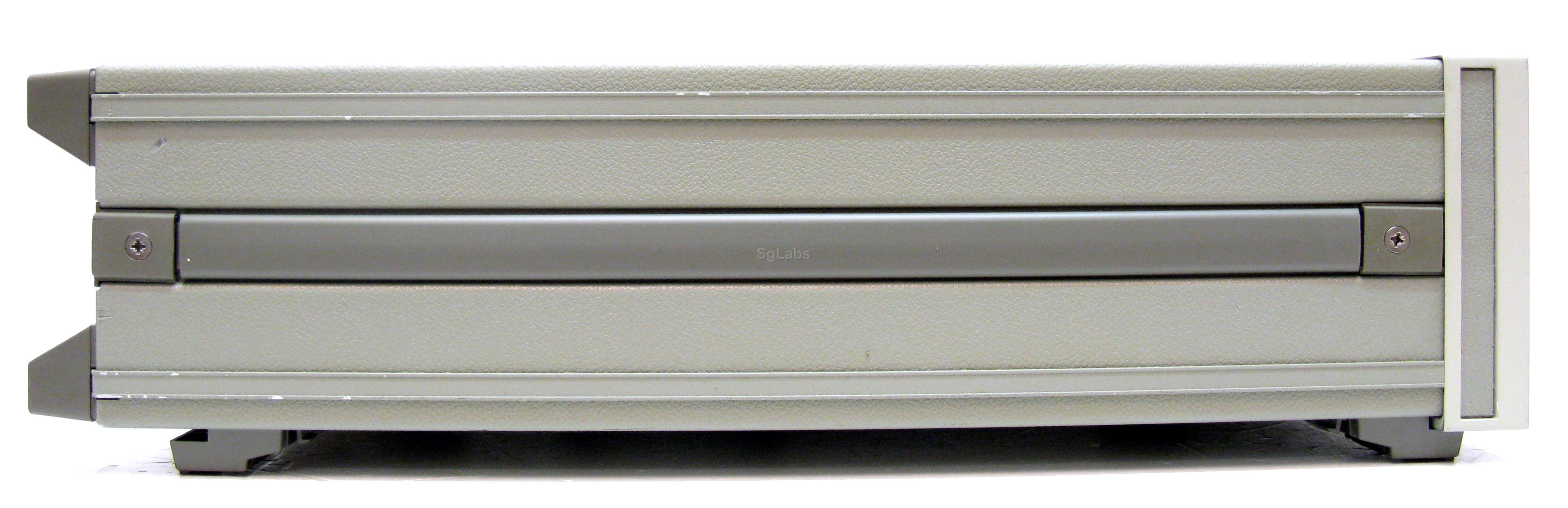

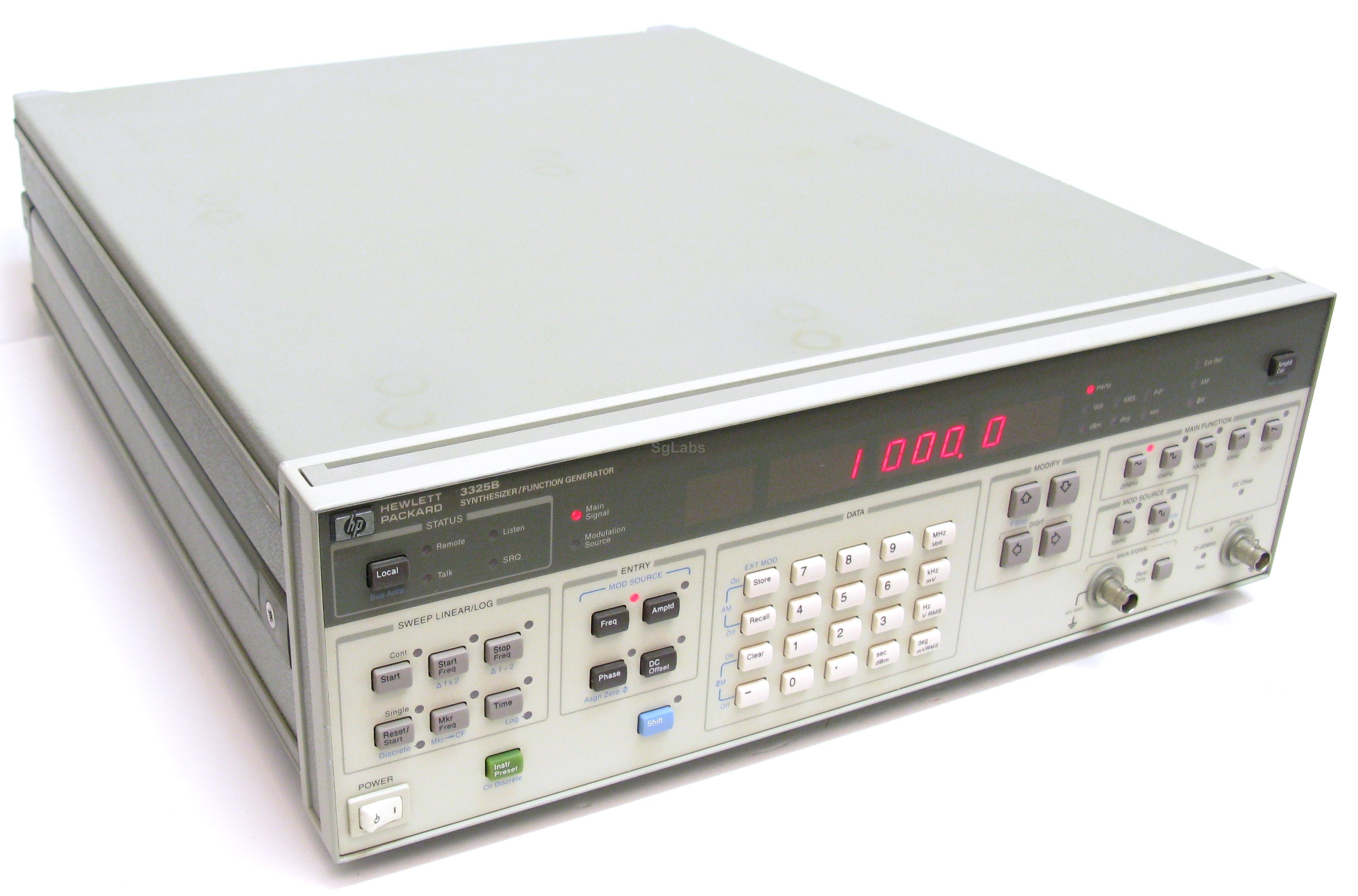

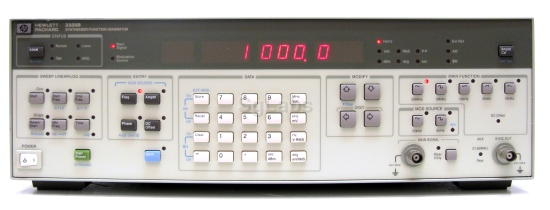

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The Keysight 3325B is a generator/waveform synthesizer with frequency accuracy, resolution, and stability that are ideal for applications such as crystal filter test, multiplexed communication system testing, clock/timing simulation and audio frequency system testing.

Exceptionally linear triangles and ramp signals are produced with synthesized accuracy and stability for applications such as VCO testing or process control. The dc-to-21 MHz frequency range (sine) makes the 3325B ideal for high-performance video system testing.

Pure sine waves or high quality squarewaves can be combined with up to ±5V of DC offset to interface with biased circuits or for stimulus in digital environments. In modulation applications, let the Keysight 3325B provide the carrier for a modulation source, or use the internal modulation source to get modulated signals from the 3325B alone.

  • Functions: Sine, square, triangle, negative and positive ramps, arbs, dc offset
  • Fully synthesized microhertz resolution
  • Internal programmable modulation source
  • LOG, LIN, discrete sweep
  • Excellent signal purity
  • DC to 60 MHz sync output
Features
  • Frequency Range: 1 µHz - 21 MHz (sine)
  • Resolution 1 µHz < 100kHz, 1mHz > 100 KHz
  • Accuracy ±5 x 10-6
  • Amplitude 1 mV - 10 Vp-p (50 ohm)
  • Offset up to ±5 V
  • Modulations AM and PM
  • Sweep GEnerator
  • HP-IB Interface
  • Max. Frequency: 21 Mhz
  • Min. Frequency: 1 uHz
  • Max. Level: 10 V
  • Min. Level: 1 mV
  • sweep: included
