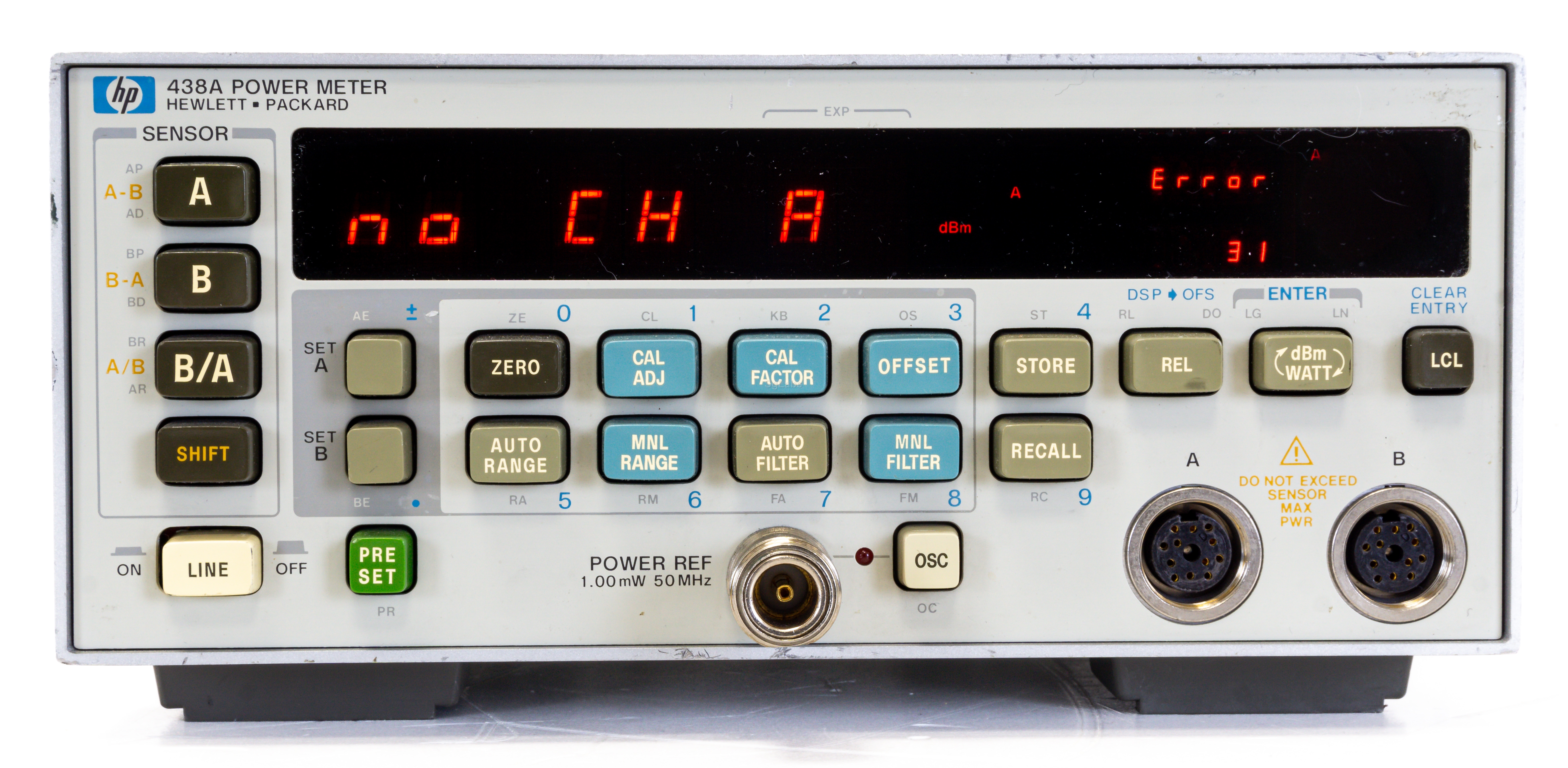

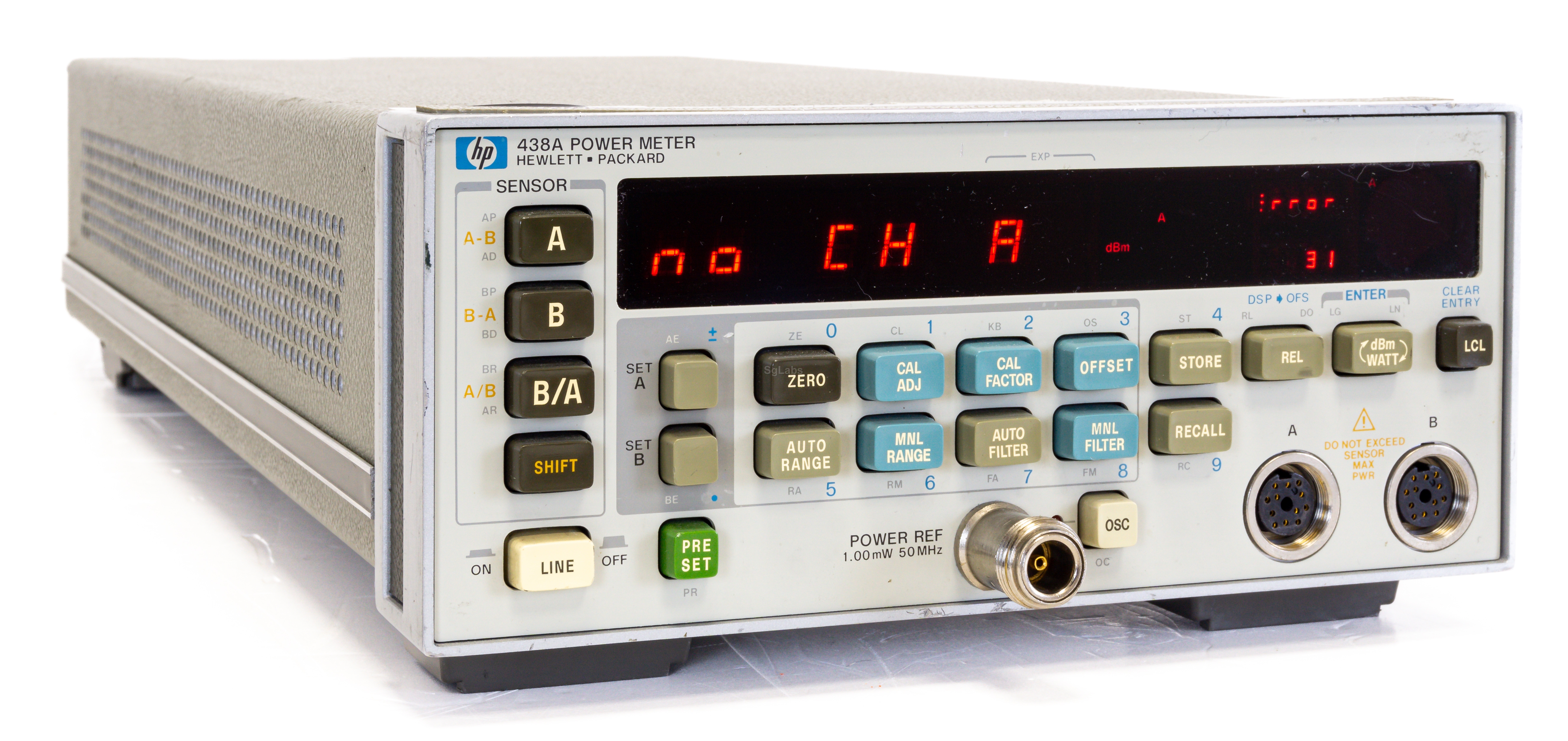

The HP 438A power meter is a dual-channel power meter designed specifically for ATE systems. The compact front panel saves critical rack space, while the dual-channel design allows simple and accurate measurements of the ratio and difference of power levels from two separate sensors.
HP Agilent Keysight, 438A
You are here: Power Meter / Sensor (RF) » Digital
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
Features
- Automatic calibration and zeroing
- 5 digit Display
- Accuracy ±1.2% worst case for 1 year
- Frequency range:from 100kHz to 50 GHz (depending on power sensor used)
- Power range: from -70 dBm to + 44 dBm (depending on power sensor used)
- HP-IB Interface
- Measurement channels Modes: A, B, A-B, B-A, A/B, B/A
Options description

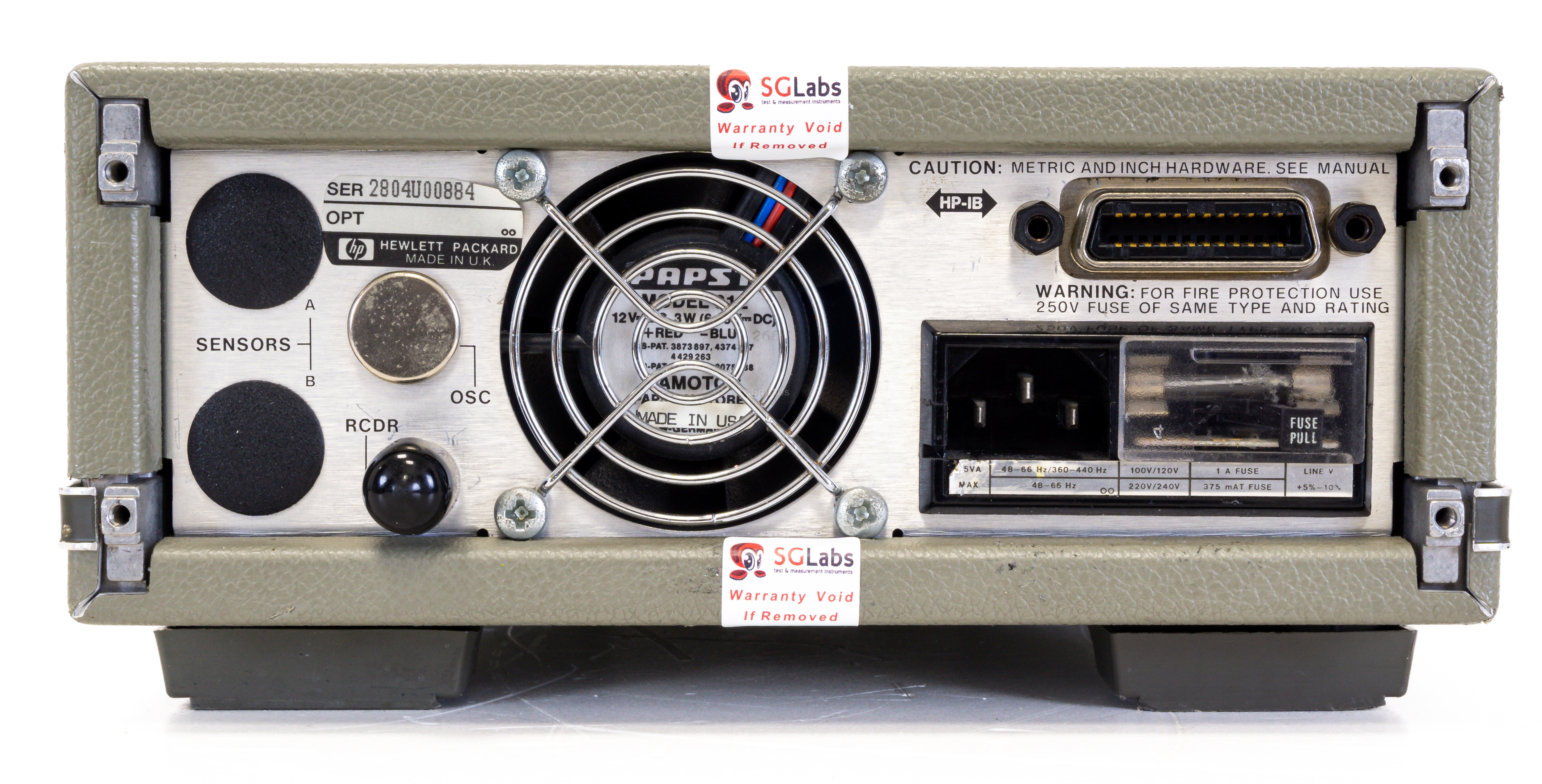

- Option 002:Rear panel sensor connectors (in parallel with front panel) and additional reference oscillator with rear panel output
- Max. Frequency: 50 GHz
- Min. Frequency: 100 kHz
- Channels: 2
- Max. power: 44 dBm
- Min. Power: - 70 dBm
Price
€ 280,00
