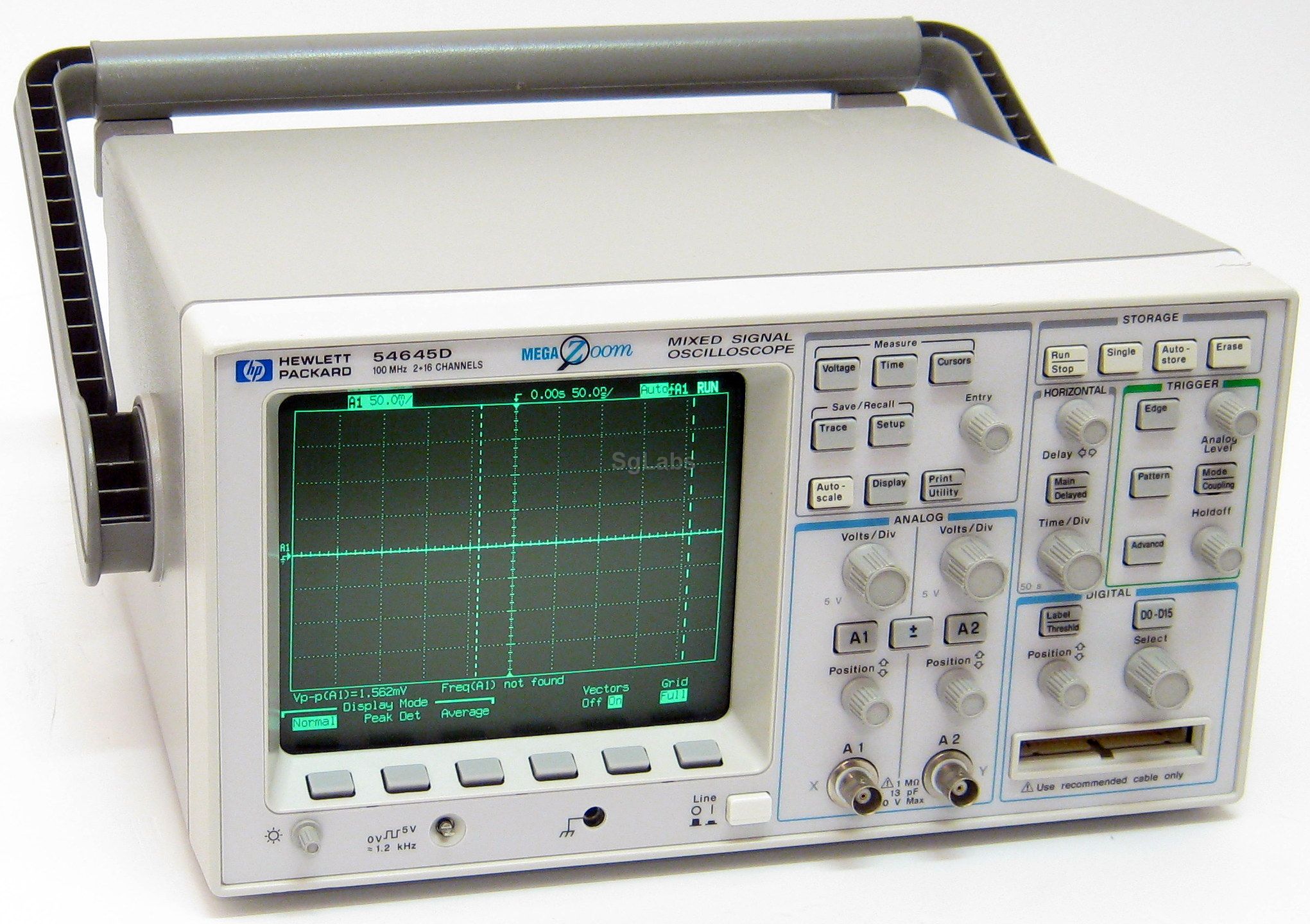

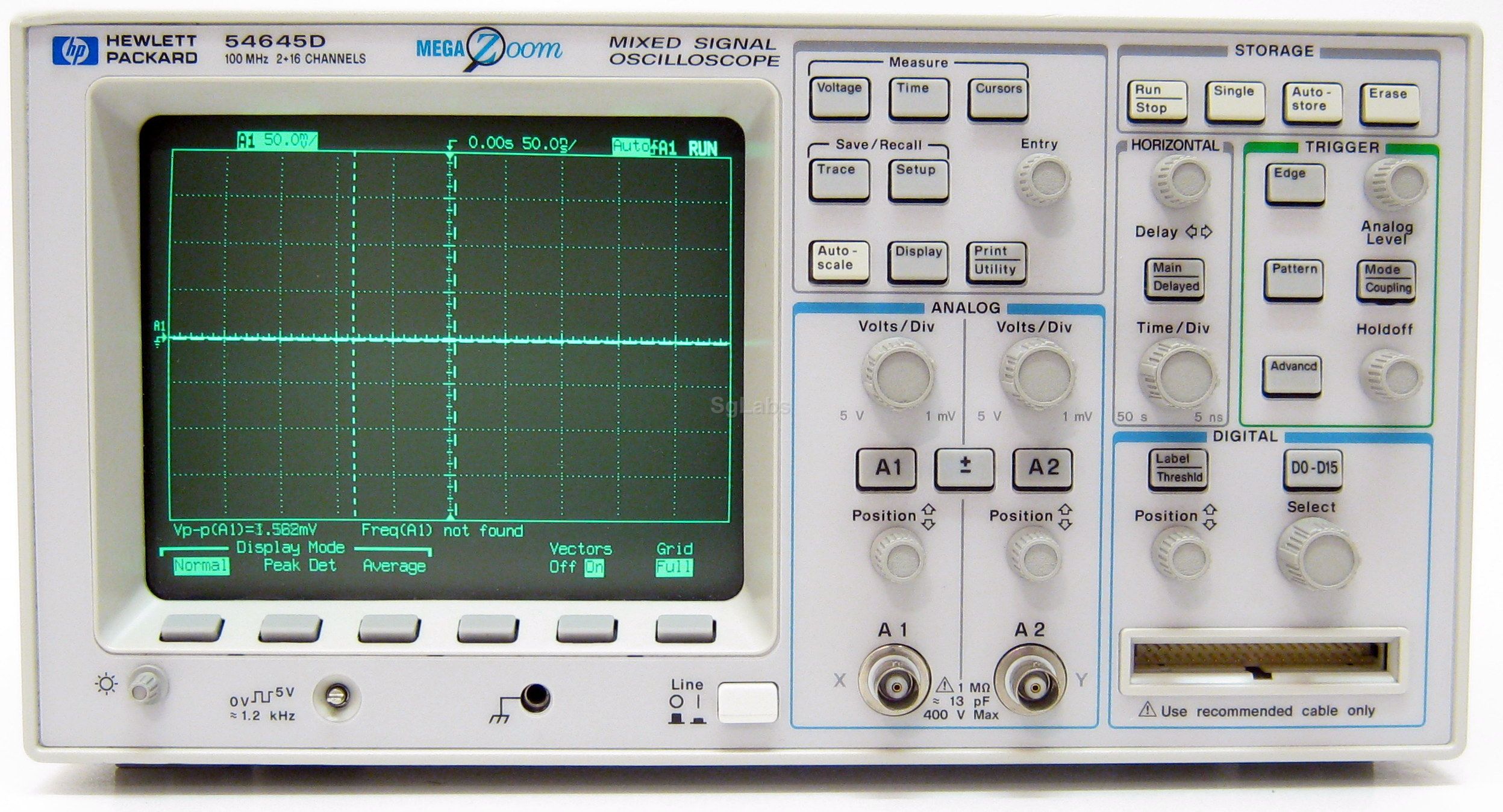

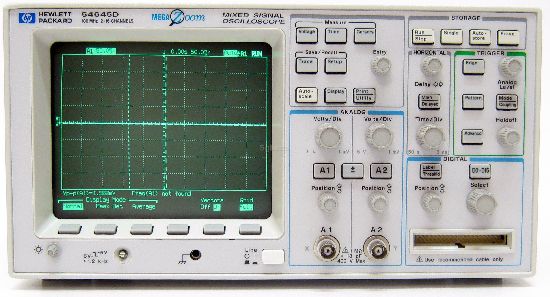

The Agilent HP 54645D, Digital Oscilloscope, seamlessly integrates logic channels into an oscilloscope to offer new measurement capability for designers of combined analog and digital systems. Analog and digital on one display, aligned in time, to help you isolate cause and effect in complex circuits.
- 100-MHz scope with 200 MSa/s
- 1 MB of memory per scope channel
- 16 logic timing channels with 400 MSa/s on 8 Channels, 200 MSa/s on 16 Channels
- 2 MB of memory per logic channel
- Agilent MegaZoom technology allows deep memory capture and a responsive display Simple easy-to-use controls
- Powerful triggering
- CRT Display
