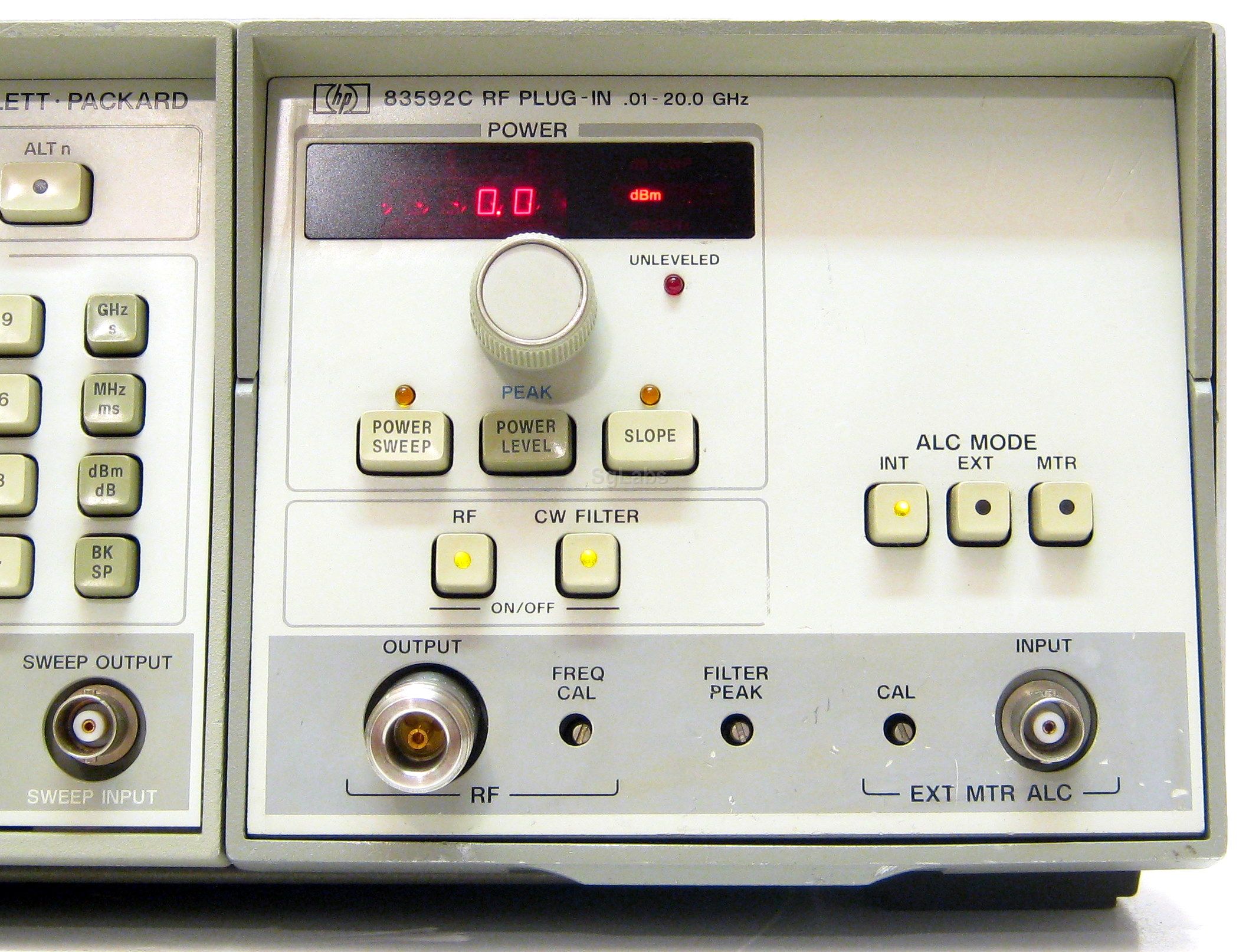

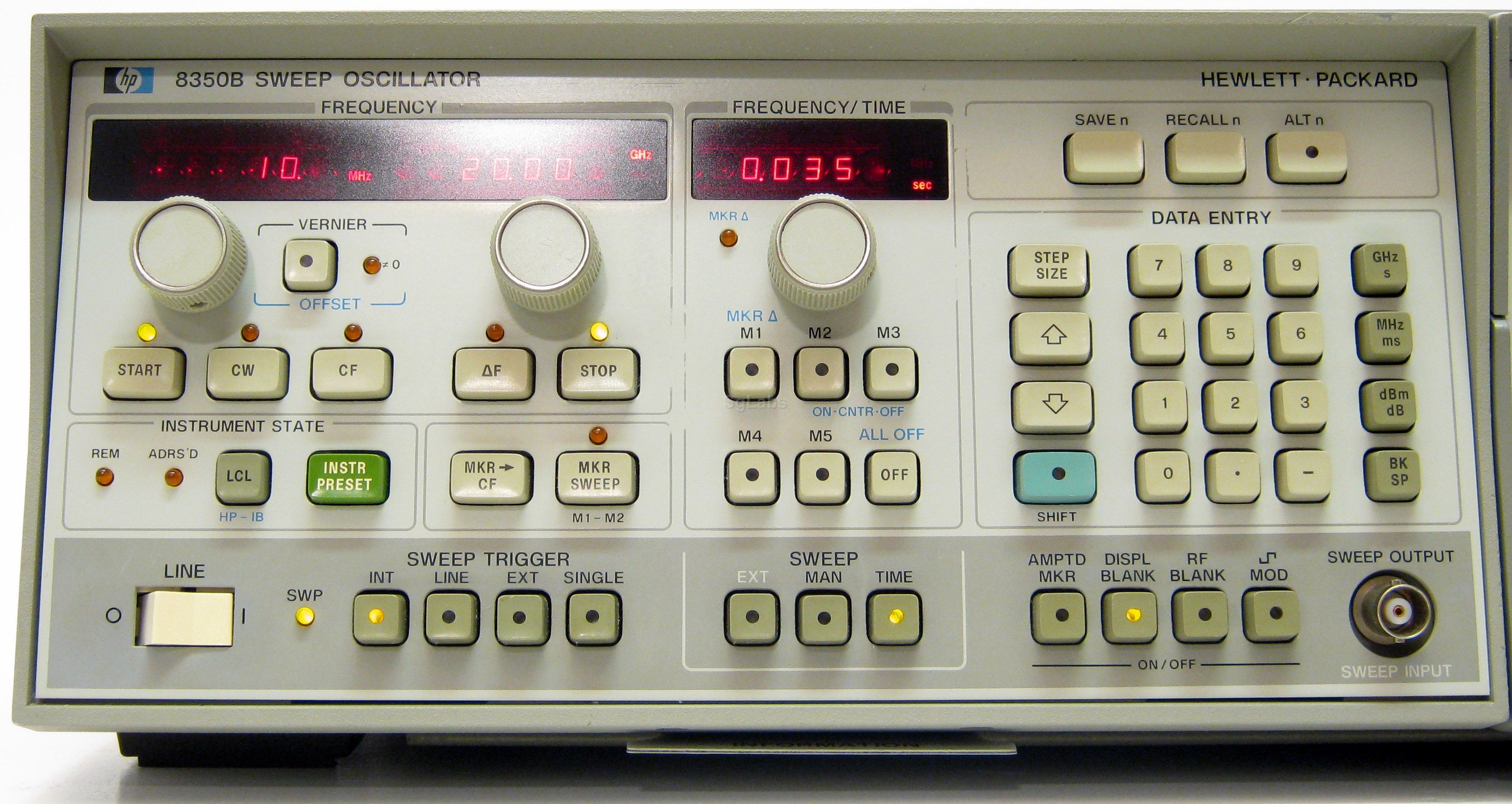

The HP 8350B + HP 83592C RF plug-in provides a 10 MHz to 20 GHz broadband coaxial swept frequency source for the Agilent 8350B sweep oscillator mainframe. Applications include scalar network analysis, serving as a local oscillator for down-converting high frequency signals, and a stand-alone RF signal source
Technical details:
- Frequency range from10 MHz to 20 GHz
- Frequency Accuracy ±12 MHz
- Stability 200 KHz/C°
- Power range output -60 dBm a +4 dBm
- Power Level Accuracy ±1.5 dB
- Output Power Resolution Displayed 0.1 dB
- Minimum Sweep Time 10 ms
- Opt.002: 55 dB step Attenuator
