HP Agilent Keysight, 83595A

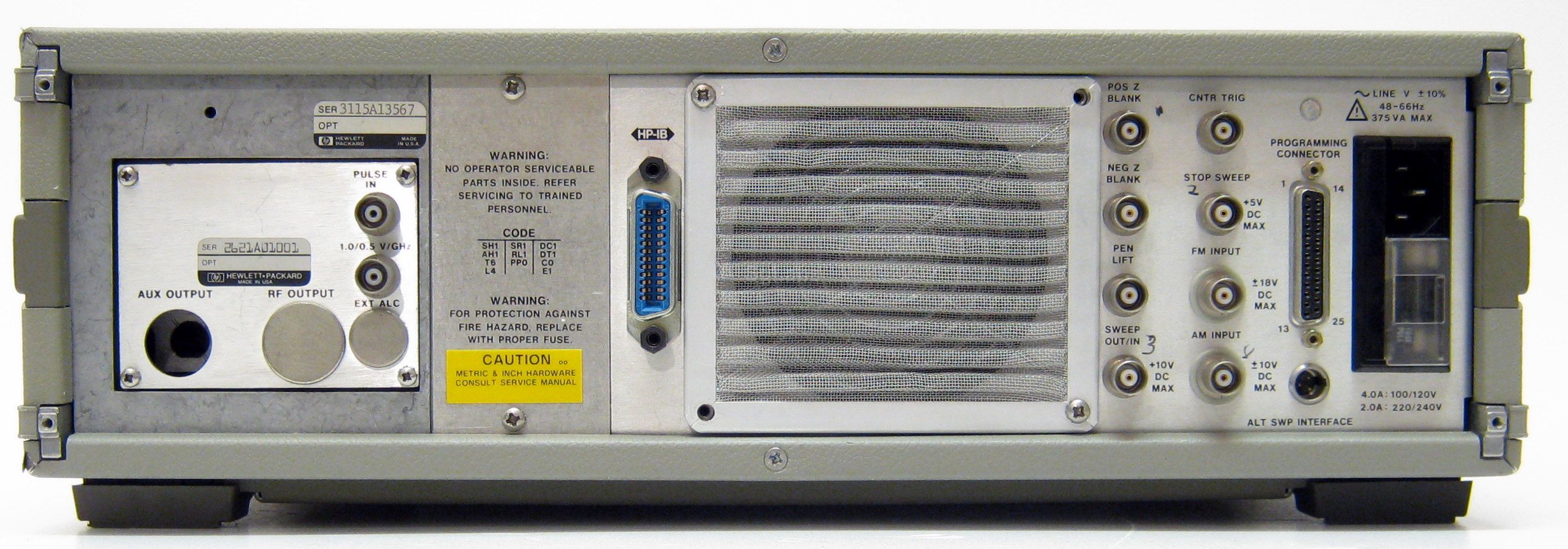

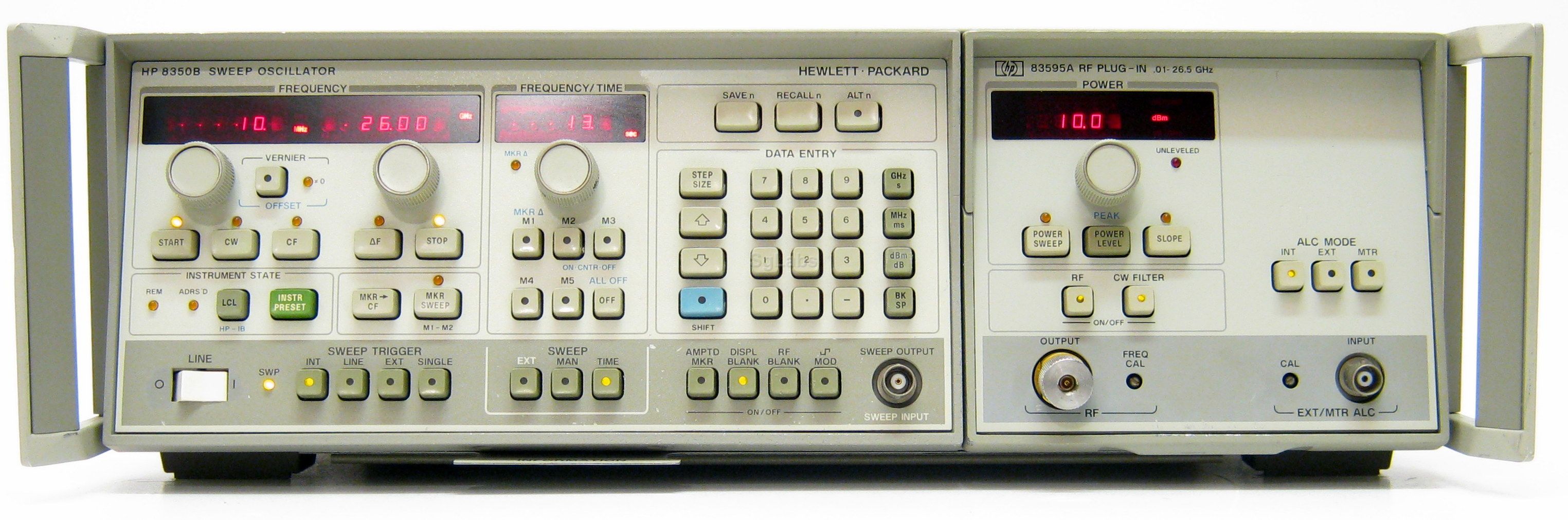

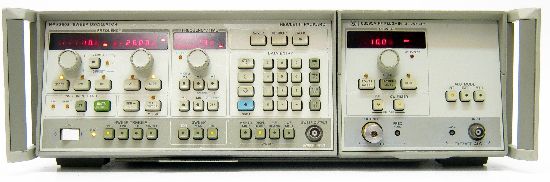

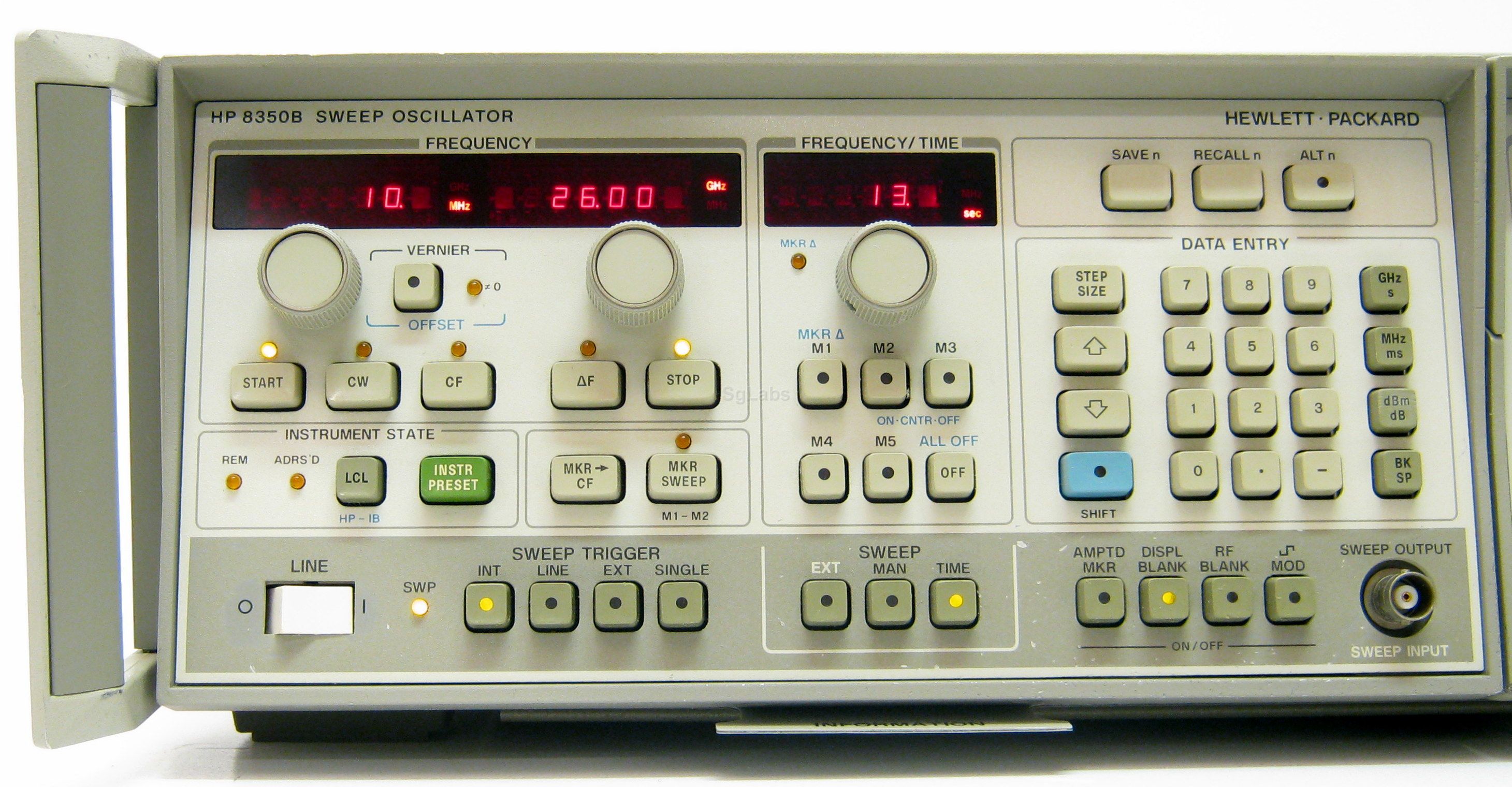

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

The HP 8350B + HP 83595A RF plug-in provides a 10 MHz to 26.5 GHz broadband coaxial swept frequency source for the Agilent 8350B sweep oscillator mainframe. Applications include scalar network analysis, serving as a local oscillator for down-converting high frequency signals, and a stand-alone RF signal source



Technical details:

  • Frequency range from10 MHz to 26.5 GHz
  • Frequency Accuracy ±12 MHz
  • Stability 200KHz/C°
  • Power range output -5 dBm a +4 dBm
  • Power Level Accuracy ±1.5 dB
  • Output Power Resolution Displayed 0.1 dB
  • Minimum Sweep Time 10 ms
  • Max frequency: 26.5 GHz
  • Minimum Frequency: 10 MHz
  • Mainframe series: HP 8350B
  • Max. power: +4dBm
  • Max. Output level: 4 dBm
  • Min. output level: - 5 dBm (without attenuator)
