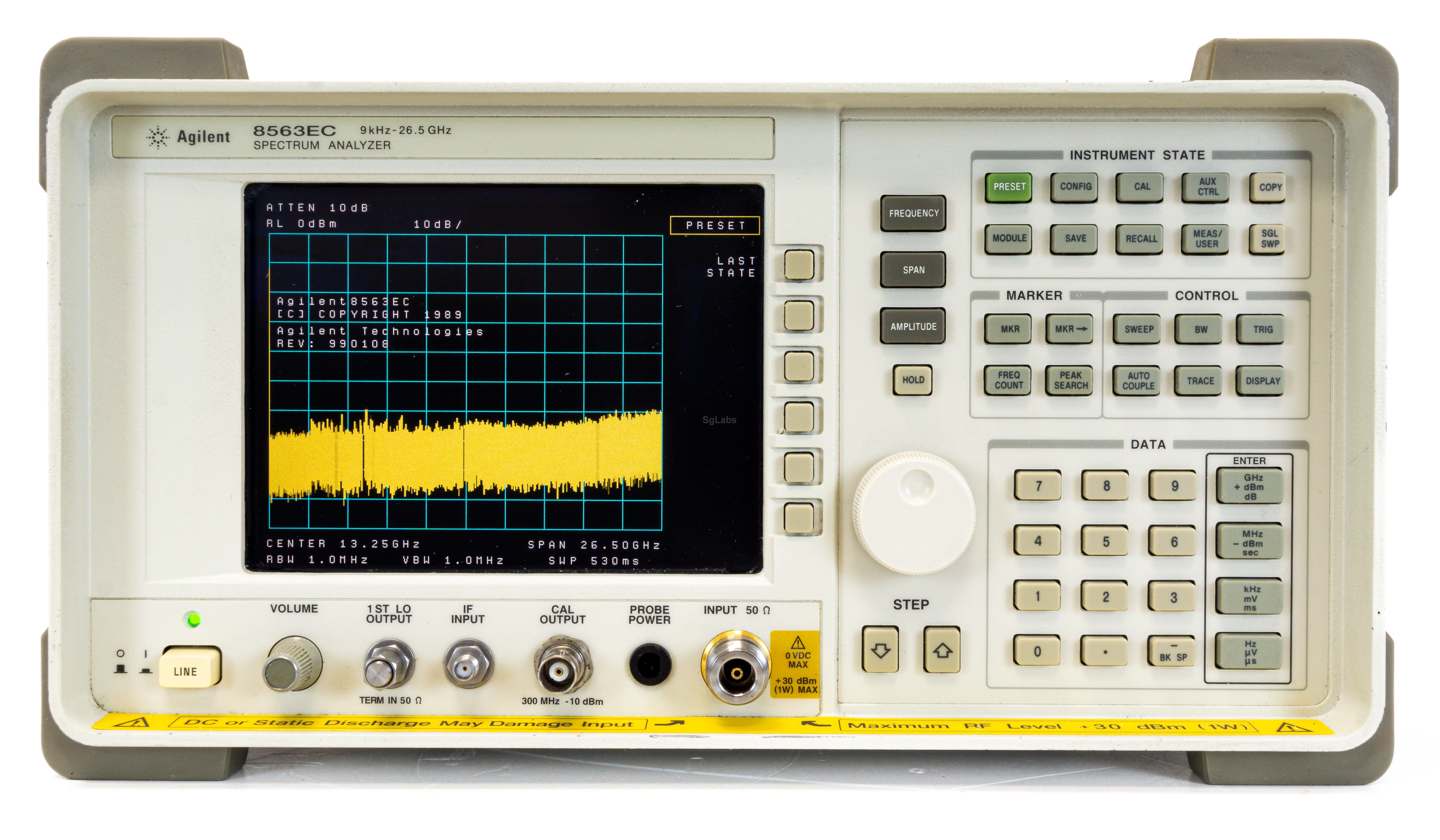

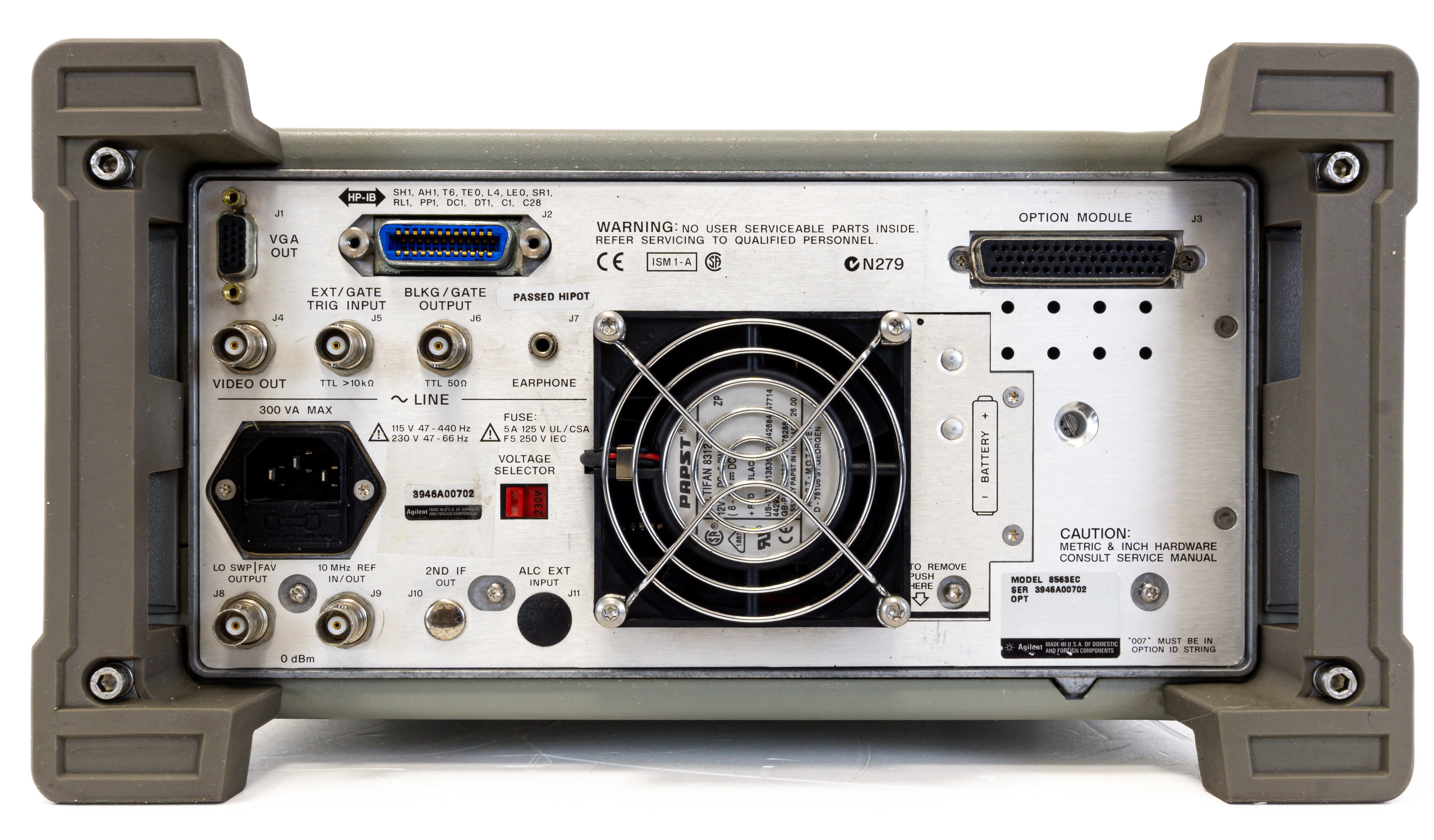

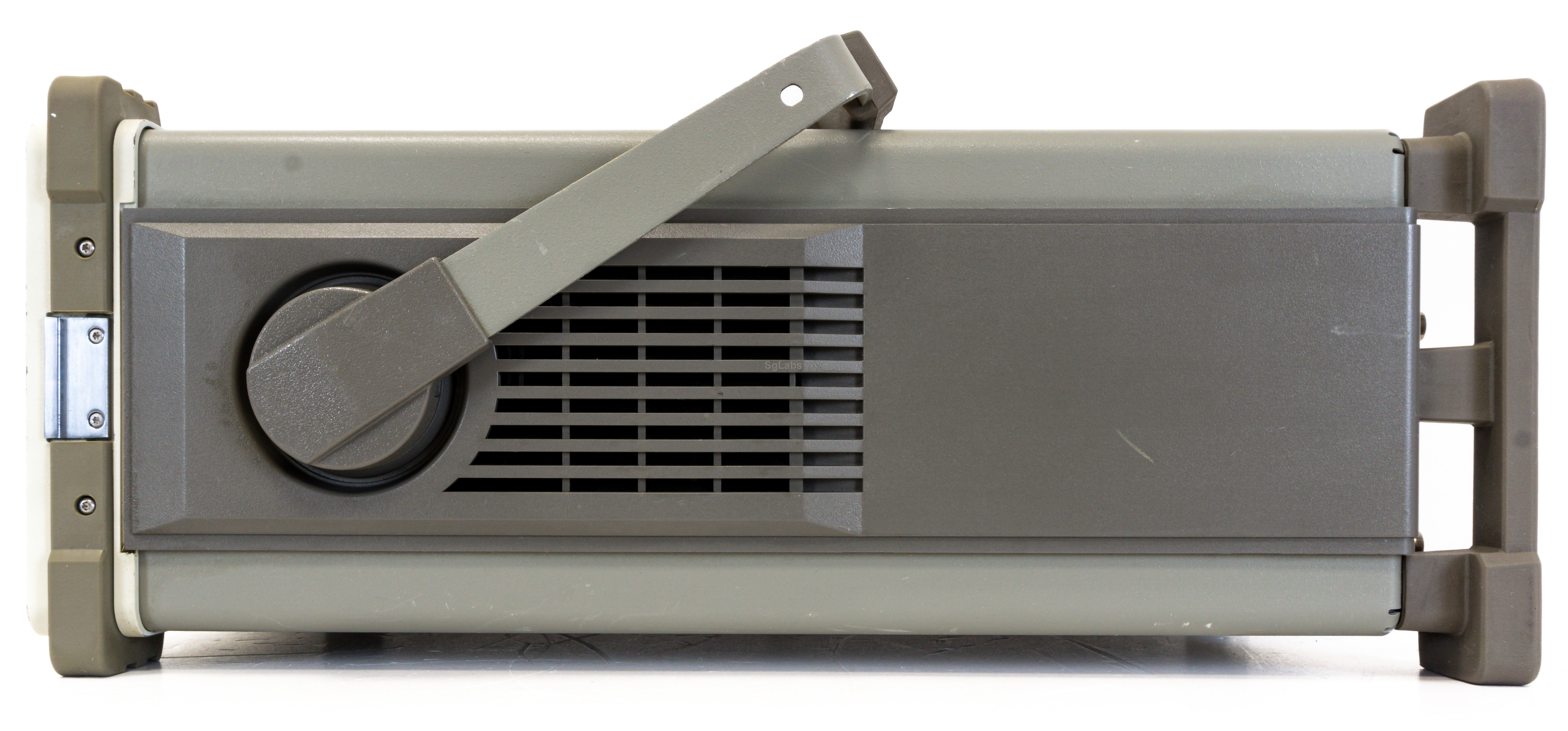

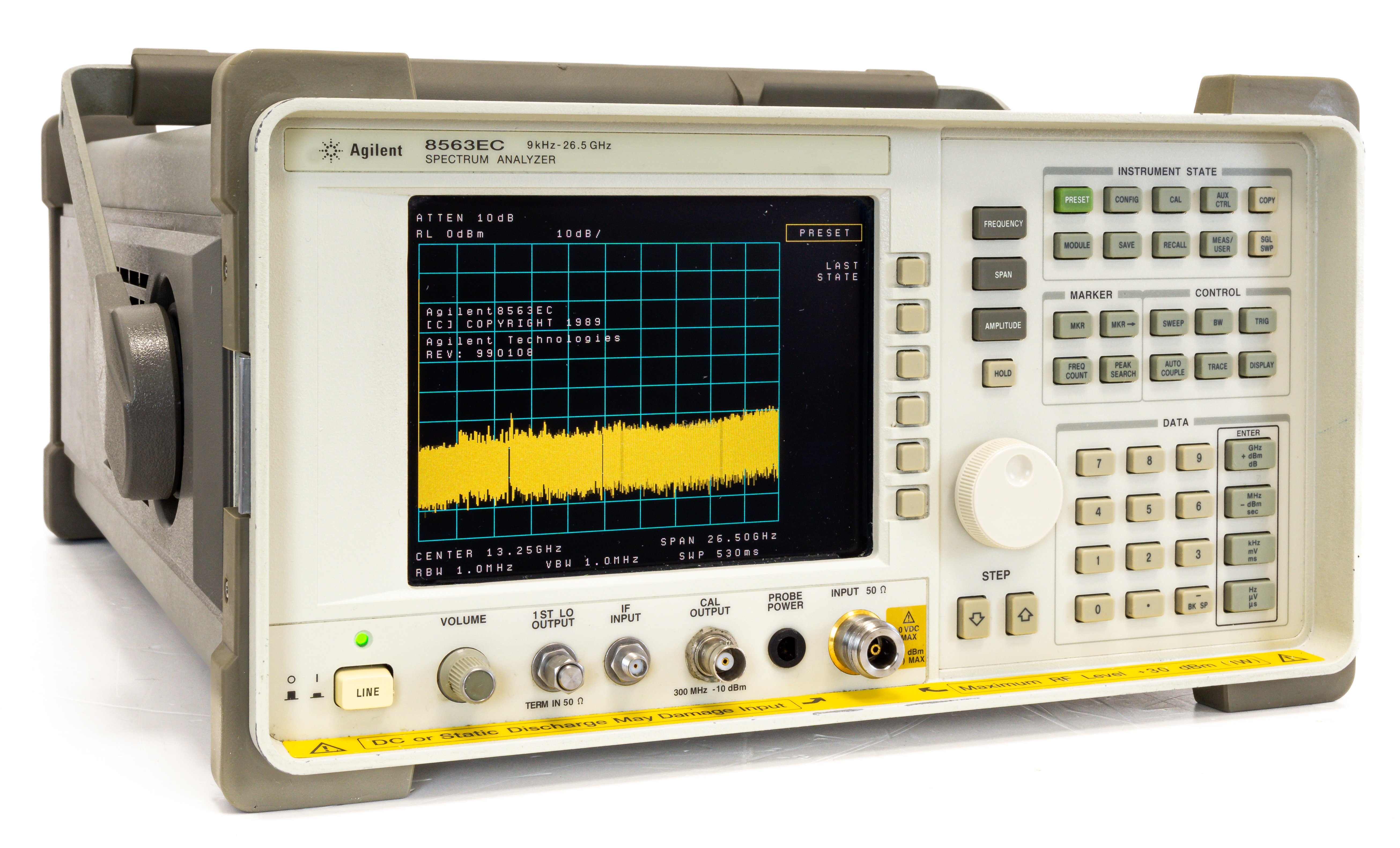

HP Agilent Keysight 8563EC Analizzatore di spettro 26.5 GHz
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 8563EC portable, color display microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

The 8563EC combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions.

Features
  • Frequency range: 9 kHz to 26.5 GHz
  • ±1.0 dB absolute amplitude accuracy
  • -149 dBm/Hz displayed average noise level (DANL)
  • Fast digital resolution bandwidths of 1 Hz to 3 MHz
  • Portable, MIL-PRF-28800, Class 3 rugged
  • Display: Colour
  • Max. Frequency: 26.5 GHz
  • Min. Frequency: 30 Hz
  • Min. Resolution: 1 Hz
  • Tracking generator: Only external
Price
 € 4.800,00
