HP Agilent Keysight, 8590B

You are here: Spectrum Analyzer » Analog

ZOOM

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

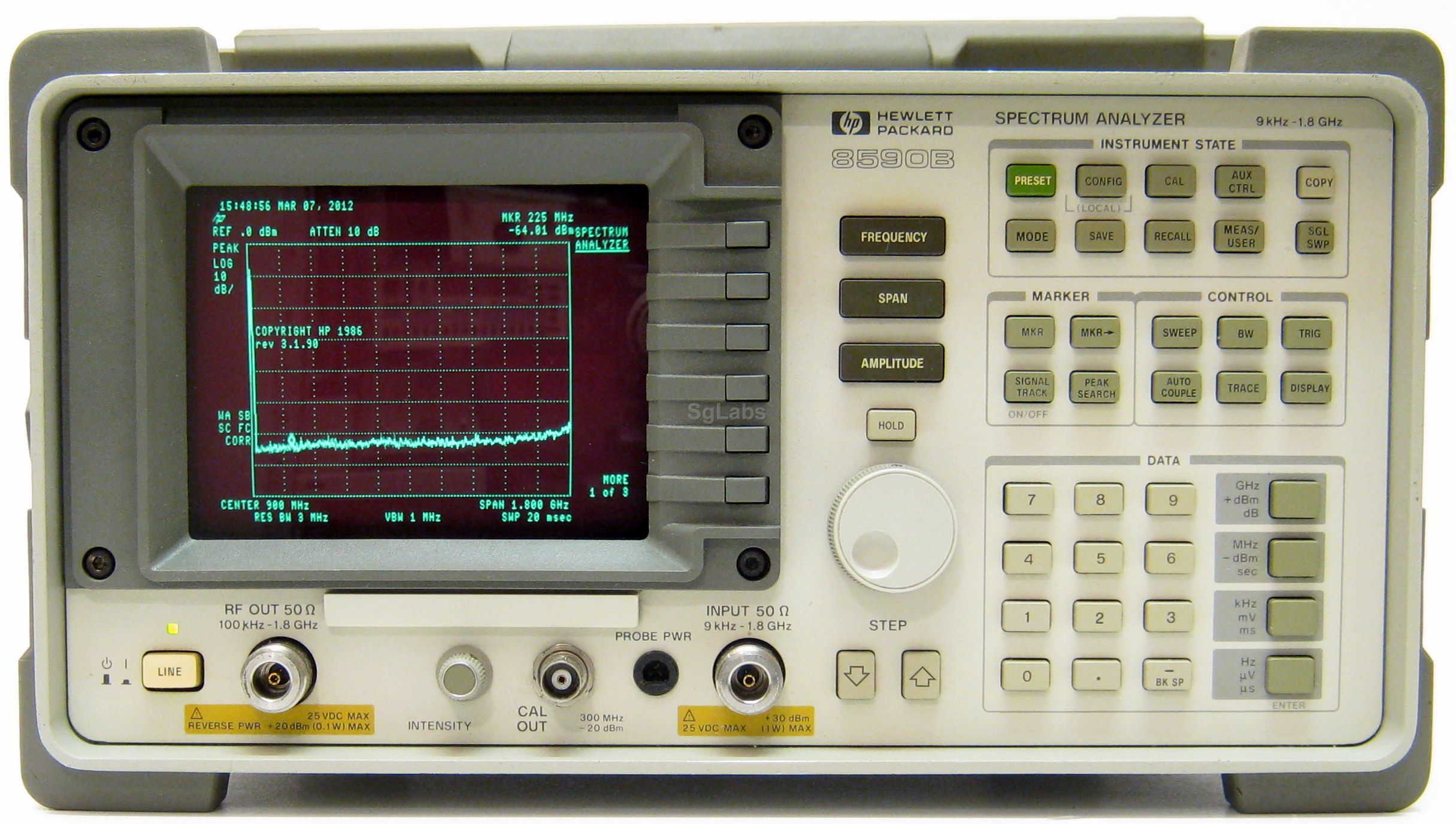

The HP 8590B is a low cost, frequency accurate RF spectrum analyzer designed to meet your general purpose measurement needs. The easy-to-use interface provides access to built-in functions.



Technical details :

• Frequency Range 10 kHz to 1.8 GHz
• Frequency Span 0 Hz (zero span), 50 kHz - 1.8 GHz
• Frequency accuracy +/- 5 MHz + 1% Span
• Frequency Sweep Time Range 20 ms to 100 s
• Resolution Bandwidth 1 kHz to 3 MHz
• Amplitude range -115 dBm to +30 dBm
• Option 010: Tracking generator

• Max. Frequency: 1.8 GHz
• Min. Frequency: 9 kHz
• Max. Level: 30 dBm
• Min. Level: -115 dBm
• Tracking generator: Opzionale

Download datasheet: SGLabs_HP_8590B.pdf (688 kb)
