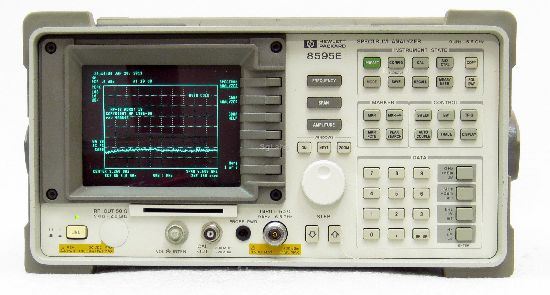

HP Agilent Keysight, 8595E

You are here: Spectrum Analyzer » Digital

ZOOM

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.

Product description

• Frequency range 9 kHz - 6.5 GHz
• Max resolution RBW 1 kHZ, EMI filter 9kHz, 120kHz
• Sweep time from 20ms to 100 s

Option Description (ask for really availability):

• Opt.004: Precision frequency reference

• Opt.041: GP-IB Interface and Parallel Printer Interface
• Opt.053: Improved Amplitude Accuracy for CDMA/PCS Bands
• Opt.101: Fast time domain sweeps and analog+ display

• Opt.105: Time-Gated Spectrum Analysis
• Opt.140: Narrow Resolution Bandwidths/Precision Frequency Reference
• Opt.151: DSP, Fast ADC, and Digital Demodulator
• Opt.160: PDC, PHS, NADC, and CDMA Firmware

• Display: CRT monochrome
• Max. Frequency: 6.5 GHz
• Min. Frequency: 9 KHz
• Min. Resolution: 10 Hz

Download datasheet: SgLabs_HP 8595E Data Sheet.pdf (554 kb)
