HP Agilent Keysight, 8648B

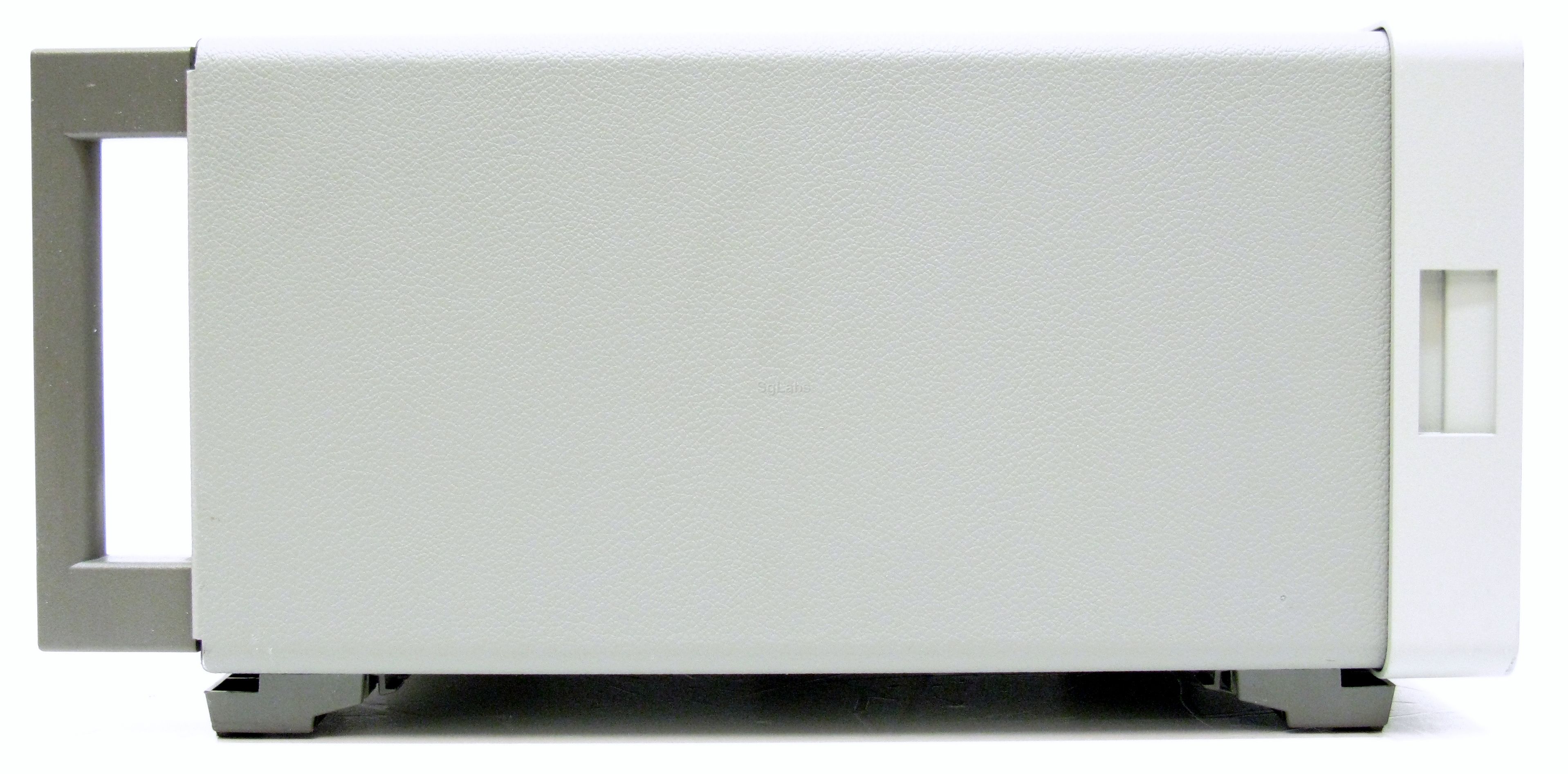

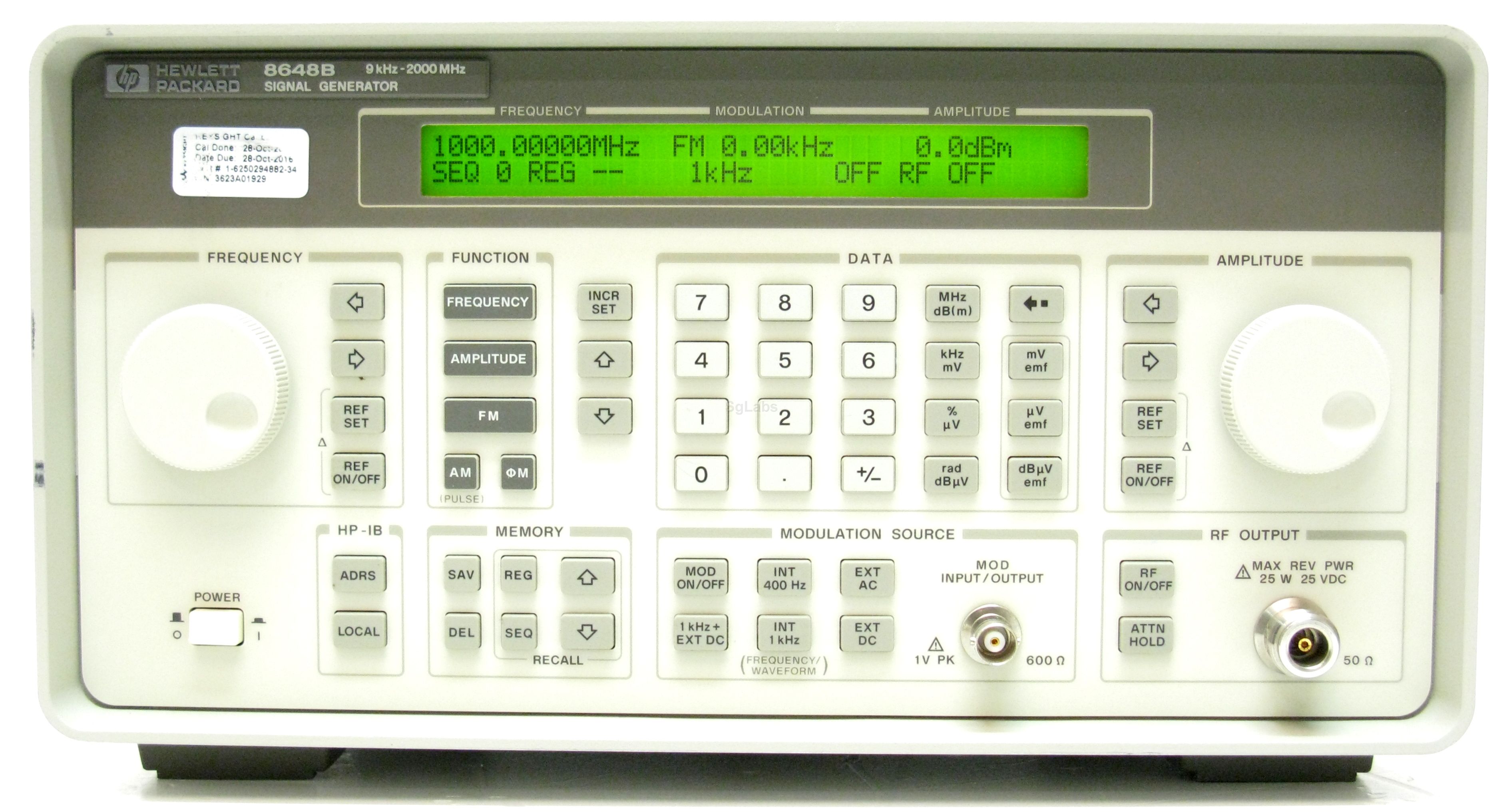

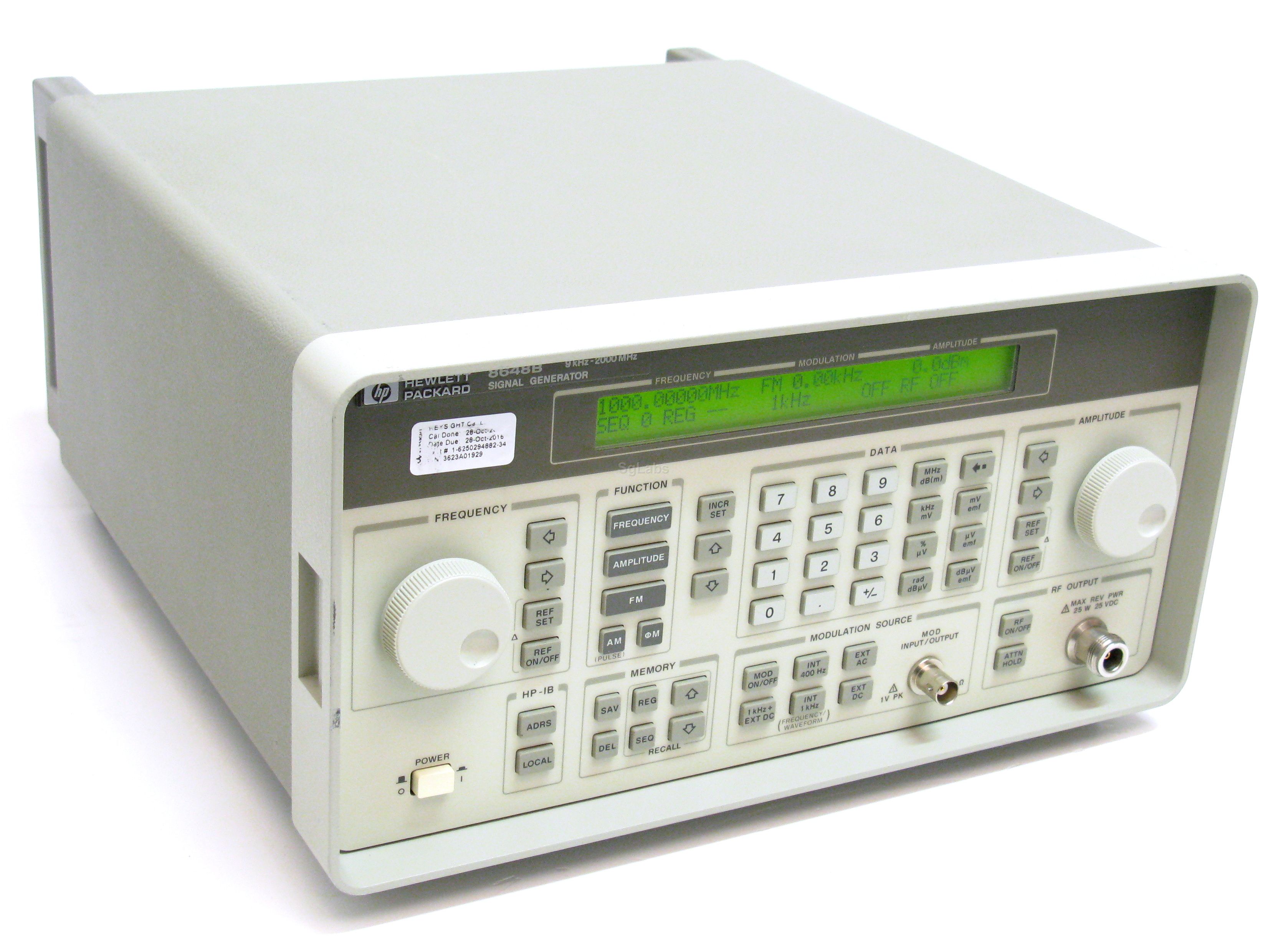

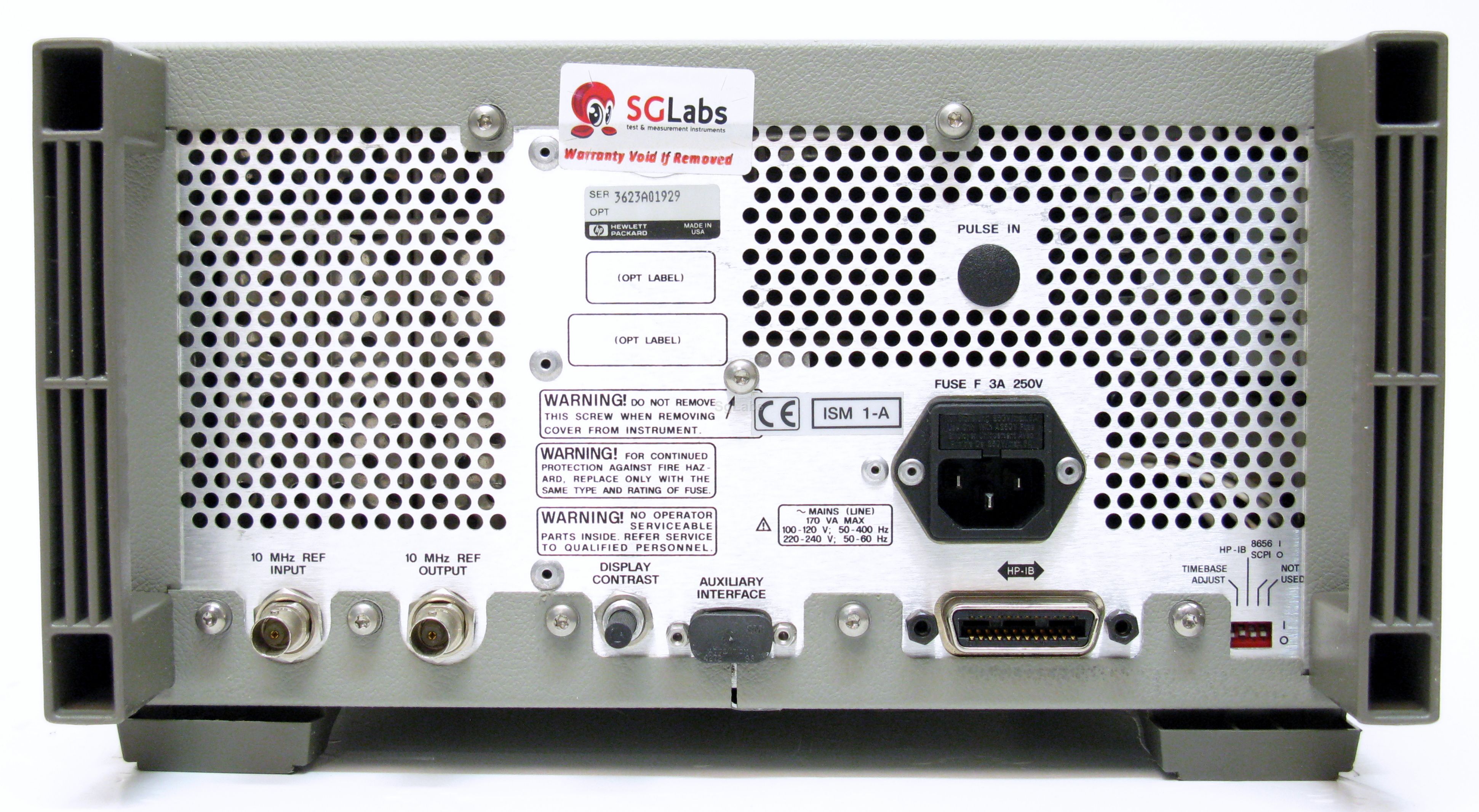

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Agilent 8648B is designed for semi-automated receiver test, and a variety of general purpose applications The Agilent 8648B starts with the basic capabilities of the Agilent HP 8647A, enhances residual FM, level accuracy and phase noise performance, offers optional pulse modulation and high power, and extends the frequency to 2 GHz. While economical, the Agilent 8648B is built to stringent quality standards, promoting reliability and measurement repeatability.
  • Frequency Range: 9 kHz - 2 GHz
  • Power Range: -136 dBm / +13 dBm
  • Power Resolution 0.1 dB
  • Output Accuracy 1 dB
  • GPIB Interface
  • Minimum Single-Side-Band Noise -120 dBc/Hz
  • Maximum Single-Side-Band Noise -110 dBc/Hz
  • Harmonics (noise) -30 dBc
  • Non-harmonics (noise) -54 dBc
  • Modulation AM,FM,Phase
  • Max frequency: 2 GHz
  • Minimum Frequency: 9 KHz
  • Modulation: AM-FM
  • Max. Output level: 13 dBm
  • Min. output level: -136 dBm
