HP Agilent Keysight, 8714C

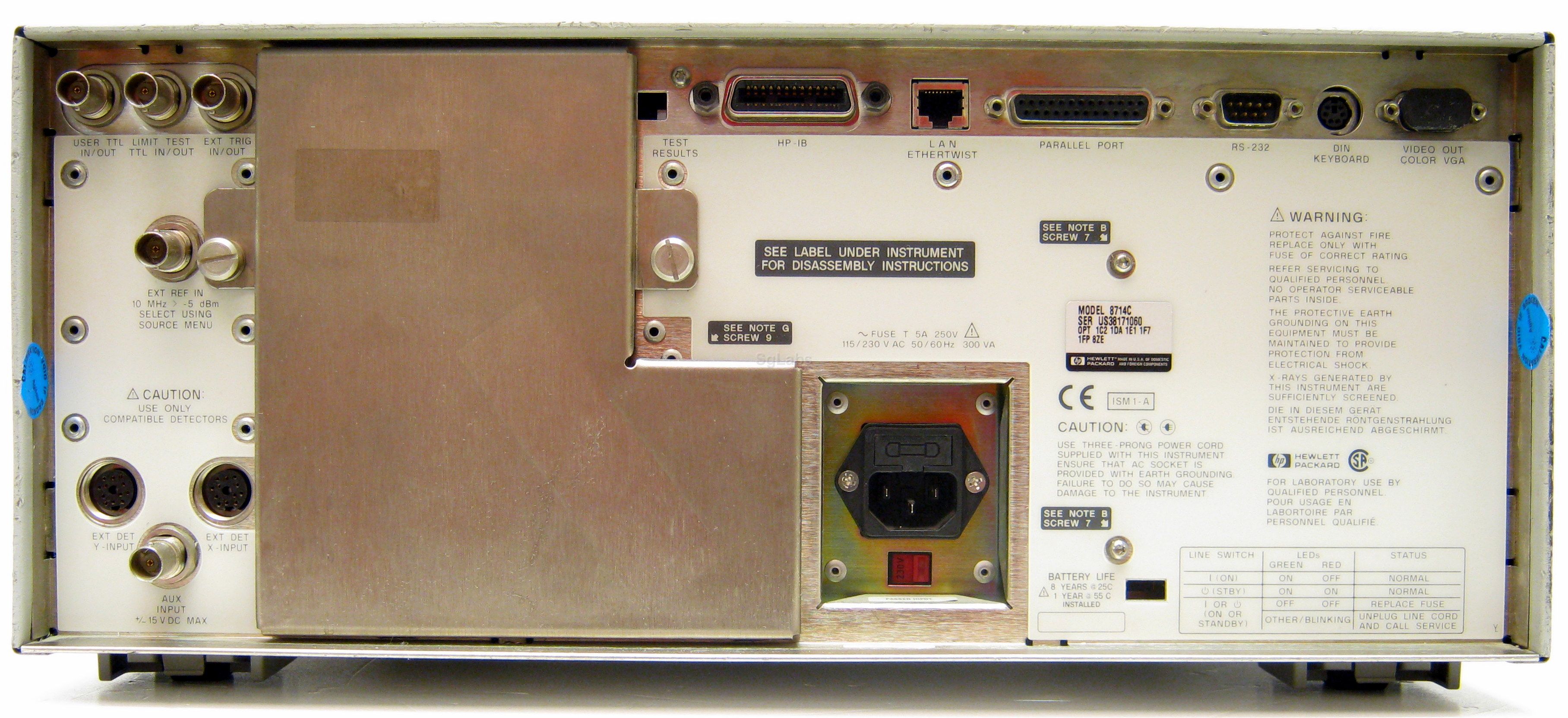

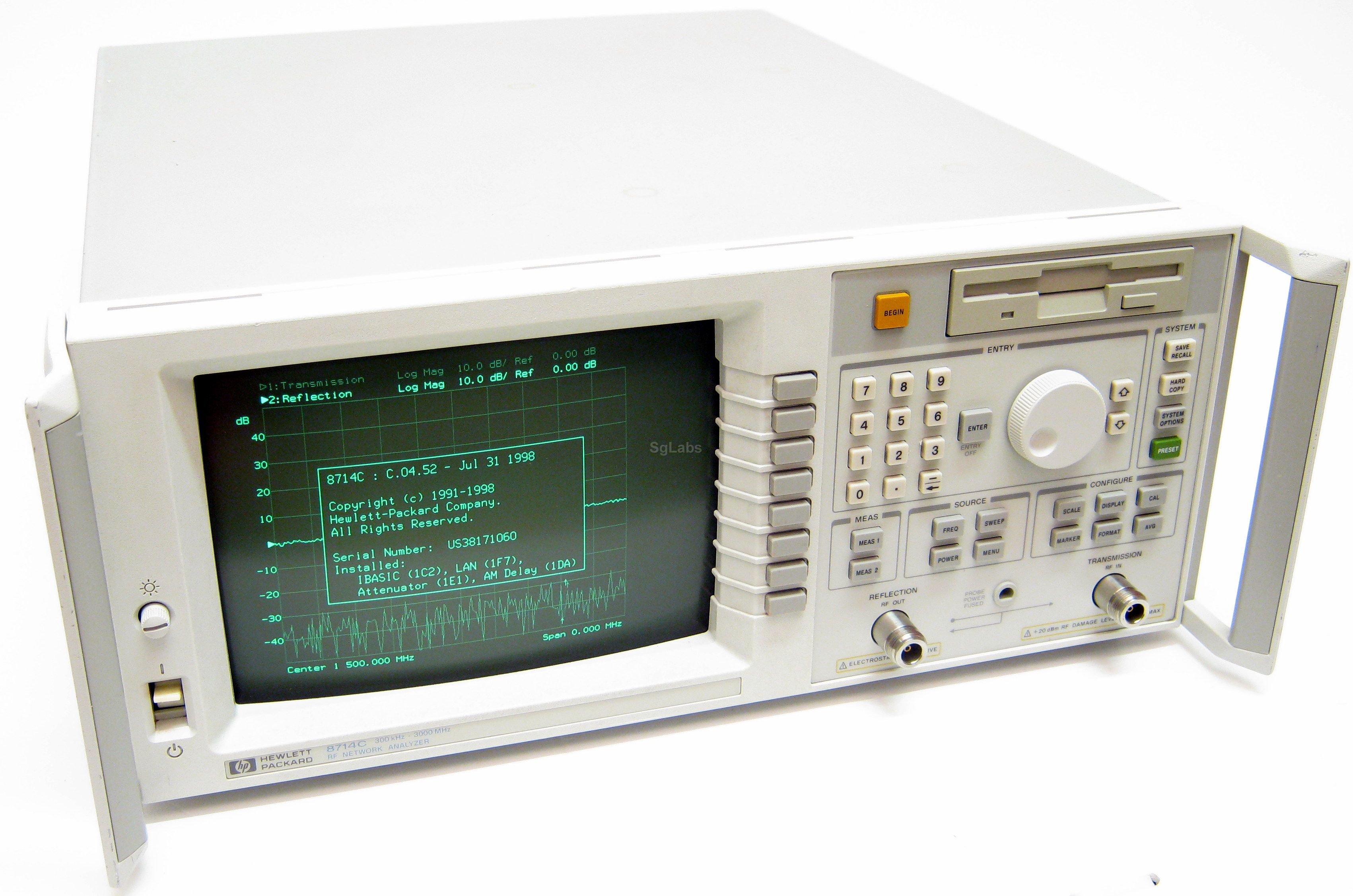

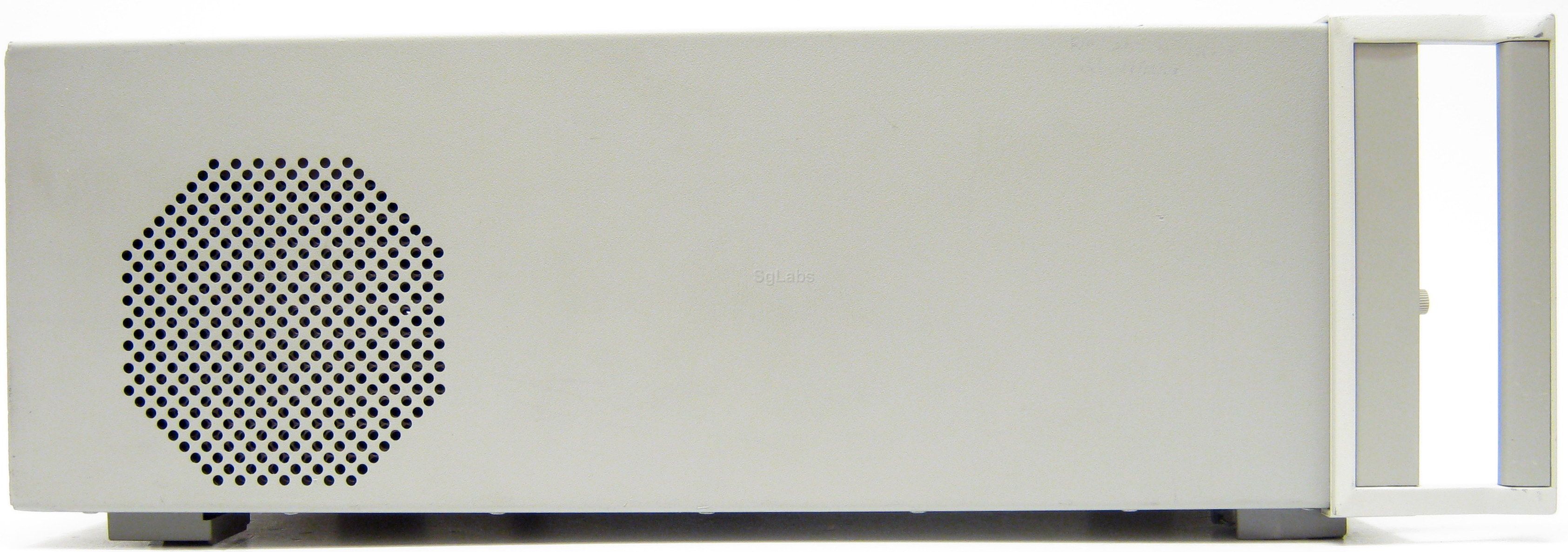

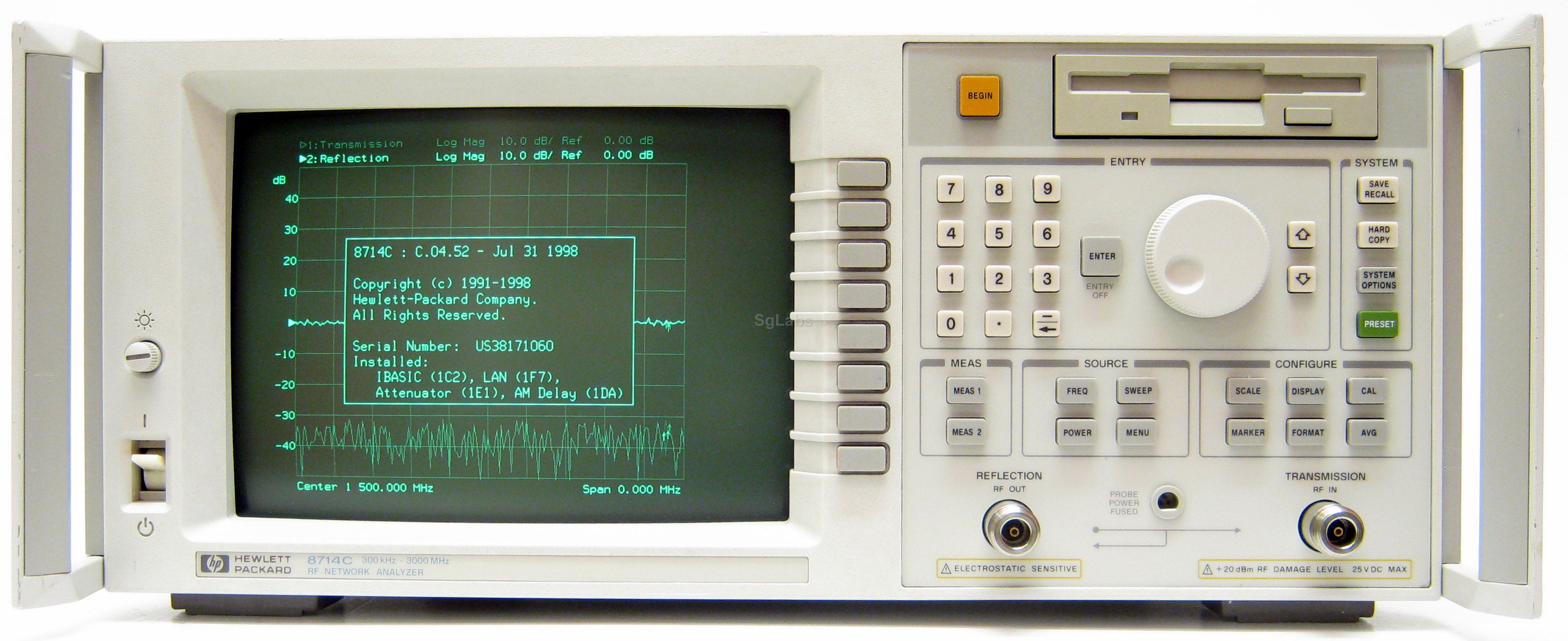

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP - Agilent 8714C is an Economy Vector Network Analyzer with an integrated transmission/reflection test set. It operates from 300 kHz TO 3 GHz. The 8714C is suited for production testing of components, networks, and cables. An internal 3.5 inch disk drive simplifies data collection and test setup.

  • Integrated transmission/reflection test set with narrowband and broadband detection
  • "Real time" sweep speed (50 ms/sweep), synthesized 1 Hz resolution source, and 100 dB of system dynamic range
  • Internal 3.5-inch disk drive (LIF/DOS formats) and VGA interface
  • Internal Agilent Instrument BASIC (IBASIC) capability
  • TCP/IP-compliant Ethertwist LAN interface option
  • AM delay and fault location/SRL options
Features
  • Frequency: 300 kHz - 3 GHz
  • Test set Trasmission Reflection Intergated
  • Source internal
  • Channels 2
  • Interface GP-IB - Parallel
  • Connector: N
  • Max. Frequency: 3 GHz
  • Min. Frequency: 300 kHz
  • Channels: 2
  • Source: internal
  • Test set: Trasmission Reflection
  • Interface: GP-IB - Parallel
