HP Agilent Keysight, 8904A

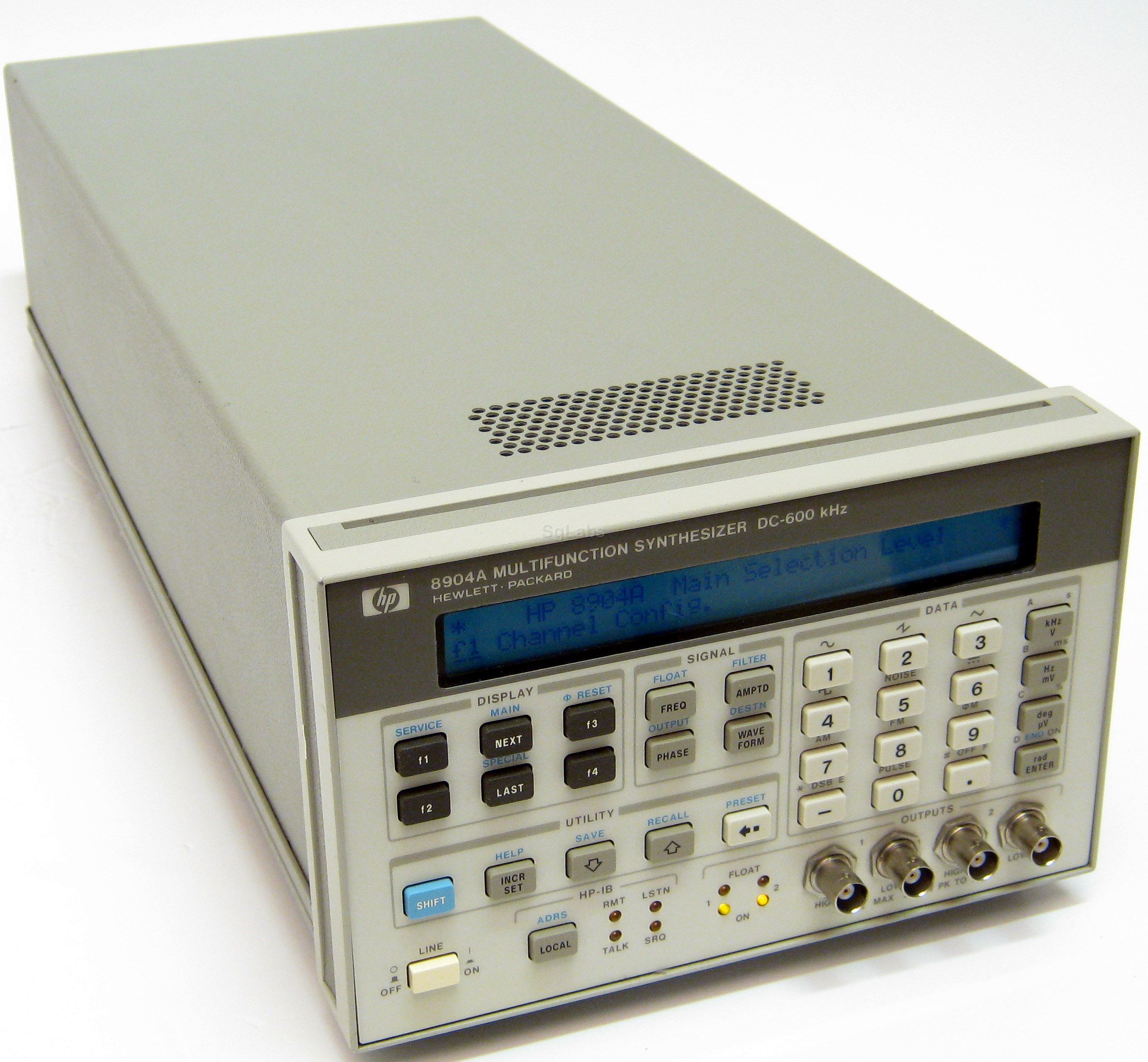

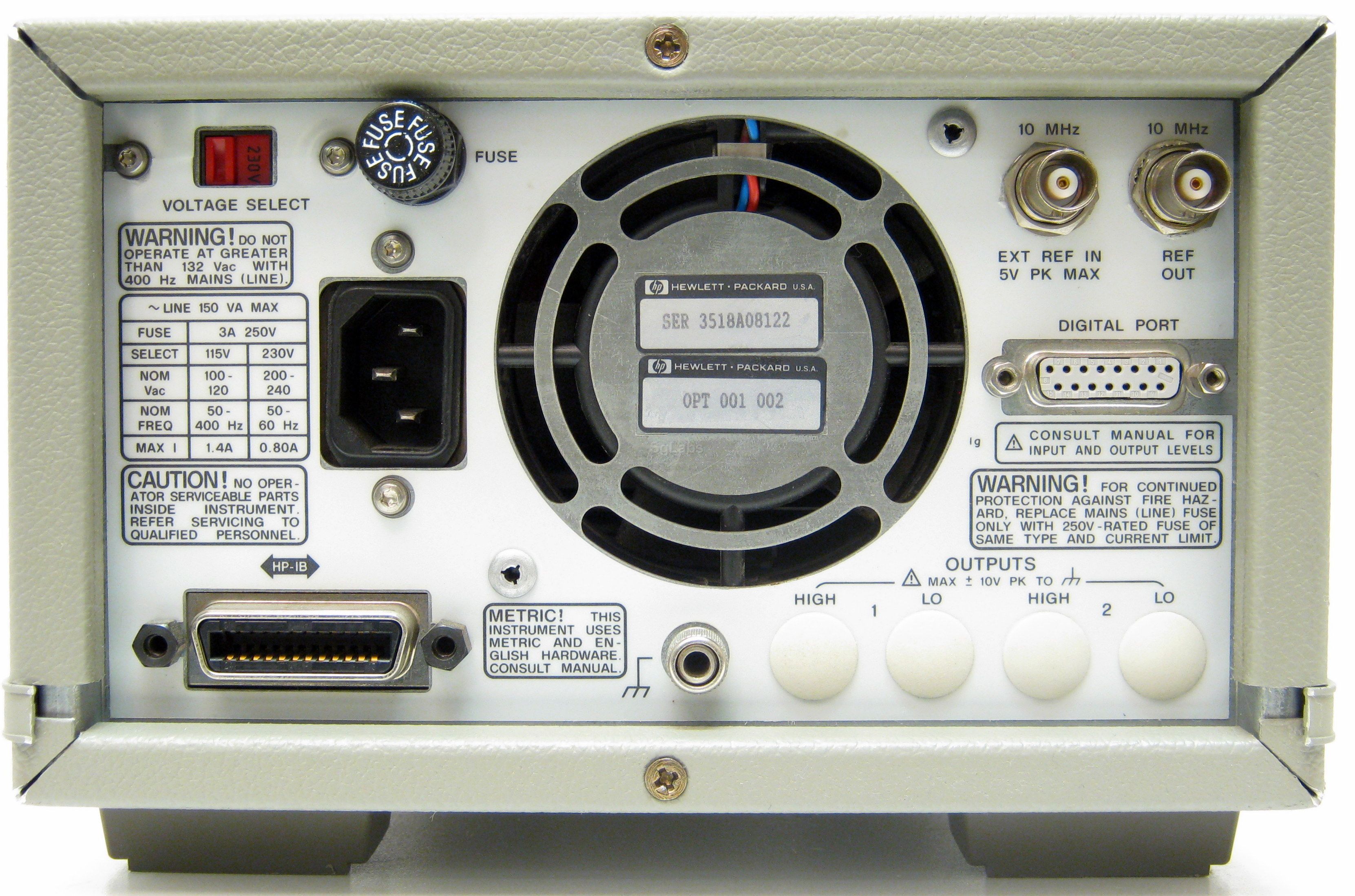

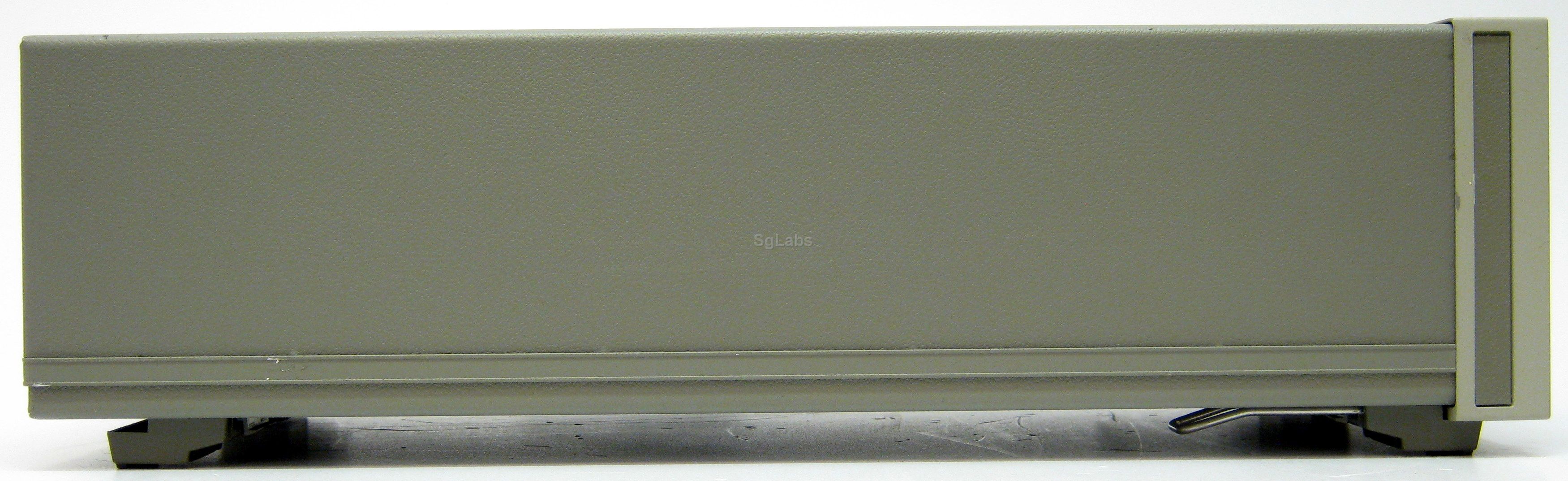

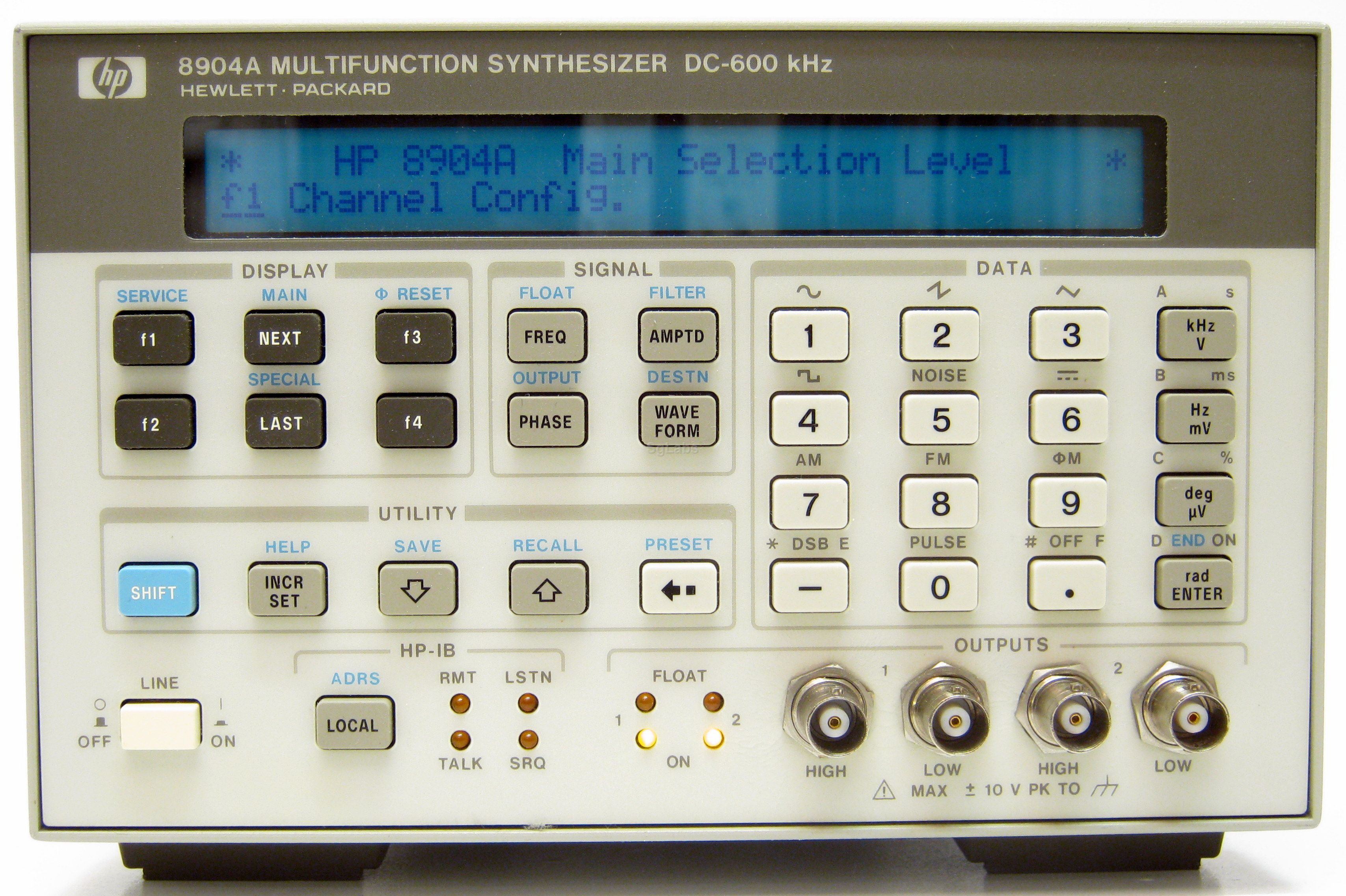

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP Agilent 8904A Multifunction Synthesizer uses VSLIC technology to create complex signals from six fundamental waveforms.The standard HP 8904A digitally synthesizes precise sine, square, triangle, ramp, white noise, and dc waveforms and routes these signals to a signal output.

Features
  • Frequency Range Sine Wave DC to 600 kHz
  • Frequency Range Square, Ramp, Triangle Wave DC to 50 kHz
  • Frequency resolution 0.1 Hz
  • 12 bit direct digital synthesis
  • 1 output (2 with Opt.002)
  • 4 internal channels
  • Modulation AM, FM, ΦM, DSBSC or Pulse and Summation(Opt.001)

Options Description

  • Option 001: Add three internal channels, channel A modulation, channel summation, and channel A sequence capability
  • Option 002: adds 50 ohm second channel
  • Max. Frequency: 600 kHz
  • Min. Frequency: DC
  • Max. Level: 10 V p-p
  • Min. Level: 0 V
