HP Agilent Keysight, HP 4276A

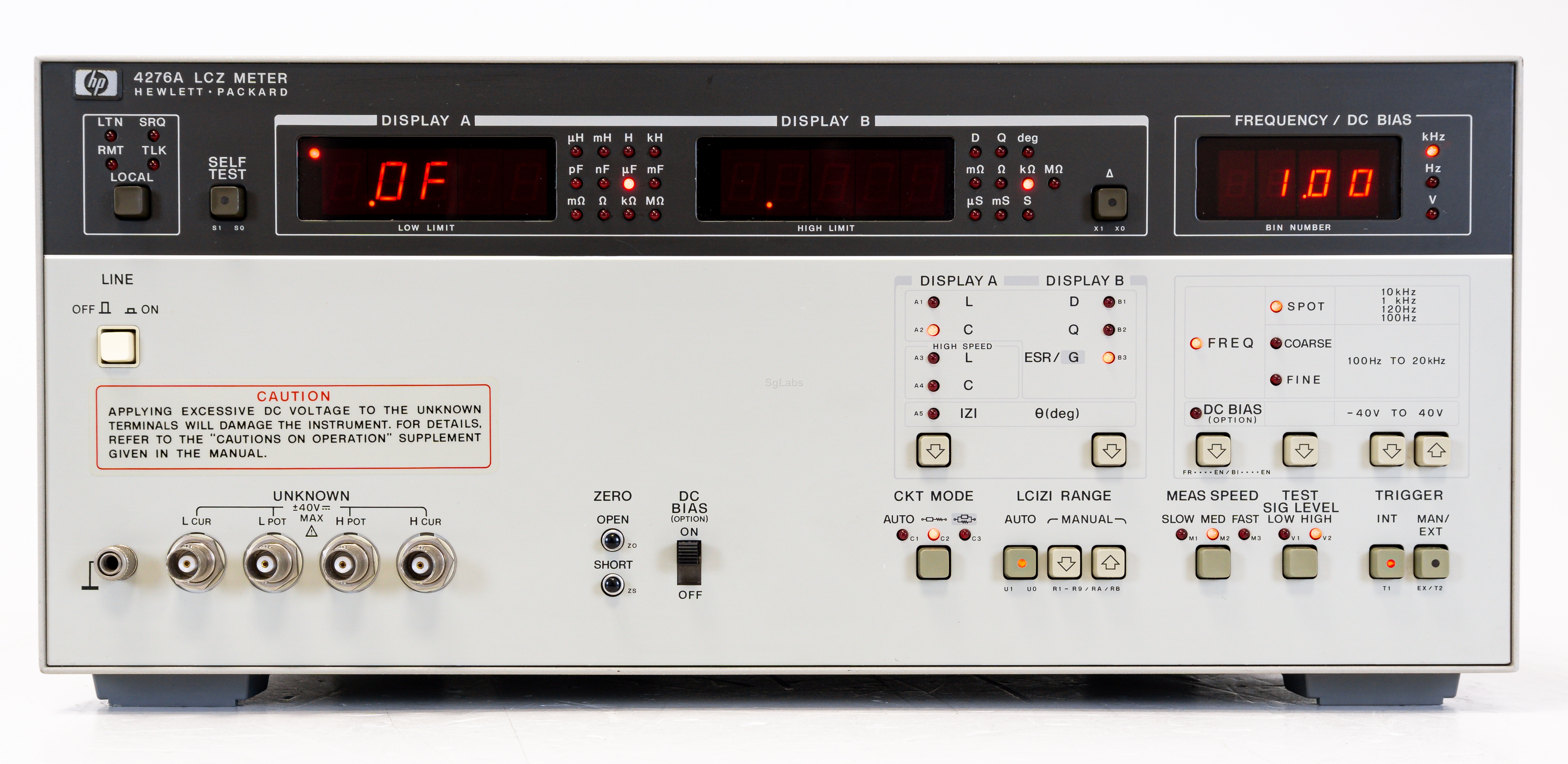

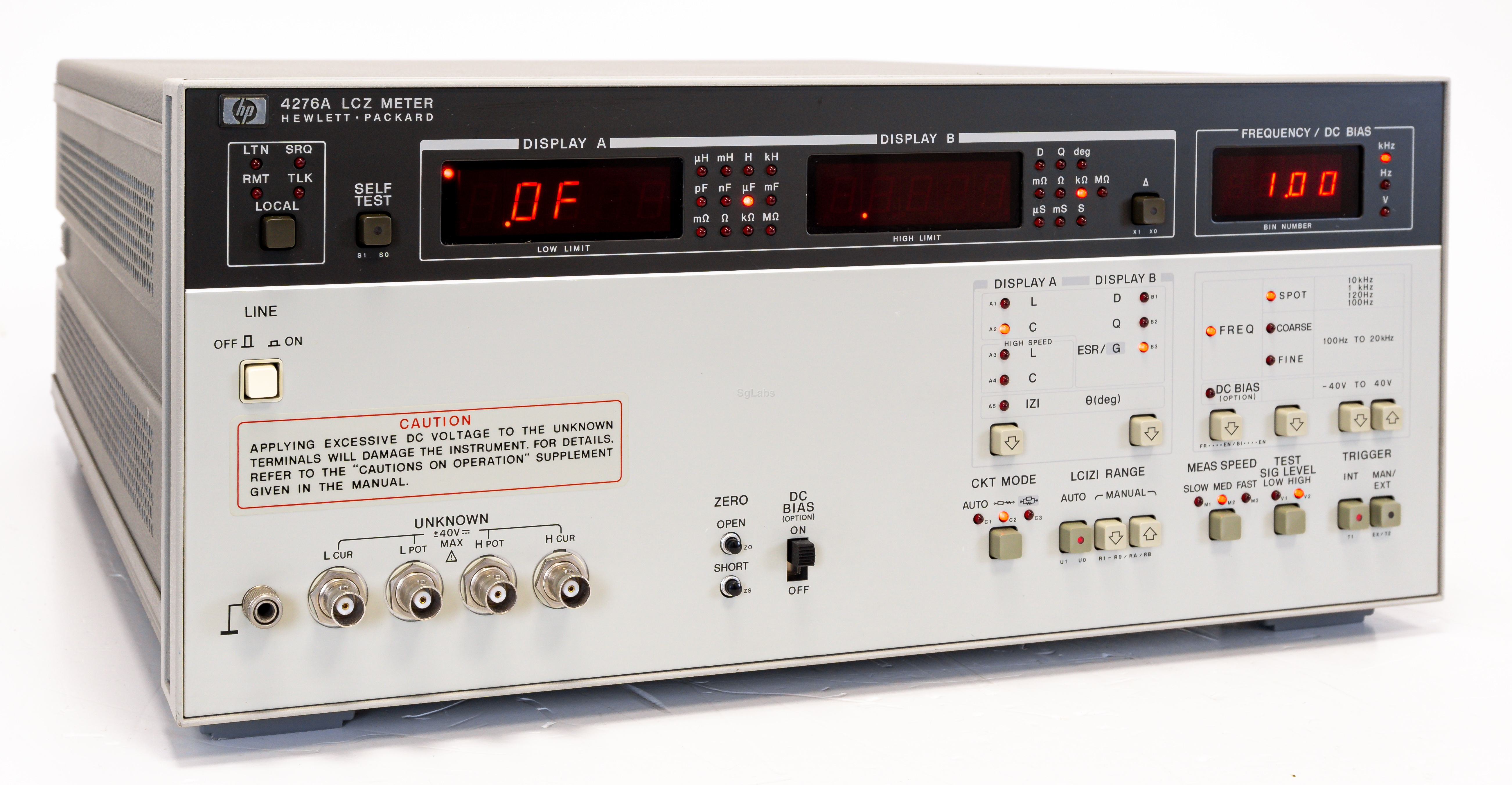

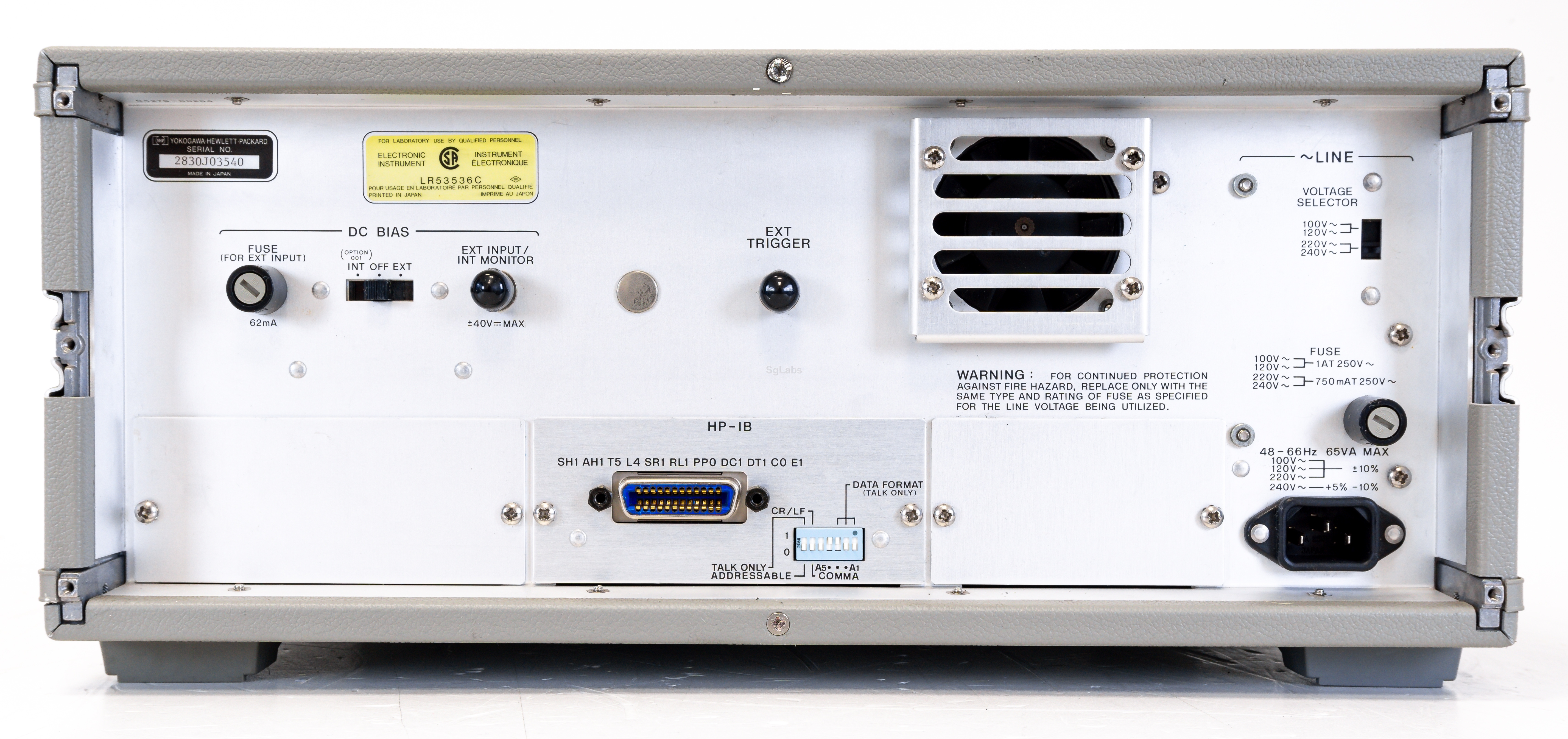

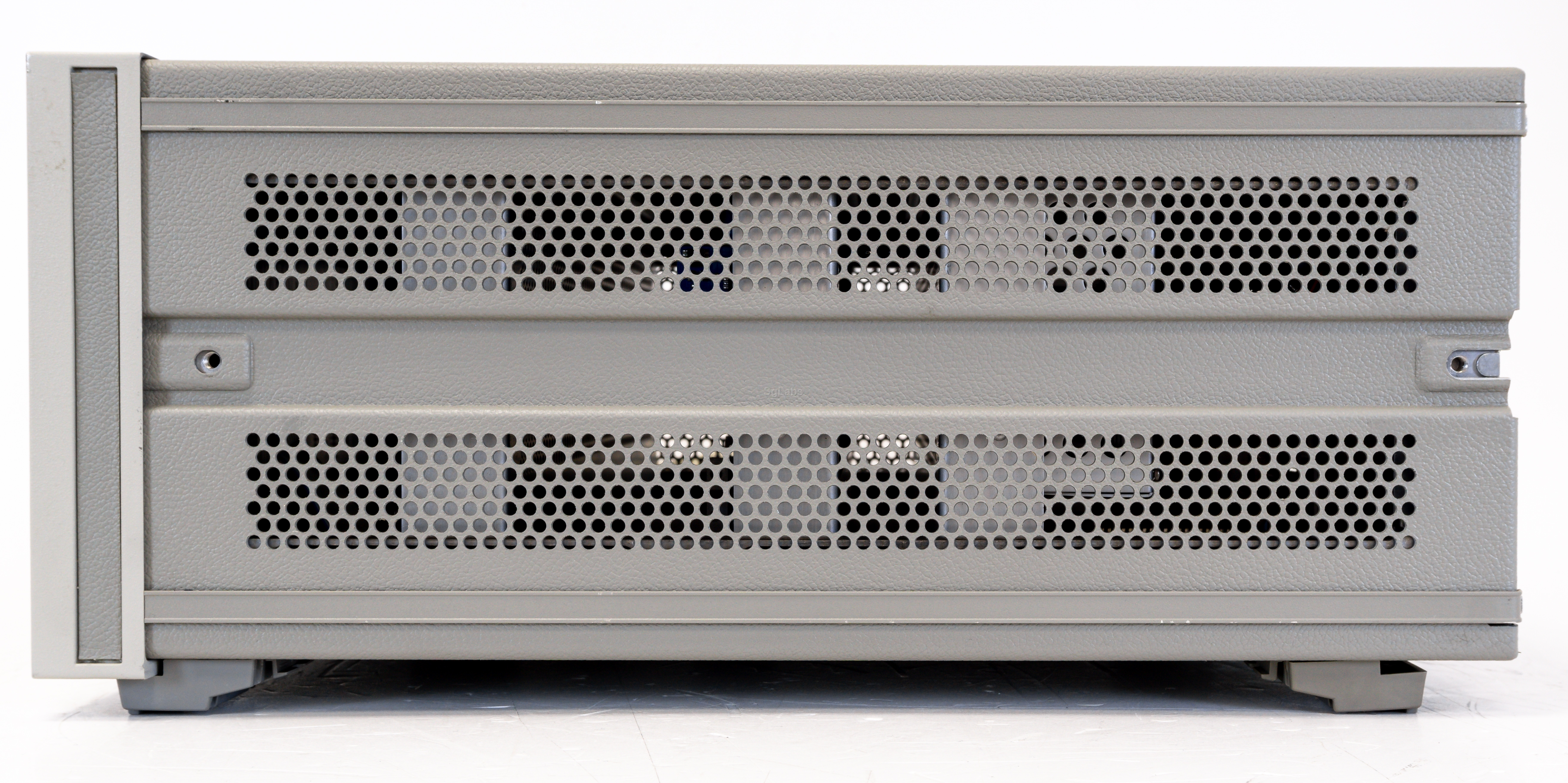

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The 4276A LCZ Meter is a general purpose impedance measuring instrument designed to measure circuit components such as capacitors and inductors using frequency and dc bias conditions identical to those of the intended application. The unit features variable test frequency (100Hz to 20kHz), multiple parameters (L, C, |Z|, D, Q, ESR, G, ) with fully automatic high speed measurements, and 4 1/2-digit resolution. It has an impedance range of 100 mohms to 10 Mohms.
Features
  • Frequency range: 100 Hz - 20 kHz
  • Impedance range: 100mΩ -10 MΩ
  • C range: 10 pF -10 mF
  • L range: 100 µH - 1 kH
  • Display digit: 4½
  • Frequency range: 100 Hz - 20 kHz
  • Capacity max. min.: 10 pF -10 mF
  • inductance ranege: 100 µH - 1 kH
  • Max. ohm: 10 MOhm
  • Min. ohm: 100 mOhm
