HP Agilent Keysight, 16034E
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

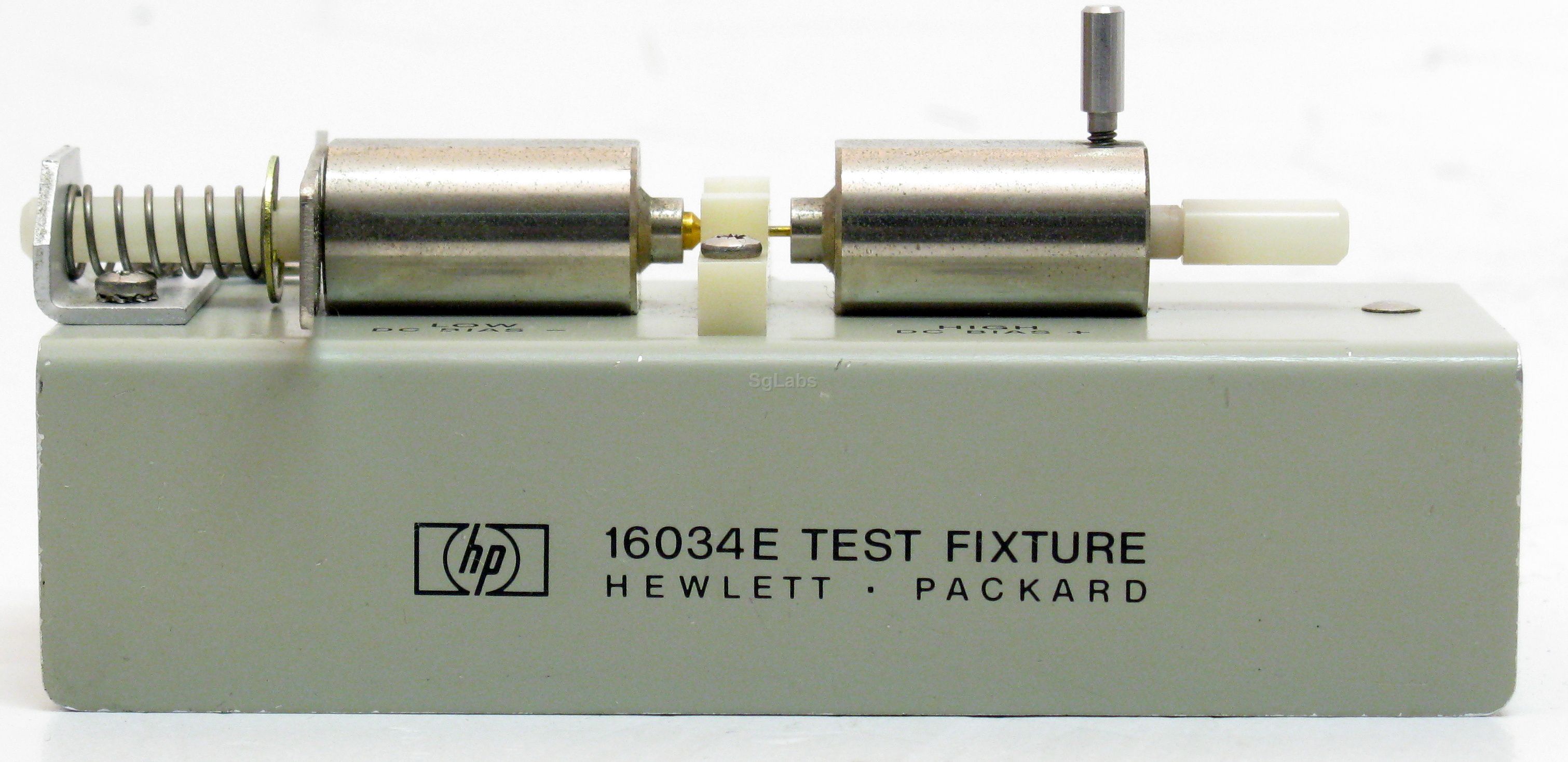

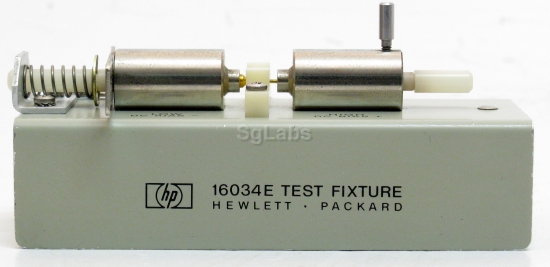

The 16034E test fixture is designed for impedance evaluations of SMD components. The minimum SMD size that this fixture is adapted to evaluate is 1.6(L) x 0.8(W) [mm].
Features
  • Measurement Instruments: 4192A, 4194A(Impedance Mode), 4263B, 4278A, 4279A, 4284A, 4285A, 4294A, E4980A
  • Frequency: DC to 40MHz
  • DC Bias:+/- 40V peak max (AC+DC)
  • Operating Temperature: 0 to 55 degrees C

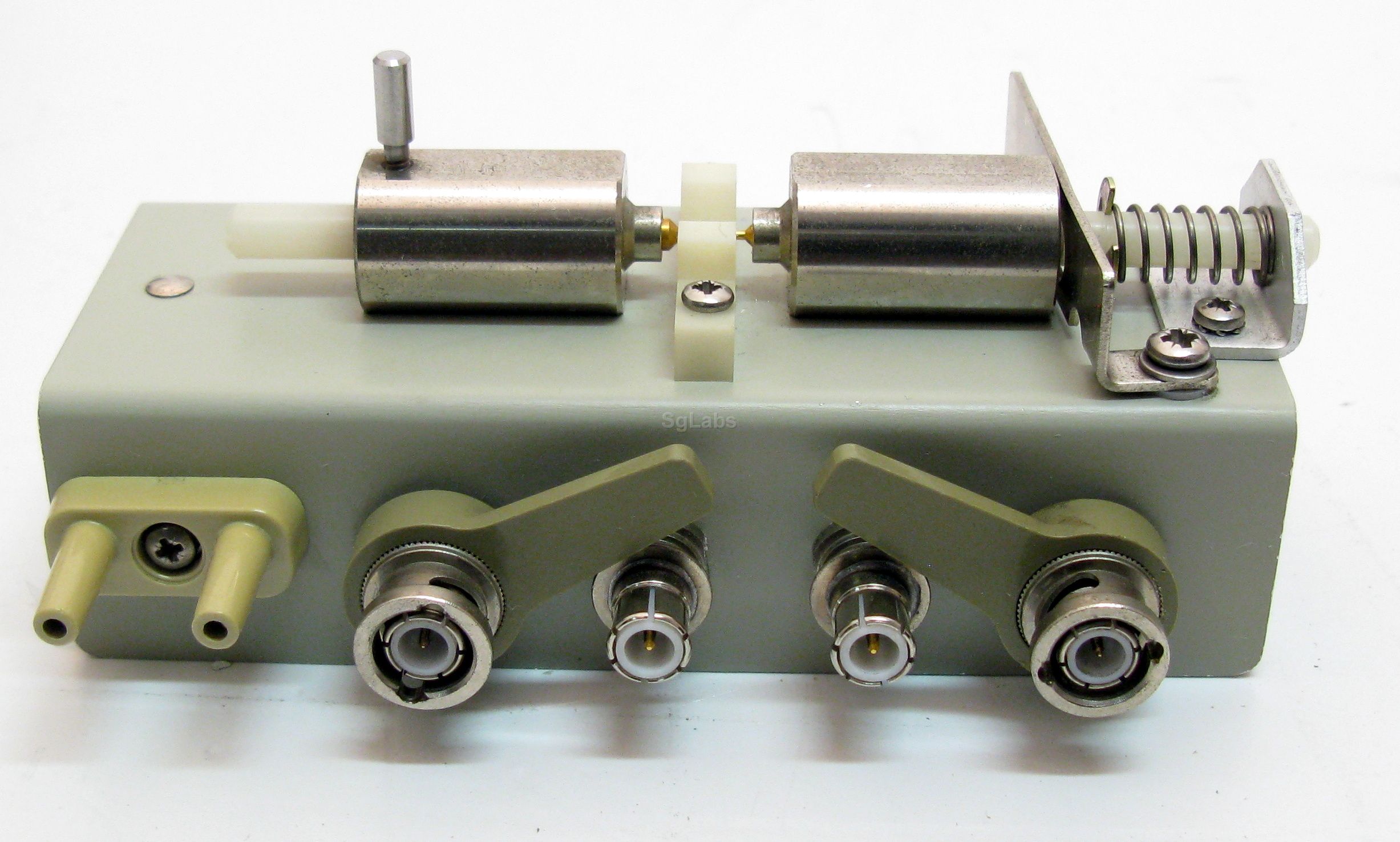

  • Terminal Connection: BNC, 4 terminal-pair
  • Dimensions(approx.): 128(W) x 60(H) x 71(D)mm
  • Frequency range: DC-40MHz
