HP Agilent Keysight, 35670A

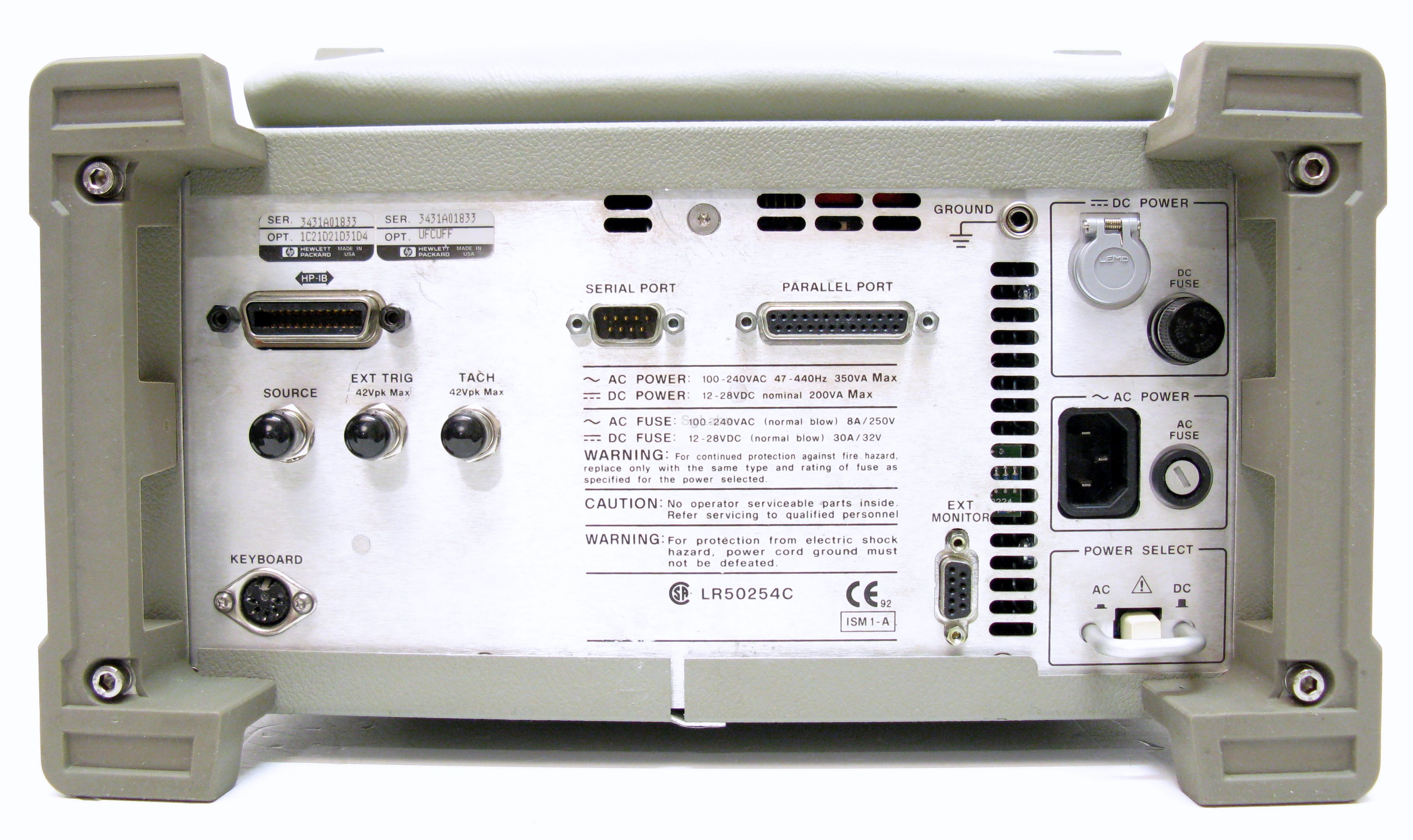

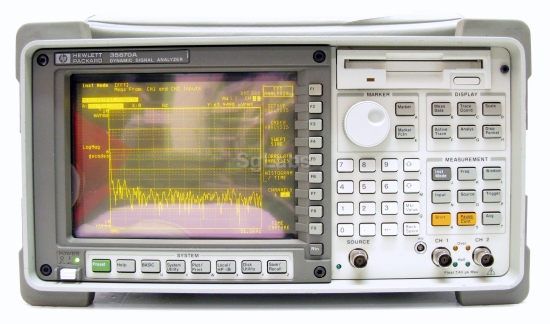

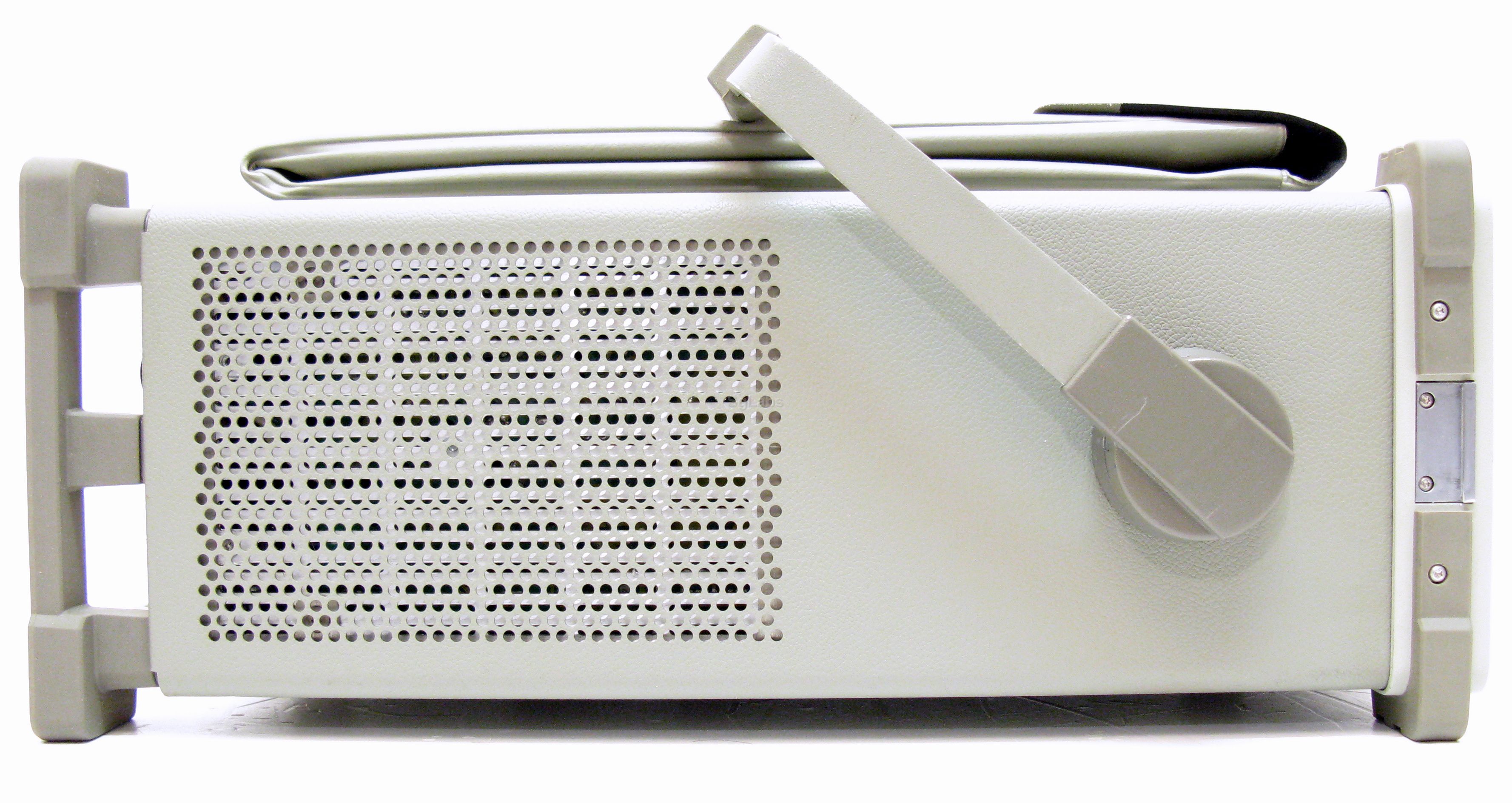

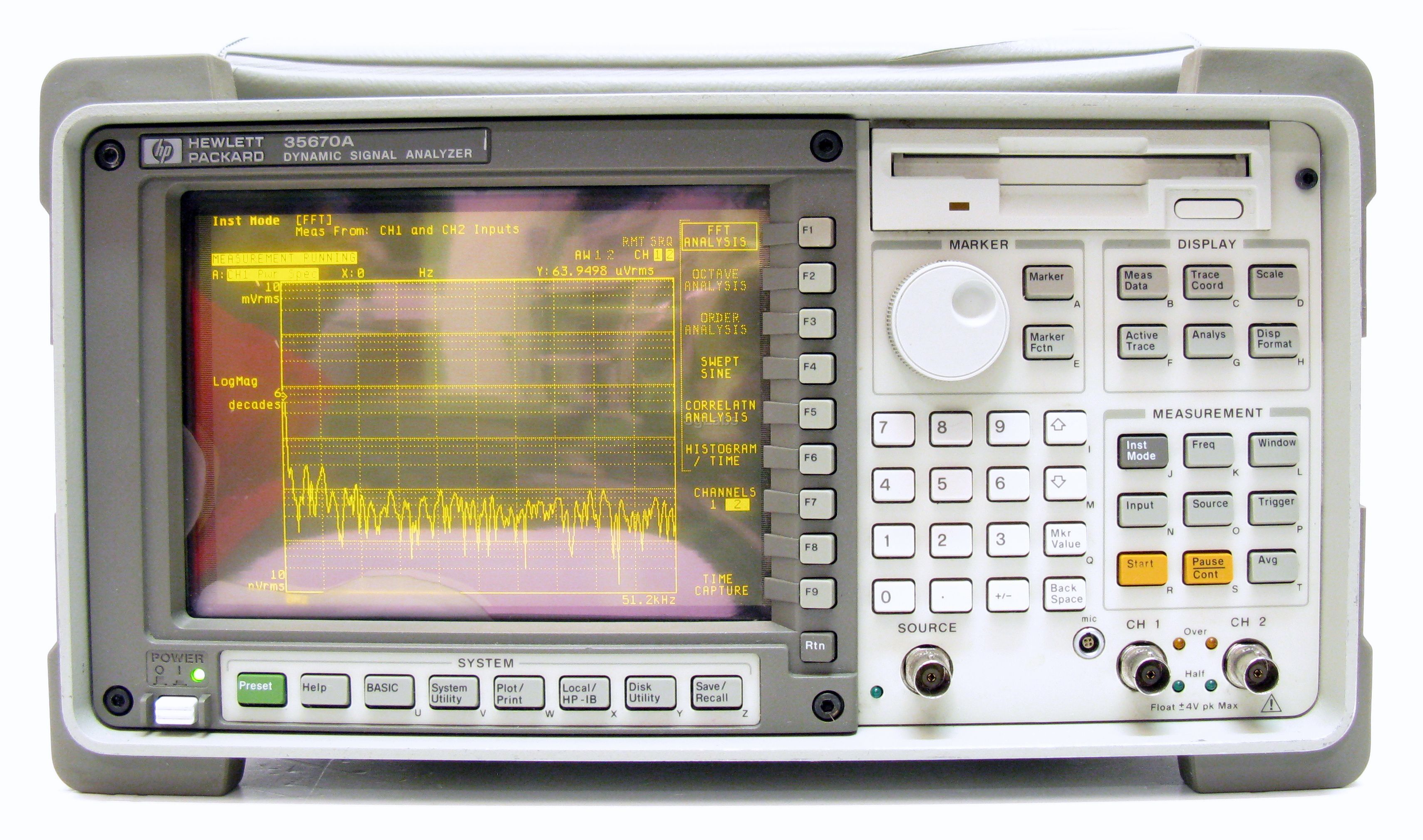

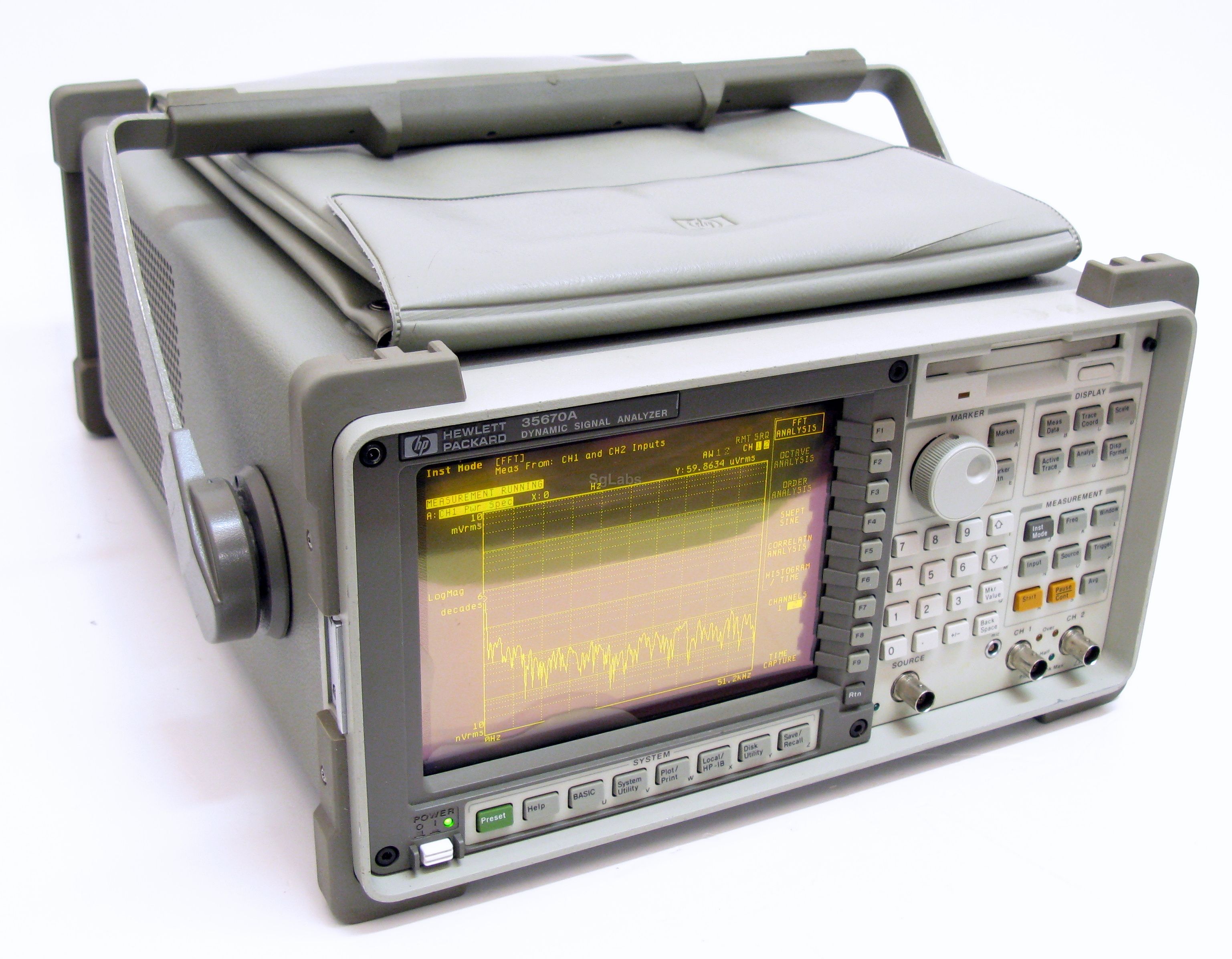

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP 35670A is a portable two- or four-channel dynamic signal analyzer with the versatility to be several instruments at once. Rugged and portable, it’s ideal for field work. Yet it has the performance and functionality required for demanding R&D applications. Optional features optimize the instrument for troubleshooting mechanical vibration and noise problems, characterizing control systems, or general spectrum and network analysis.
Versatile enough to be your only instrument for low frequency analysis With the HP 35670A, you carry several instruments into the field in one package. Frequency, time, and amplitude domain analysis are all available in the standard instrument.
Features
  • Frequency Range: 102.4 kHz 1 channel; 51.2 kHz 2 channel; 25.6 kHz 4 channel
  • Dynamic Range 90 dB typical
  • Accuracy ±0.15 dB
  • Channel Match ±0.04 dB and ±0.5 degrees
  • Real-time Bandwidth 25.6 kHz/1 channel
  • Resolution 100, 200, 400 & 800 lines
  • Time Capture 0.8 to 5 Msamples (option UFC)
  • Source Types Random, Burst random, Periodic chirp, Burst chirp, Pink noise, Sine, Swept-Sine (option1D2), Arbitrary (option 1D4)
Options descriptions:
  • AY6 Add Two Channels (Four Total)
  • 1D0 Computed Order Tracking
  • 1D1 Real-Time Octave Measurements
  • UK4 Microphone Adapter and Power Supply
  • 1D2 Swept-Sine Measurements
  • 1D3 Curve Fit and Synthesis
  • 1D4 Arbitrary Waveform Source
  • 1C2 HP Instrument BASIC
  • UFF Add 1-Mbyte NVRAM
  • AN2 Add 4-Mbyte RAM (8 Mbytes Total)
  • UFC Add 8-Mbyte RAM (12 Mbytes Total)
  • 100 1D0 - 1D4/UFC bundle
  • Max. Frequency: 102.4 kHz
  • Min. Frequency: 122 uHz
  • Tracking generator: internal
