HP Agilent Keysight 423B Detector 12.4 GHz
You are here: RF Component » Detector

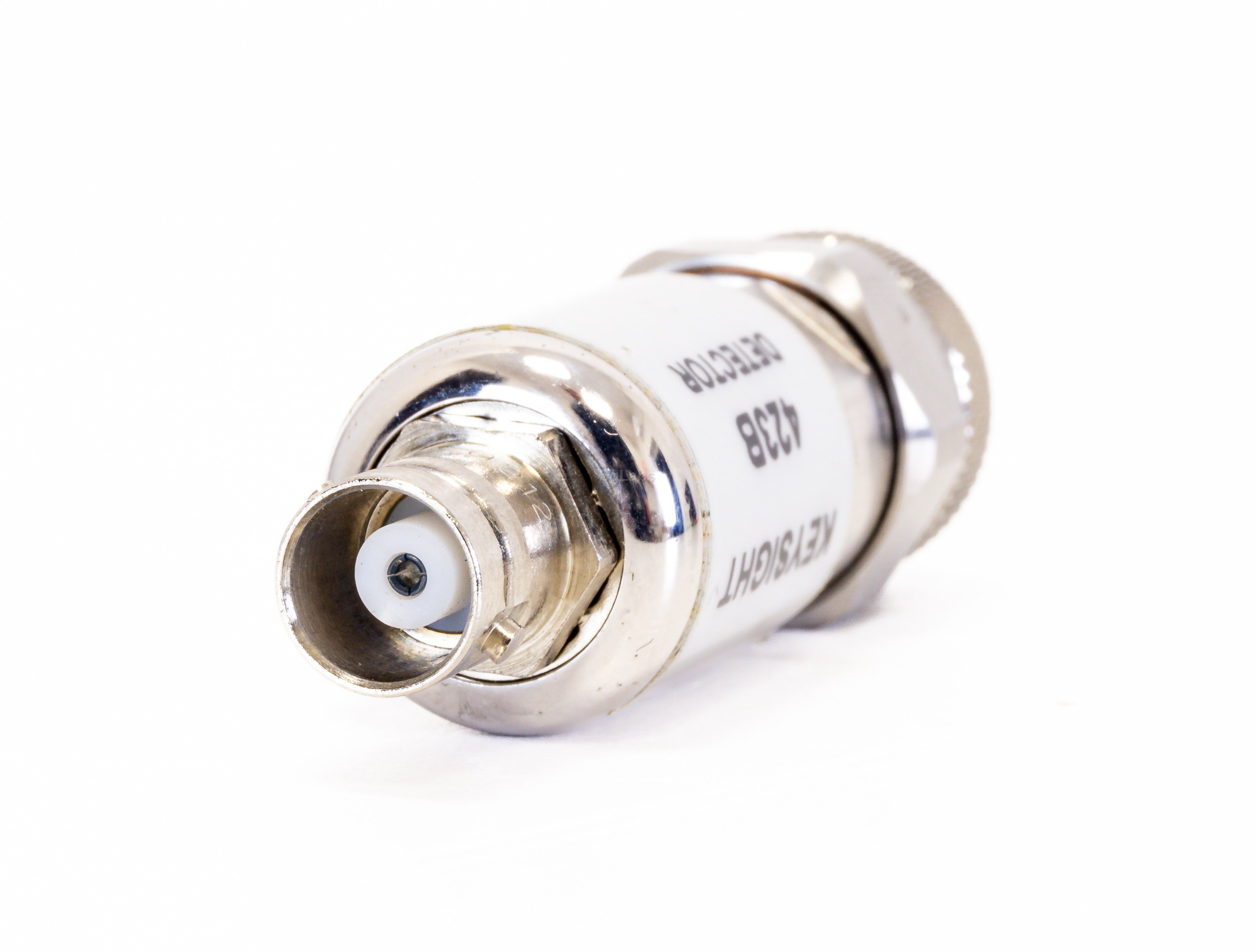

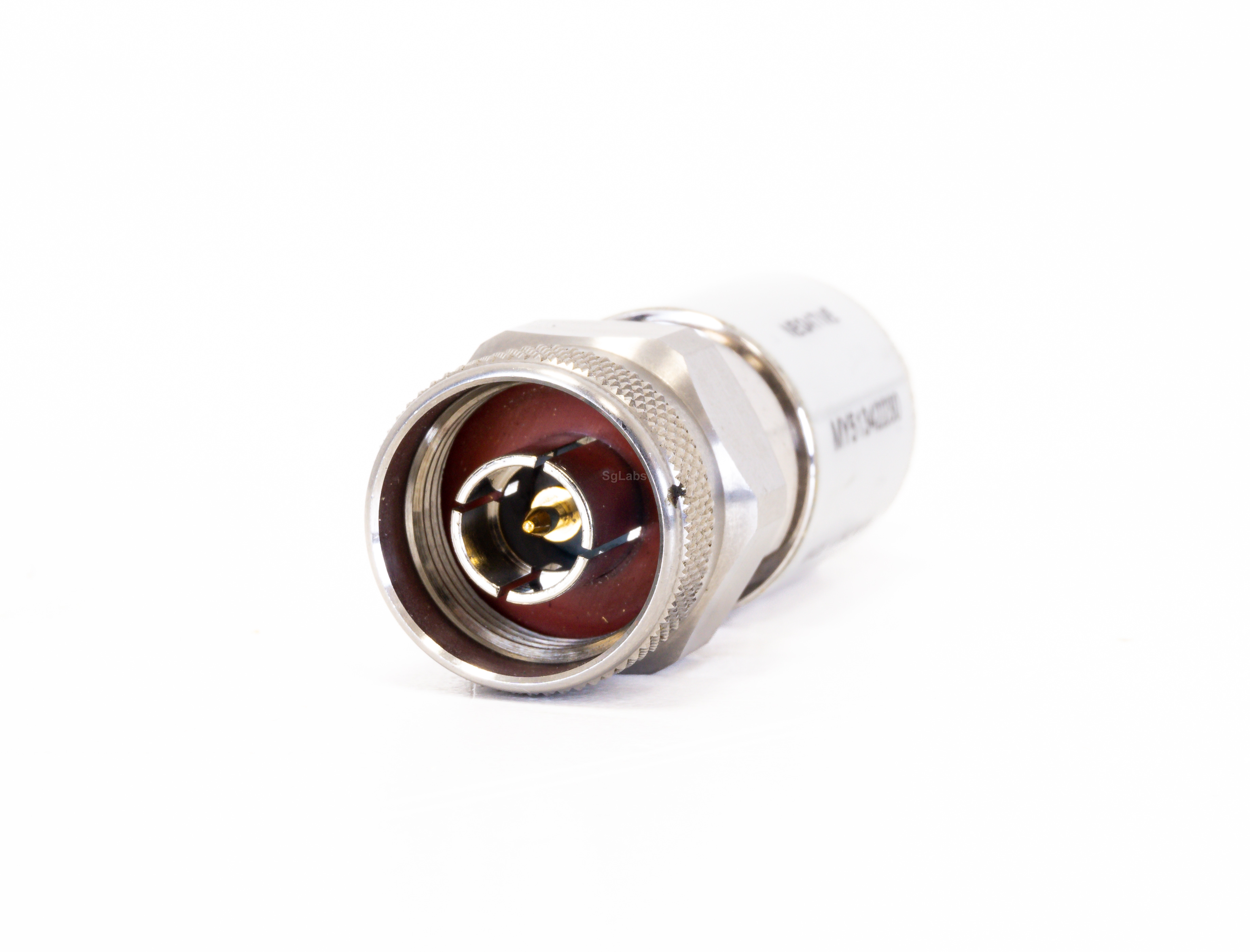

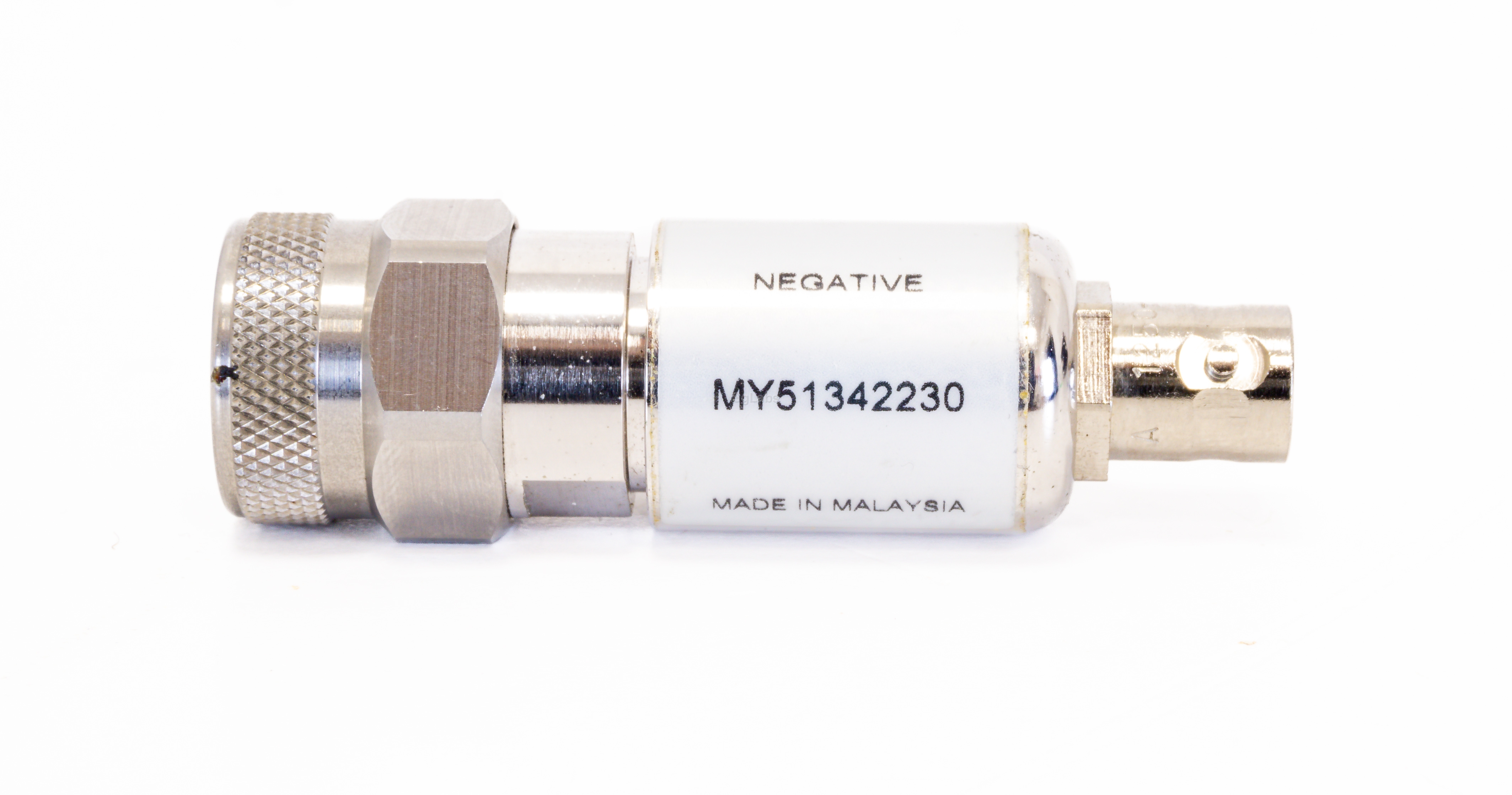

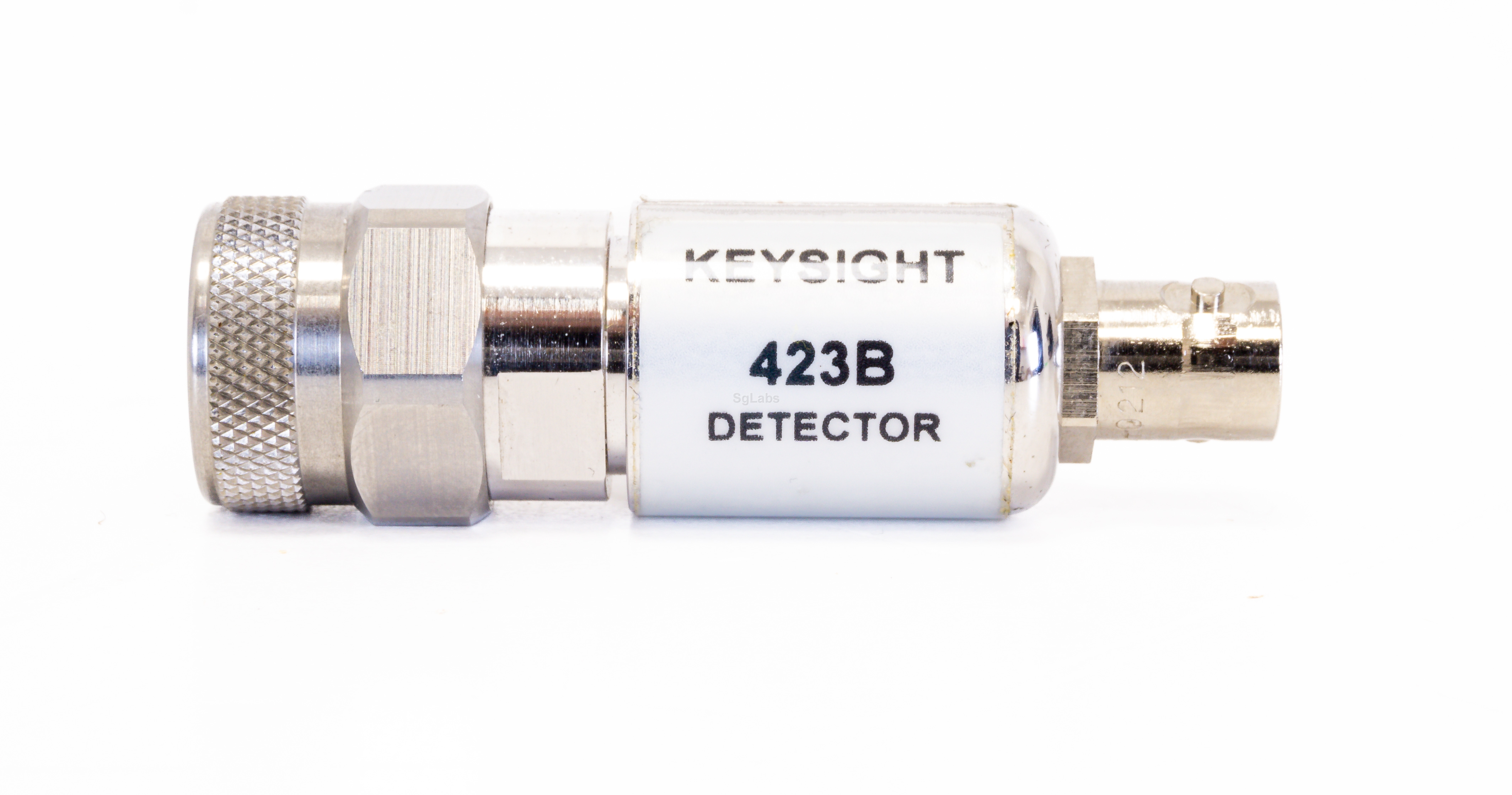

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight Agilent HP 423B Low Barrier Schottky Diode (LBSD) Detector is a state-of-the-art addition to the HP family of high performance detectors.
Features
Superior RF performance
- Frequency response: ±0.3 dB
- Maximum SWR: 1.15 (10 MHz to 4 GHz), 1.3 (4 GHz to 12.4 GHz)
- Low-level sensitivity: > 0.5 mV/uW
- Output Polarity: Negative
Power handling
- Maximum operating input power: 200 mW
- Typical short-term maximum input power (< 1 minute): 1 W
Noise
- Noise: < 50 uV
- Connector: Nm
- Connector: BNC
- Max. Frequency: 12.4 GHz
- Min. Frequency: 10 MHz
- Max. power: 200 mW
Price
€ 290,00
