HP Agilent Keysight, 84904M

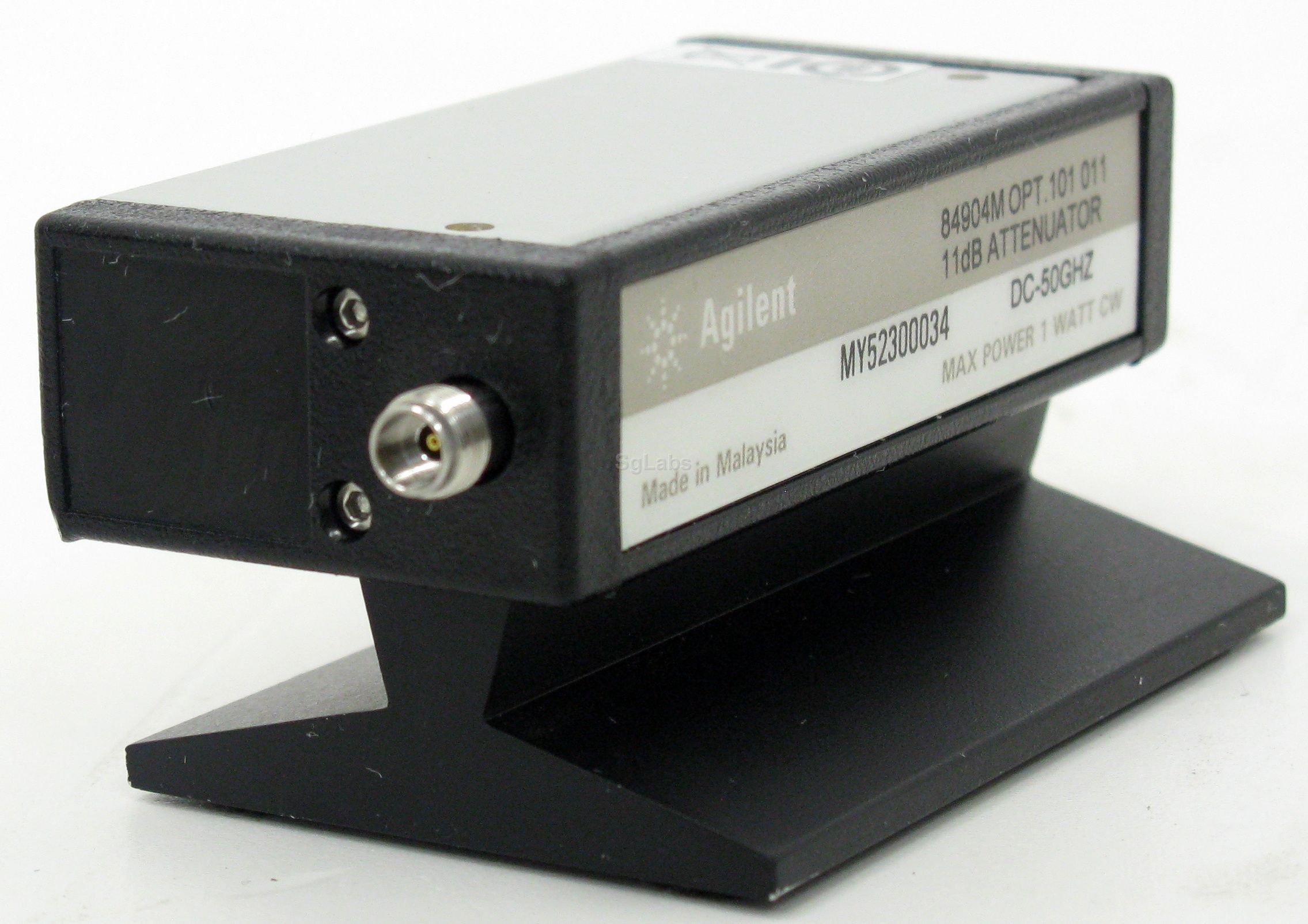

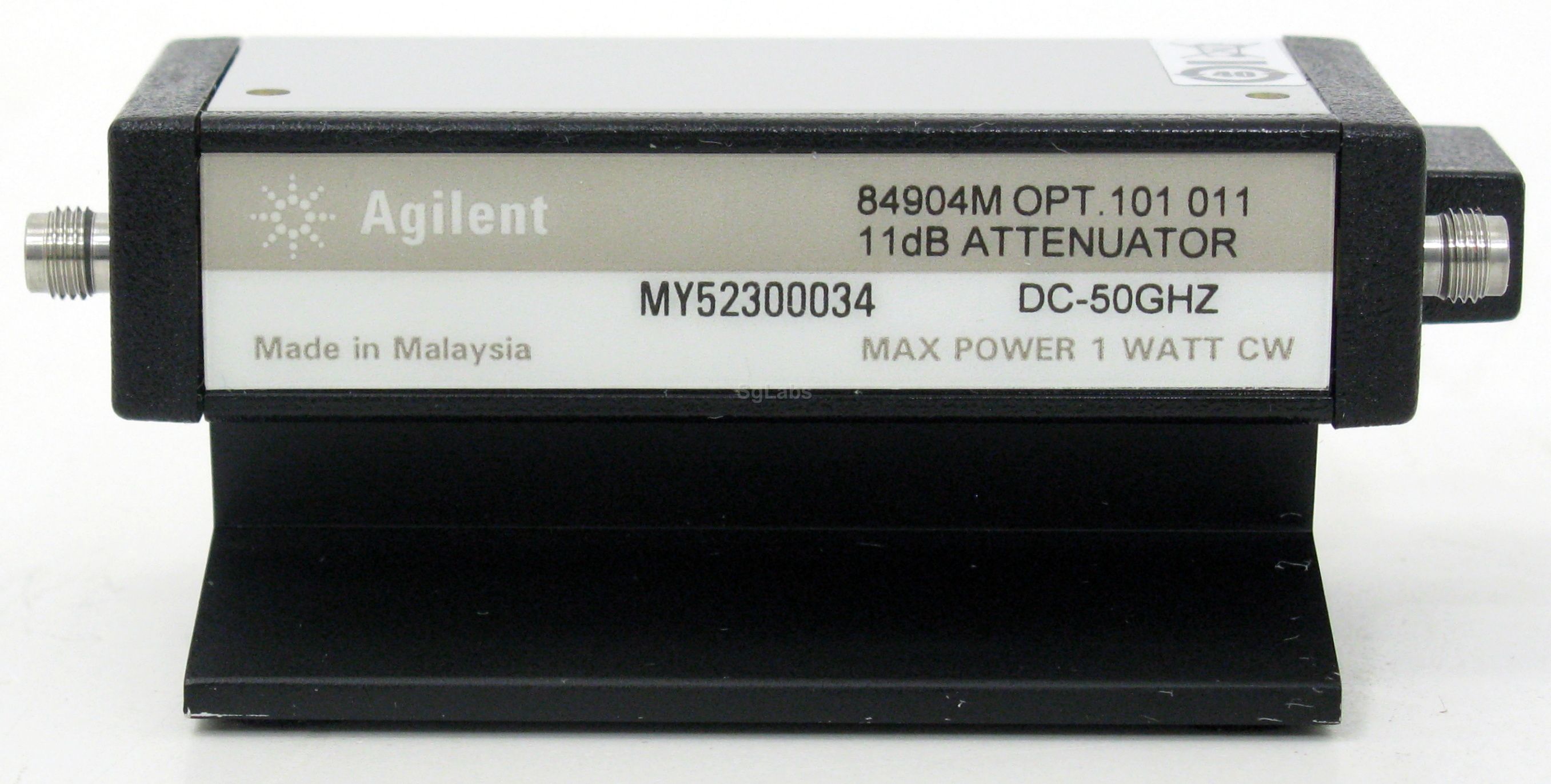

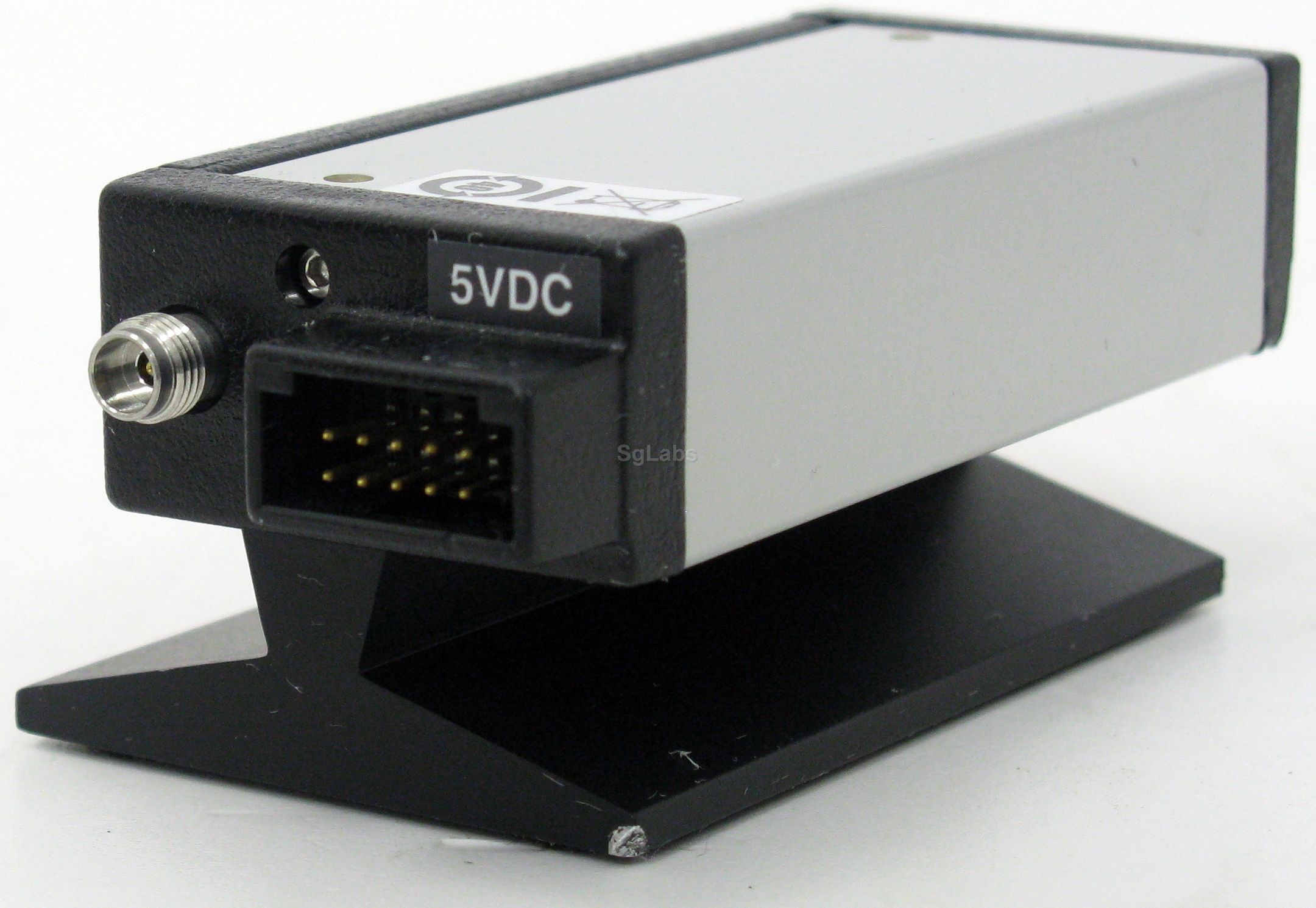

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The Keysight 84904M is a programmable step attenuator with an attenuation range of 0 to 11 dB in 1 dB steps.

Keysight List Price: 4600$
Features
  • Frequency range: dc to 50 GHz
  • Attenuation range: 0 to 11 dB, 1 dB steps
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz (dc to 40 GHz), 3.0 (to 50 GHz)
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 34 GHz, 1.8 to 40 GHz, 3.0 to 50 GHz
  • Repeatability life: 0.03 dB maximum, 2 million cycles per section
  • Maximum RF input power: 1 W (average), 50 W (peak)
  • Connector type: choice of 2.4 mm female, 2.4 mm male/female
  • Programming connector: 10-pin sockets

Options descriptions:

  • 84904M-011 5 volt solenoids supply voltage
  • 84904M-015 15 volt solenoids supply voltage
  • 84904M-024 24 volt solenoids supply voltage
  • 84904M-100 2.4 mm (f) conn, 2.4 mm (m) conn
  • 84904M-101 2.4 mm (f) conn, 2.4 mm (f) conn
  • Attenuation: 11 dB
  • Connector: 2.4mm
  • Max. Frequency: 50 GHz
  • Min. Frequency: DC
