HP Agilent Keysight E3640A 30 W Power Supply 8 V 3 A or 20 V 1.5 A
You are here: Power Supply (DC) » Single output

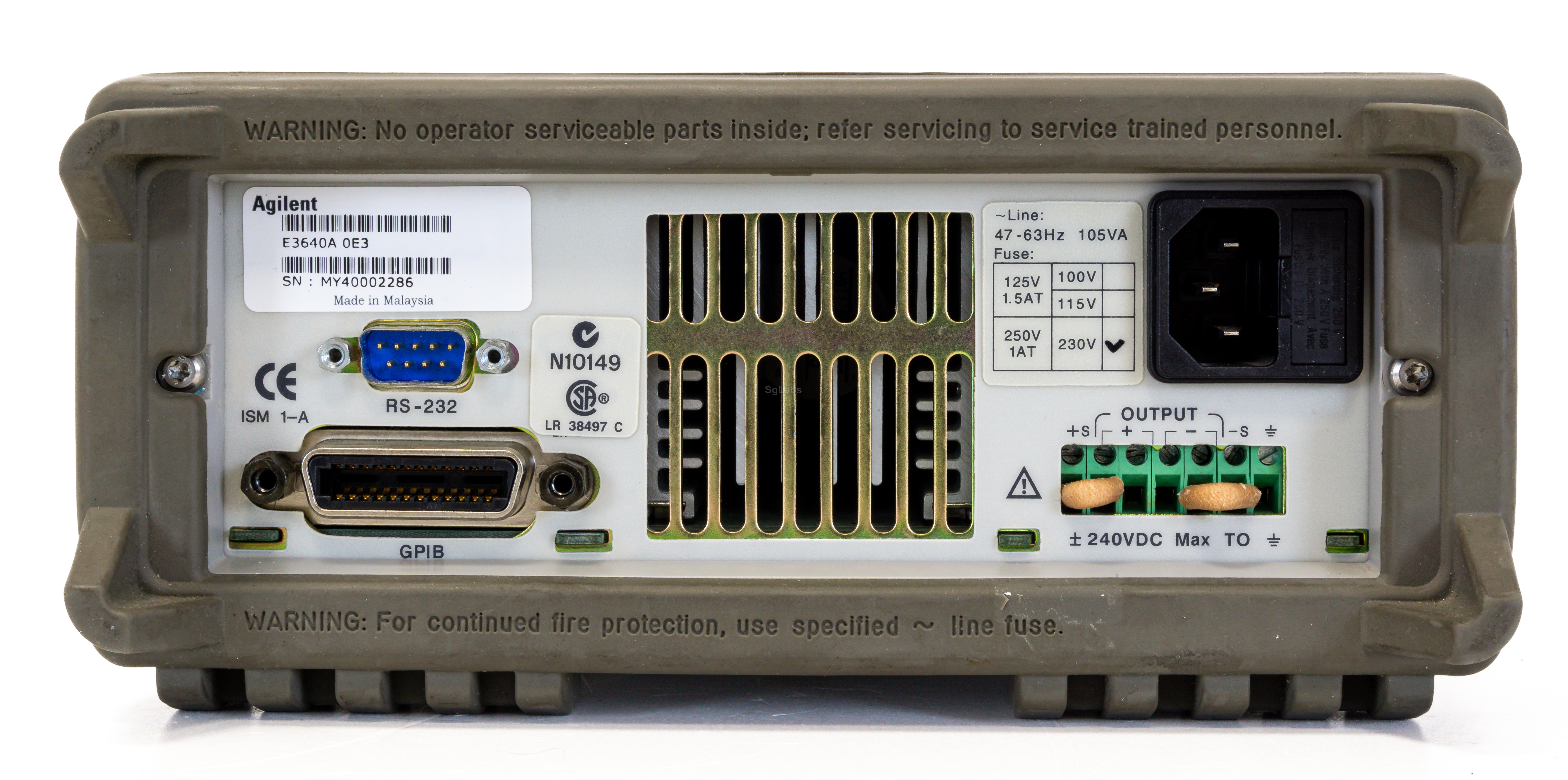

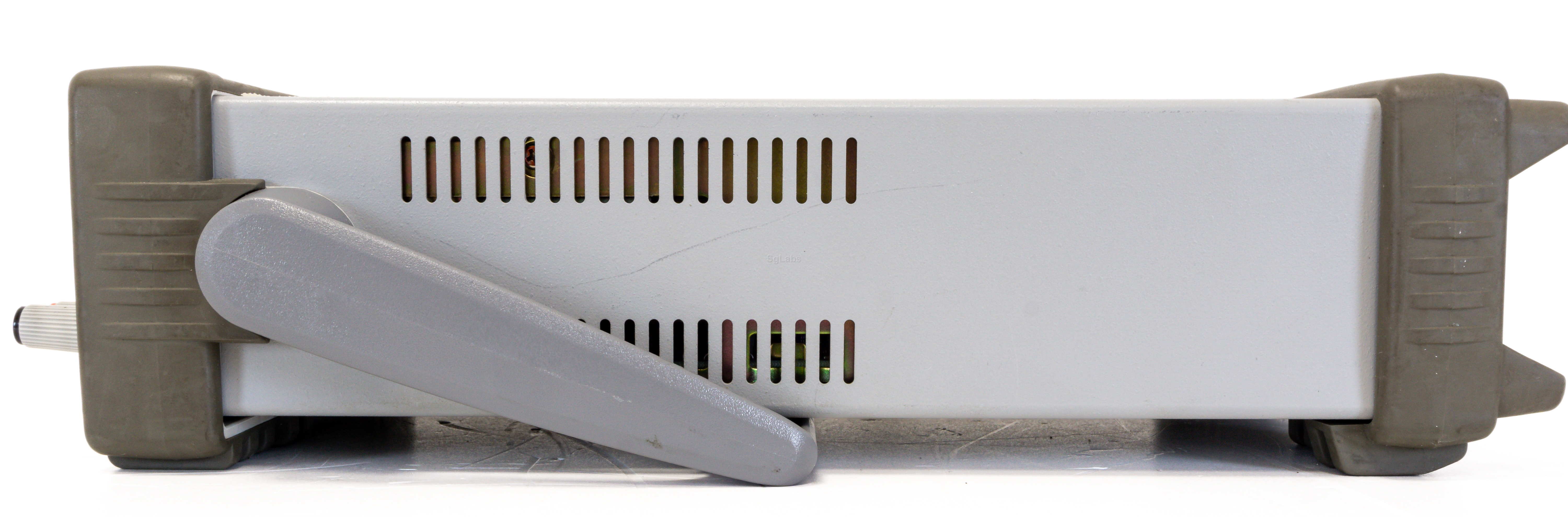

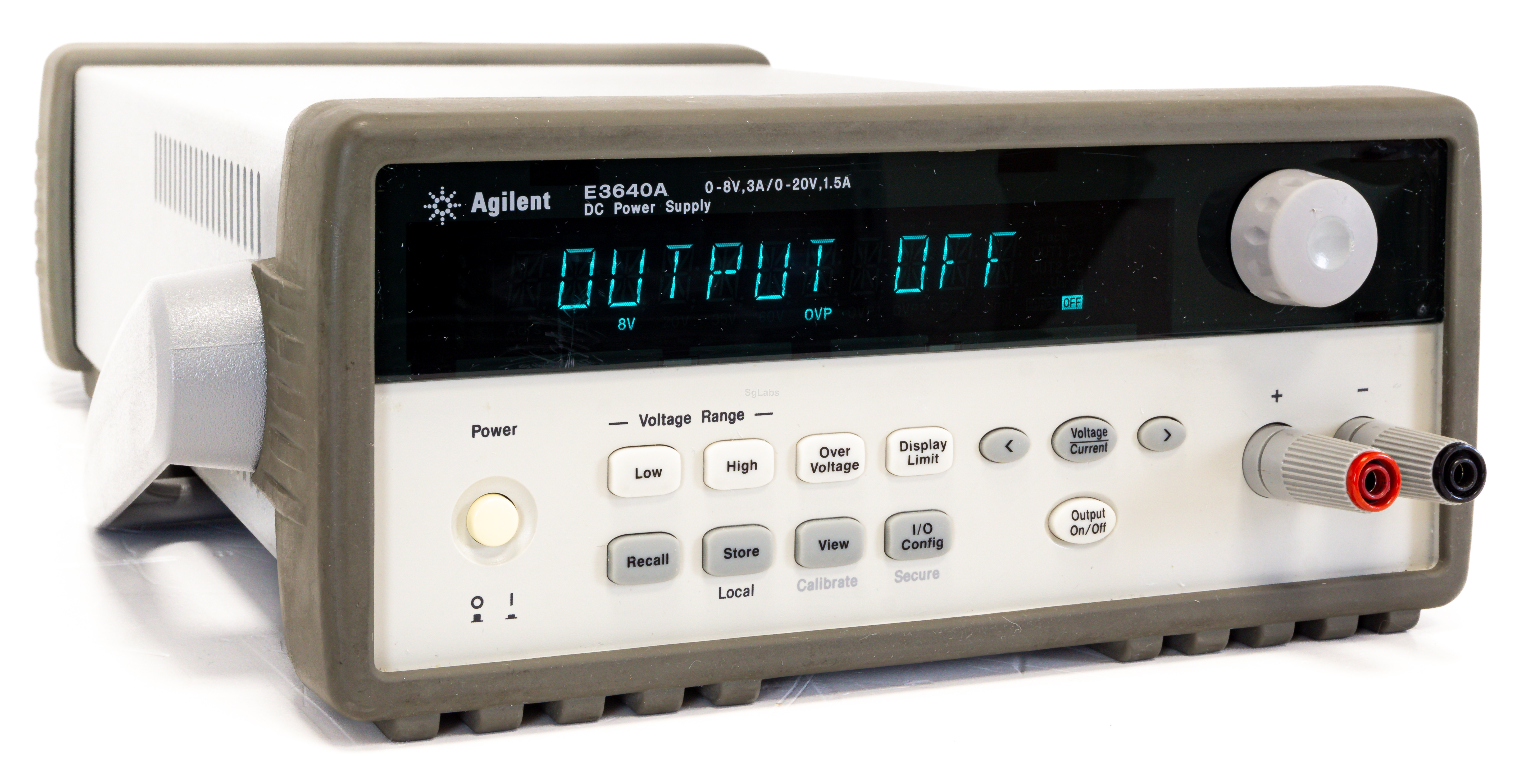

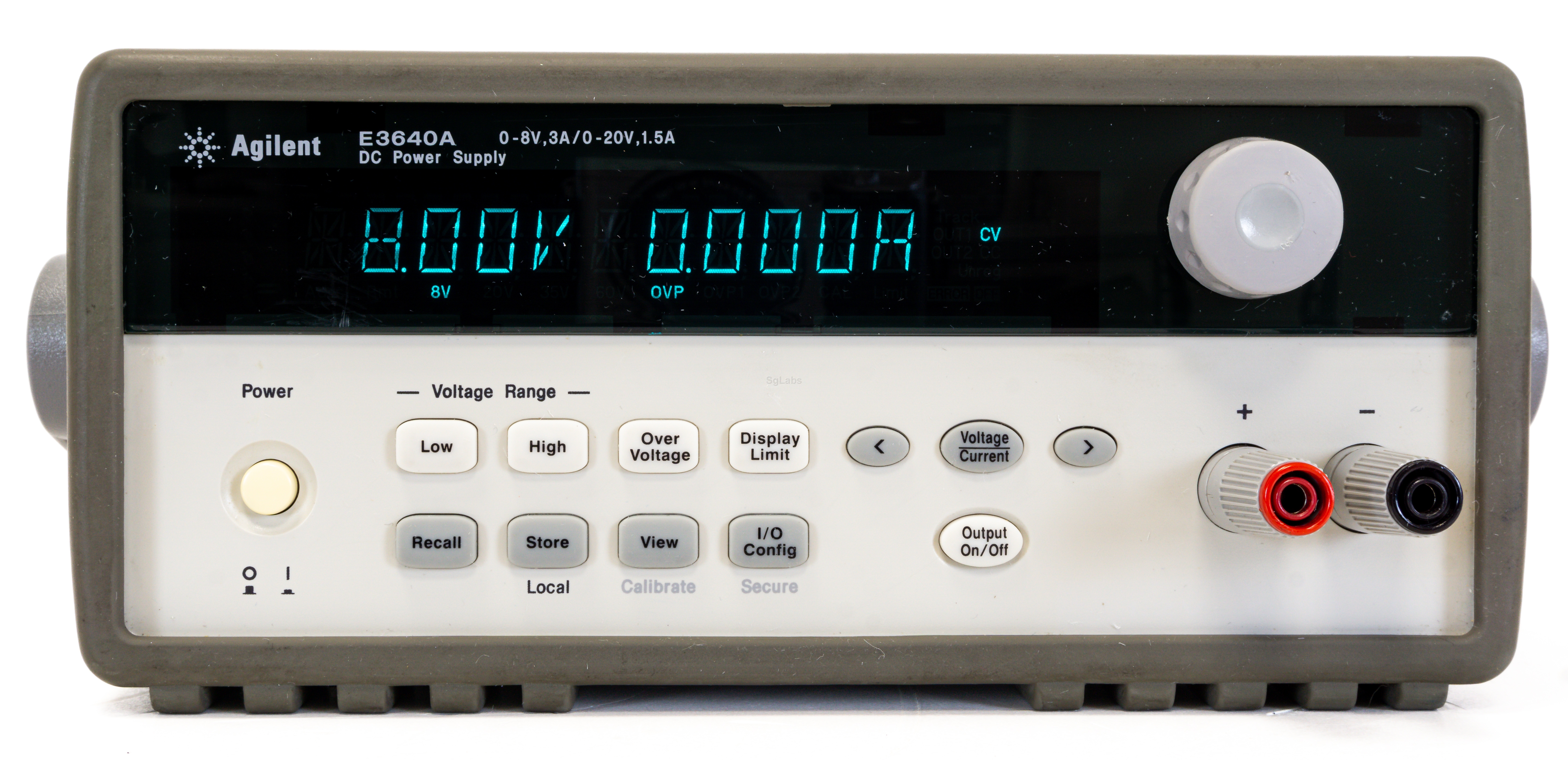

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The E3640A 30 W bench power supply has dual-range flexibility with a low and high voltage range. The low voltage range allows the power supply to output more current. The series also has models with single and dual outputs—automate tests with GPIB or RS232.
Features
Output ratings (@ 0°C to 40°C)
- Range 1: 0 to 8 V / 3 A
- Range 2: 0 to 20 V / 1.5 A
Programming accuracy (@ 25°C ±5°C), ±(% output + offset)
- Voltage: <0.05% + 10 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
- Current: <0.2% + 10 mA
Ripple & noise 20 Hz to 20 MHz
- Normal Mode Voltage: <5 mVpp / 0.5 mVrms
- Normal Mode Current: <4 mArms
Readback accuracy (@ 25°C ±5°C), ±(% output + offset)
- Voltage: <0.05% + 5 mV (<0.1% + 25 mV for output 2 of E3646/47/48/49A)
- Current: <0.15% + 5 mA (<0.15% + 10 mA for output 2 of E3646/47/48/49A)
- Max current: 3A
- Display: VFD
- Interface: GPIB RS232
- Max. Voltage: 20V
Price
€ 250,00
