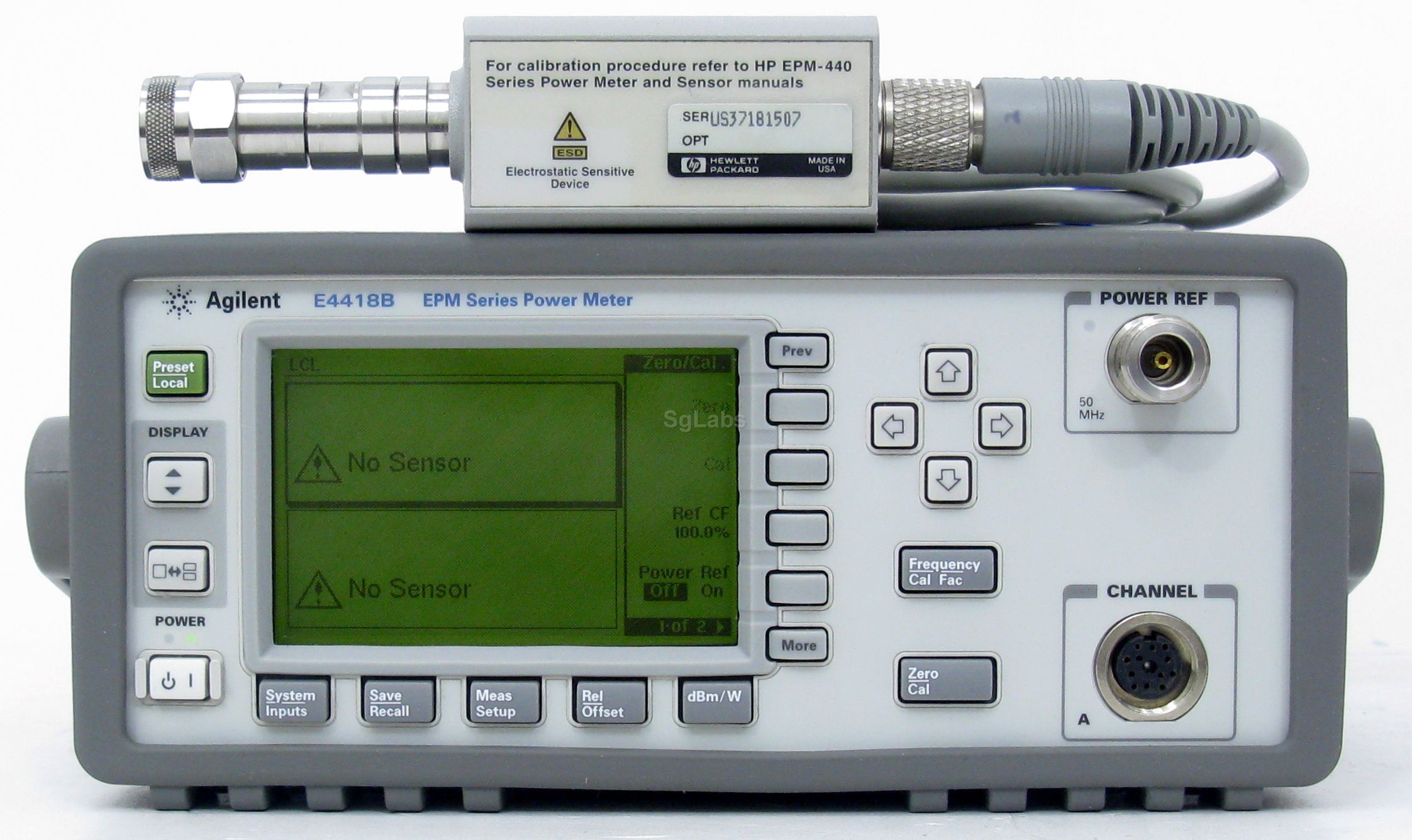

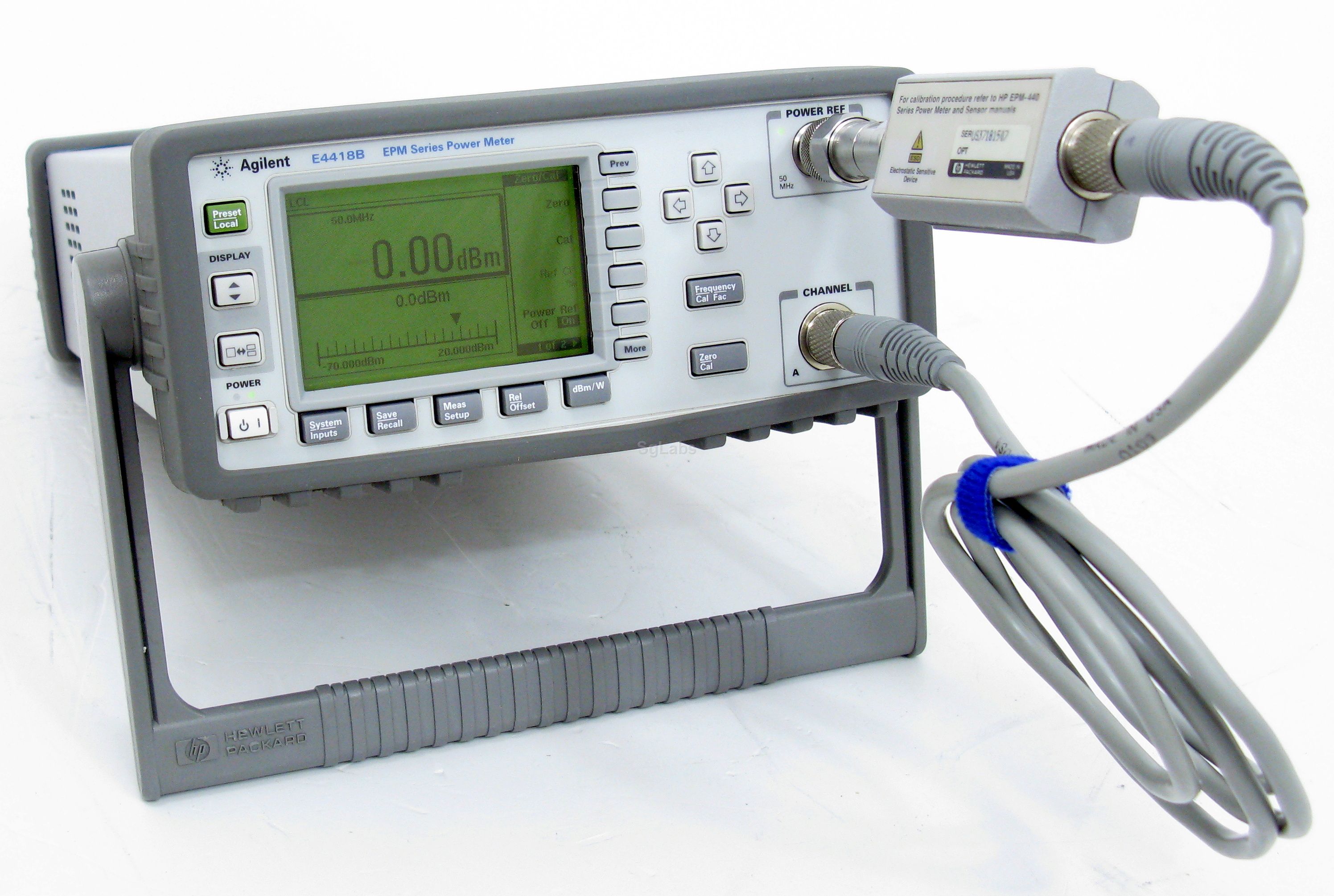

HP Agilent Keysight, E4418B + ECP-E18A
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

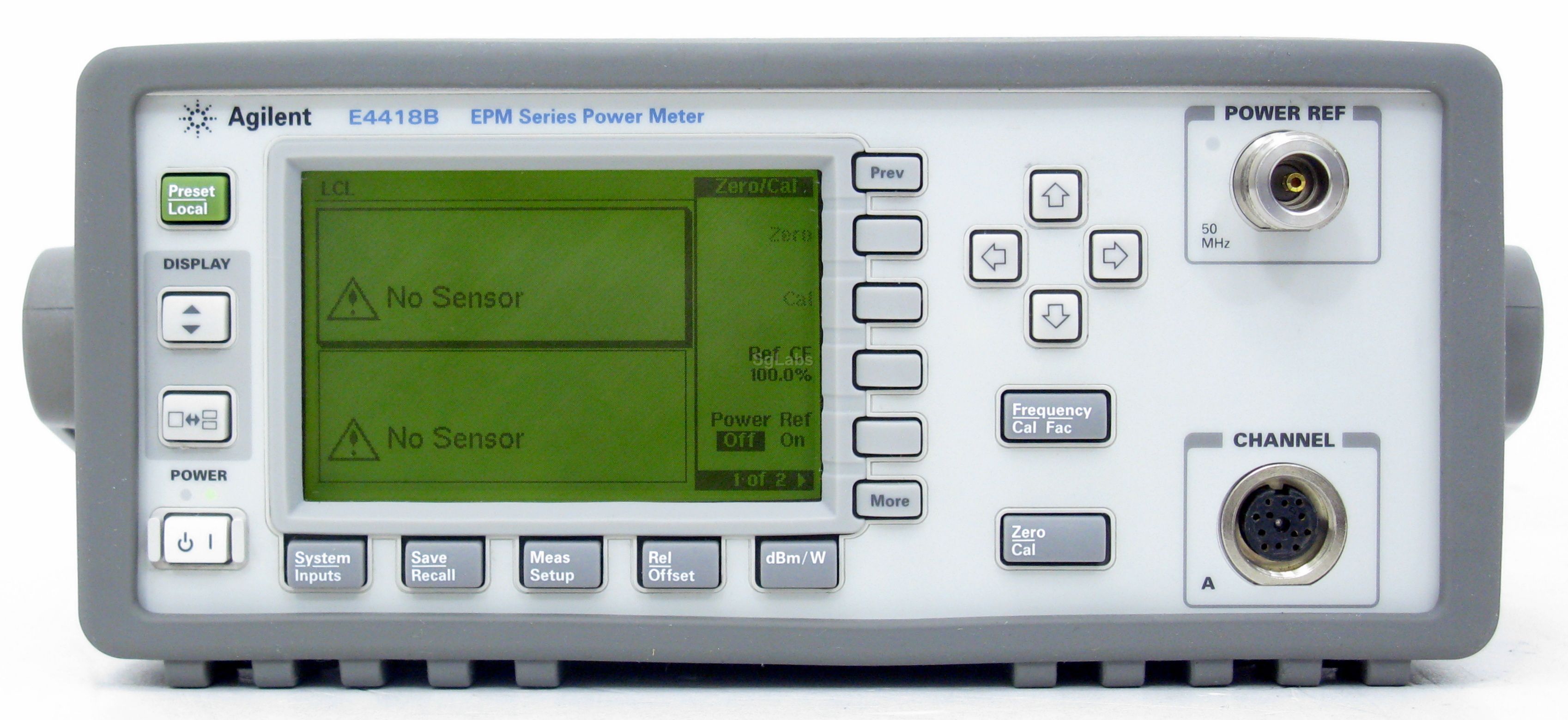

The Agilent E4418B is a low-cost, high-performance, single-channel, programmable power meter. It is fully compatible with the 8480 series and the E-series power sensors (except the E9320A family). Depending upon which sensor is used, the E4418B can measure from -70 dBm to +44 dBm at frequencies from 9 kHz to 110 GHz. Designed for bench and automatic test equipment (ATE) use, the E4418B makes fast (up to 200 readings per second with E-series sensors), accurate and repeatable power measurements.

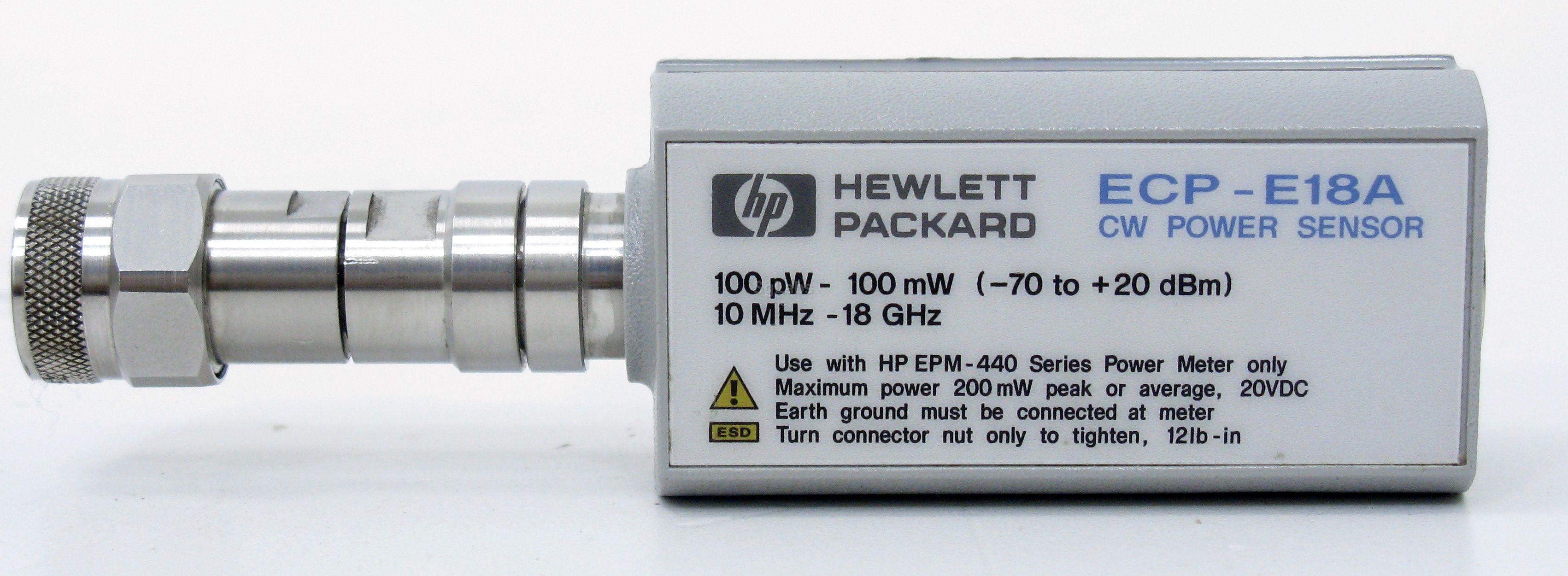

The ECP-E18A (E4412A) CW diode power sensor measures average power over the frequency range 10 MHz to 18 GHz and power range -70 to +20 dBm (90 dB dynamic range).
Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters
Features
Power Meter:

  • Fast measurement speed (up to 200 readings per second, over the GPIB, with E-series sensors)
  • Speed improvement of x2 using the 8480 series power sensor (compared to the 437B)
  • No range-switching delays with 8480 series sensors, and only one fast-range switch point with E-series sensors
  • RS 232/422 serial interfaces as standard
  • GPIB connector for remote control of all functions
  • Internal rechargeable battery option provides up to 3 hours continuous use (option 001)
  • Code compatibility with 437B and 436A

Sensor:

  • Min. Frequency 10 MHz
  • Max. Frequency 18 GHz
  • Min. Power - 70 dBm
  • Max. power + 20 dBm

  • Max. Frequency: 18 GHz
  • Min. Frequency: 10 MHz
  • Channels: 1
  • Max. power: +20 dBm
  • Min. Power: -70 dBm
  • Measure: CW
Price
 € 1.450,00
