HP Agilent Keysight, E4437B

You are here: RF Signal Generator » Vector

HP Agilent Keysight, E4437B

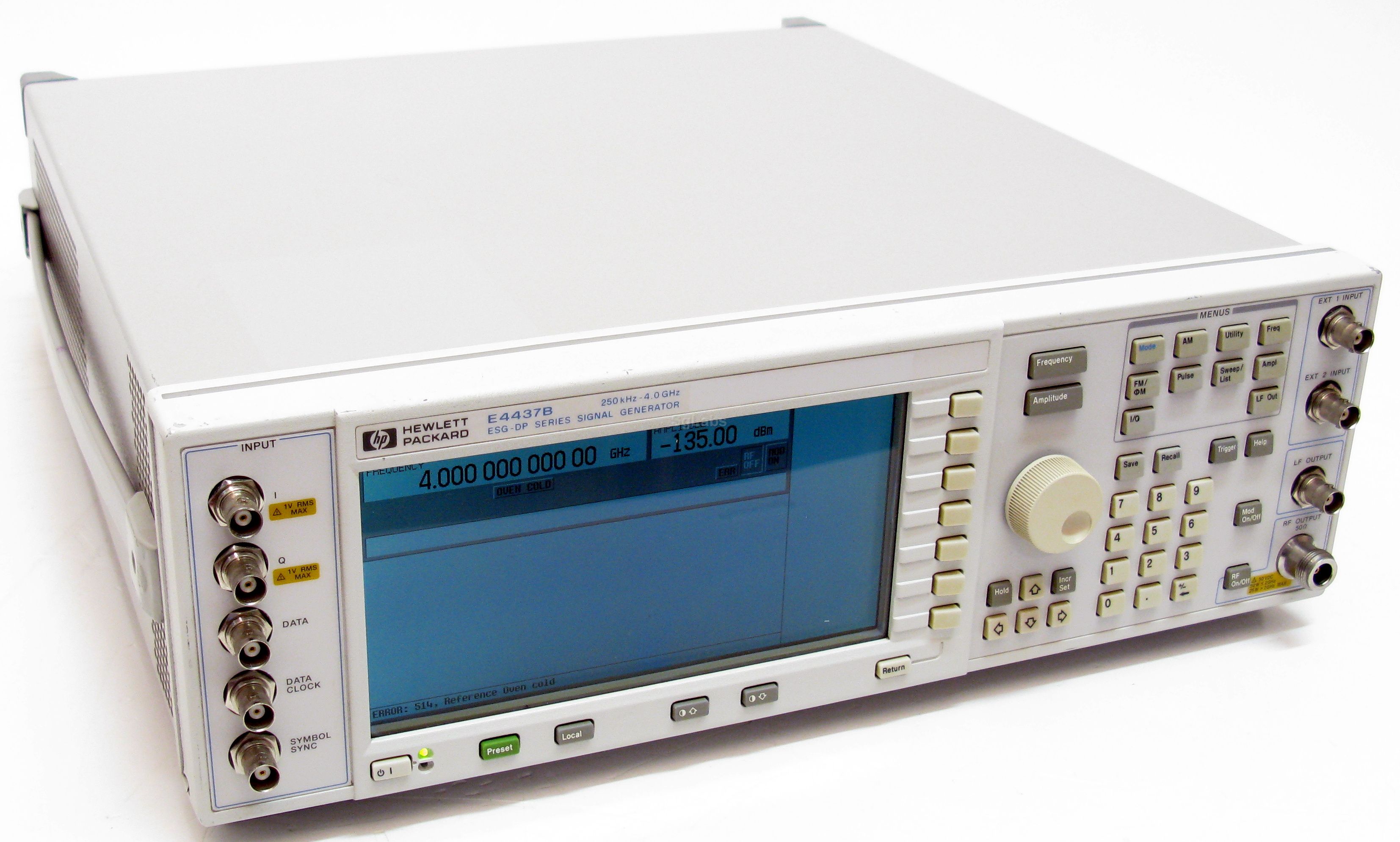

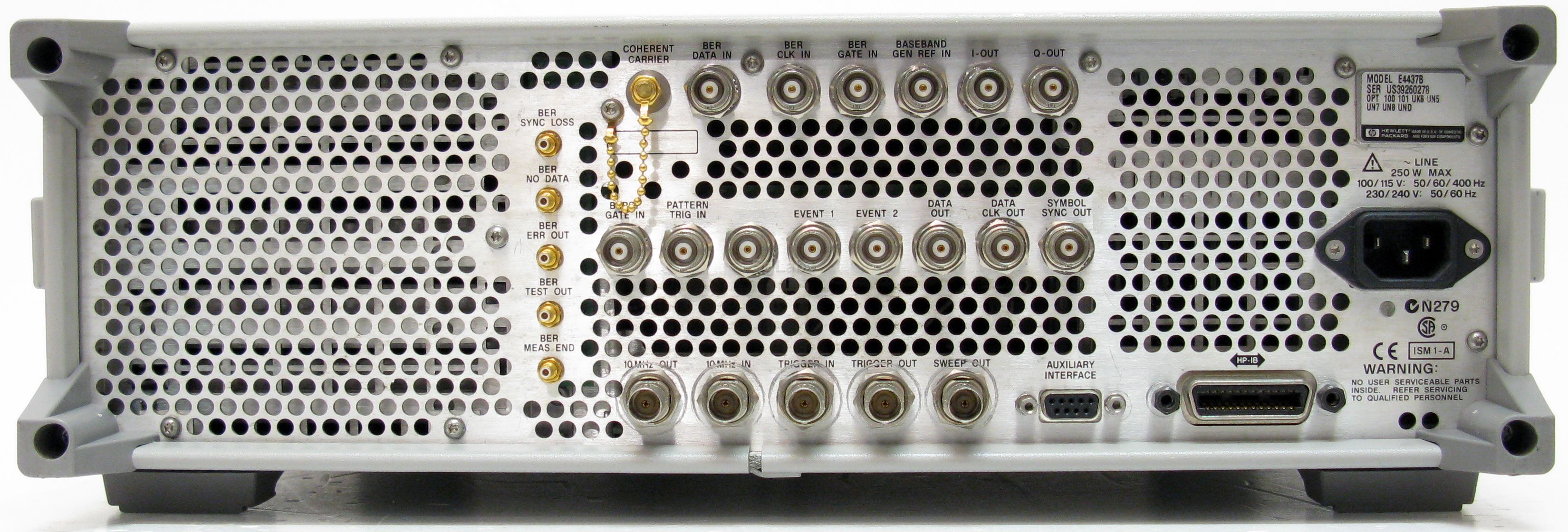

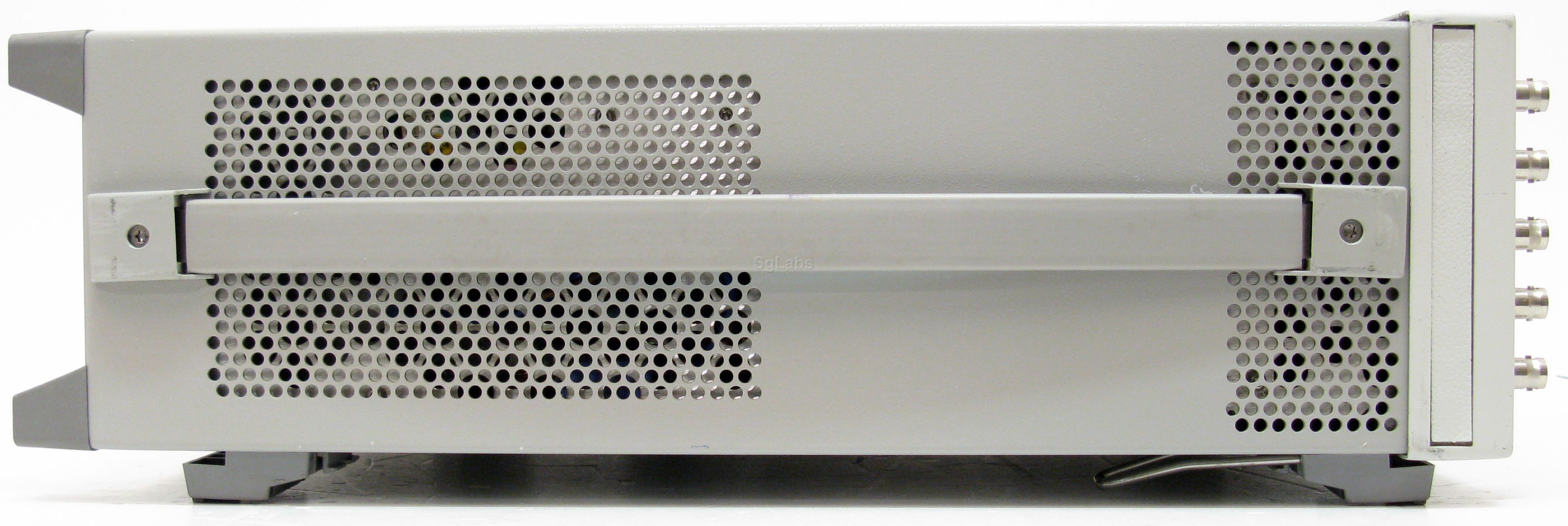

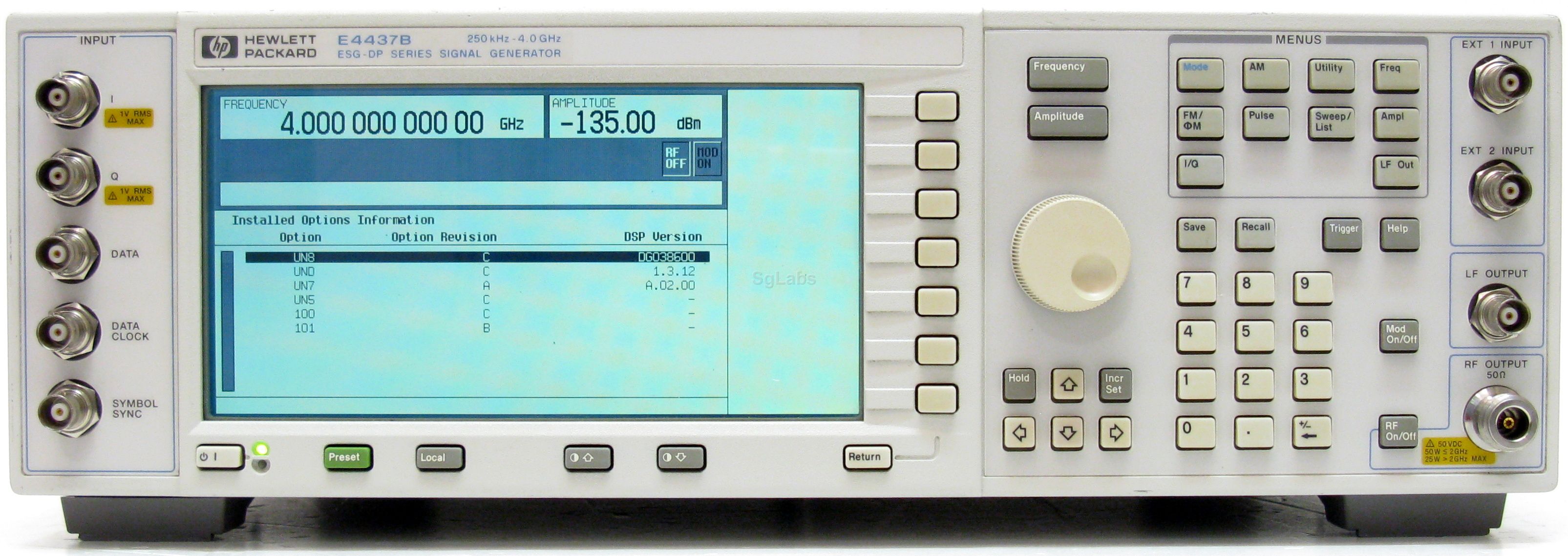

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
ESG-DP series: digital and analog instruments with high spectral purity
  • 250 kHz to 4 GHz frequency range with enhanced phase noise performance
  • RF modulation bandwidth up to 35 MHz
  • Optional dual arbitrary waveform generator and/or real-time I/Q baseband
    generator
  • 40 MHz sample rate and 14-bit I/Q resolution
  • 1 Msample (4 MB) memory for waveform playback and 1 Msample (4 MB) memory for waveform storage
  • Custom digital modulation (>15 variations of FSK, MSK, PSK, and QAM),
    AM, FM, phase modulation, pulse modulation, and step/list sweep (frequency and
    power)
Features
  • Frequency range 250 kHz up to 4 GHz
  • Max resolution 0.01 Hz
  • RF Output Level: -136 dBm up to 13 dBm
  • Impedance: 50 Ohm
  • Modulation: FM,AM, Pulse (internal generator), Phase, I/Q
  • Option 1E5: High stability timebase (standard)
Options description:
  • UN5: Adds multichannel IS-95 CDMA personality
  • UN7: Adds internal bit-error-rate analyzer
  • UN8: Adds real-time I/Q baseband generator with TDMA
    standards and 1 Mbit of RAM

  • UND: Adds internal dual arbitrary waveform generator
  • 100: Adds multichannel W-CDMA personality
  • 101: Adds multichannel cdma2000 personality
  • Max frequency: 4 GHz
  • Minimum Frequency: 250 kHz
  • Modulation: AM-FM-Pulse-I/Q-GSM
  • Max. power: +13dBm
  • Resolution: 0.01 Hz
Price
 € 3.000,00
Available for rent
Price per week € 210,00
