HP Agilent Keysight, 8444A

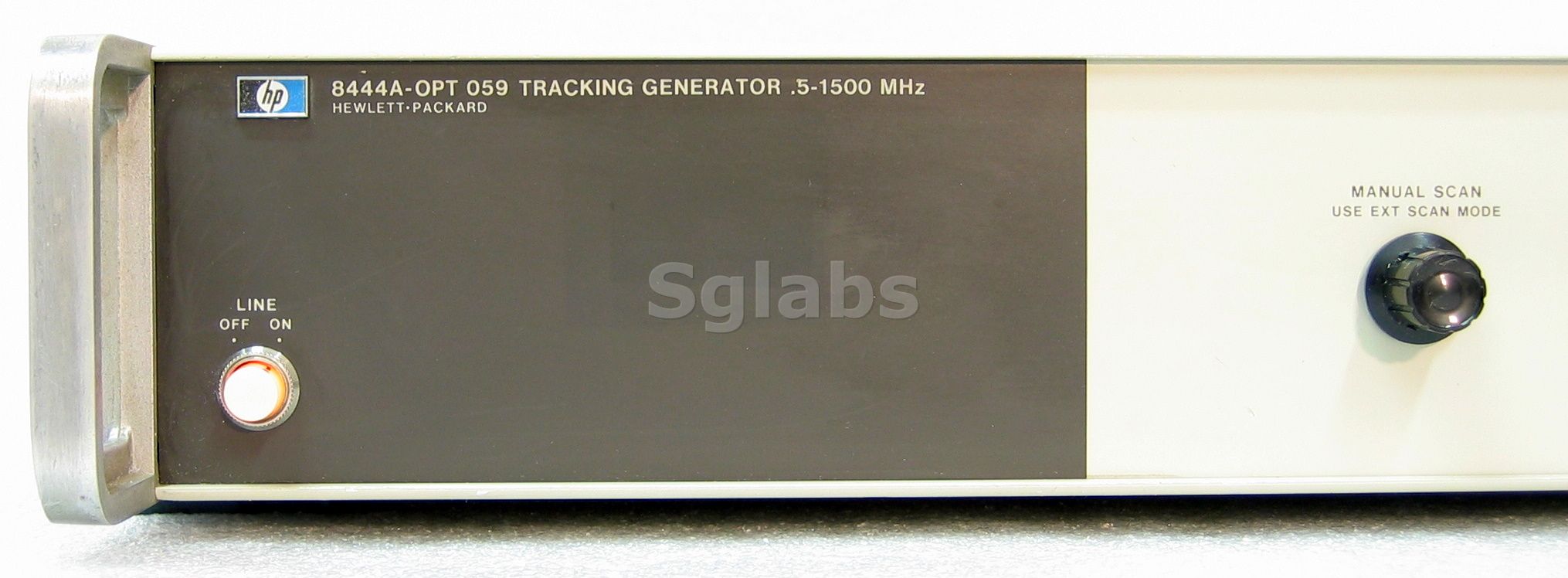

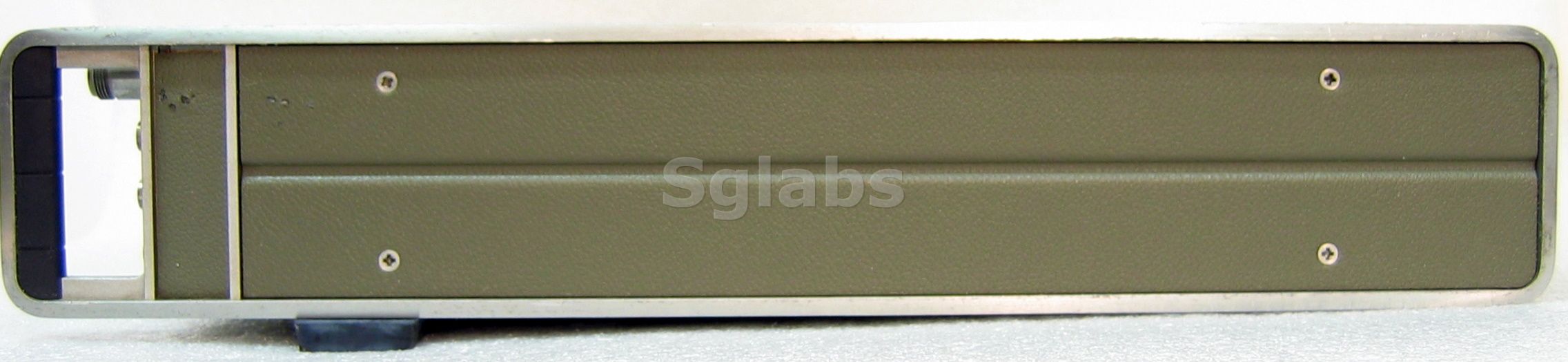

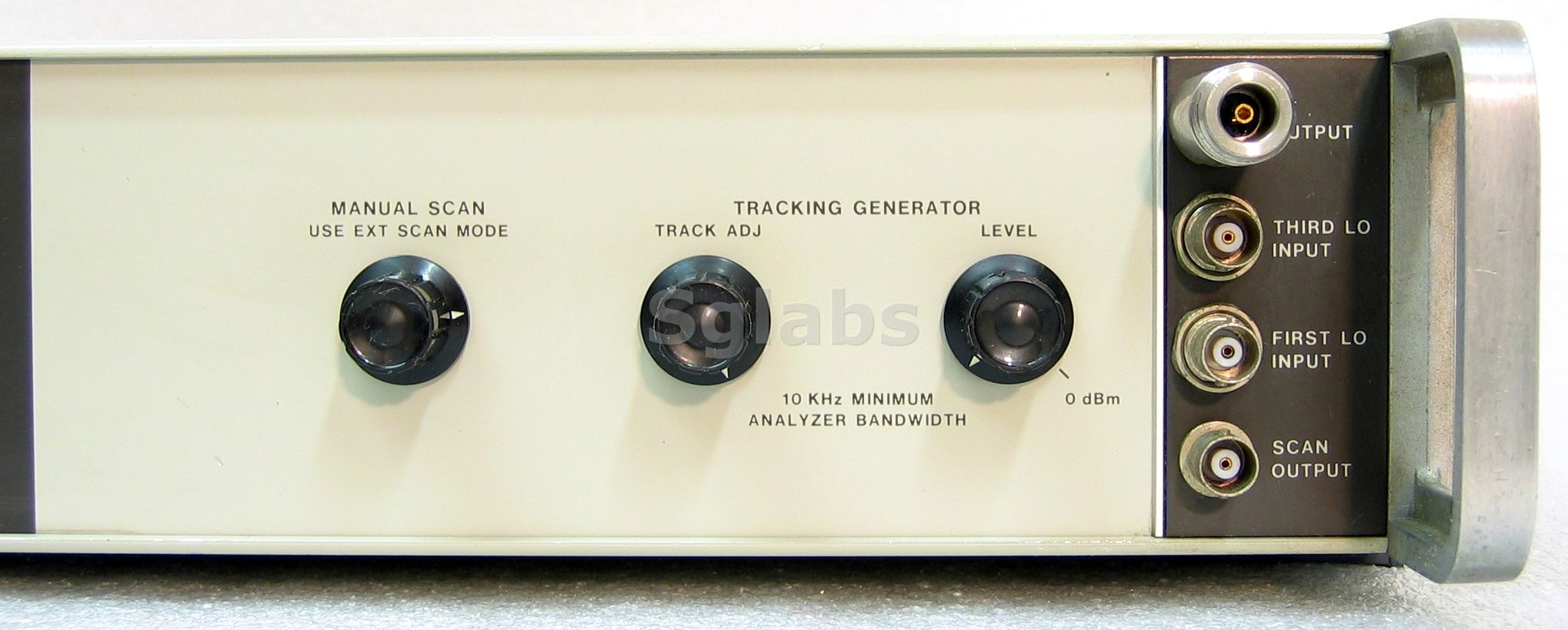

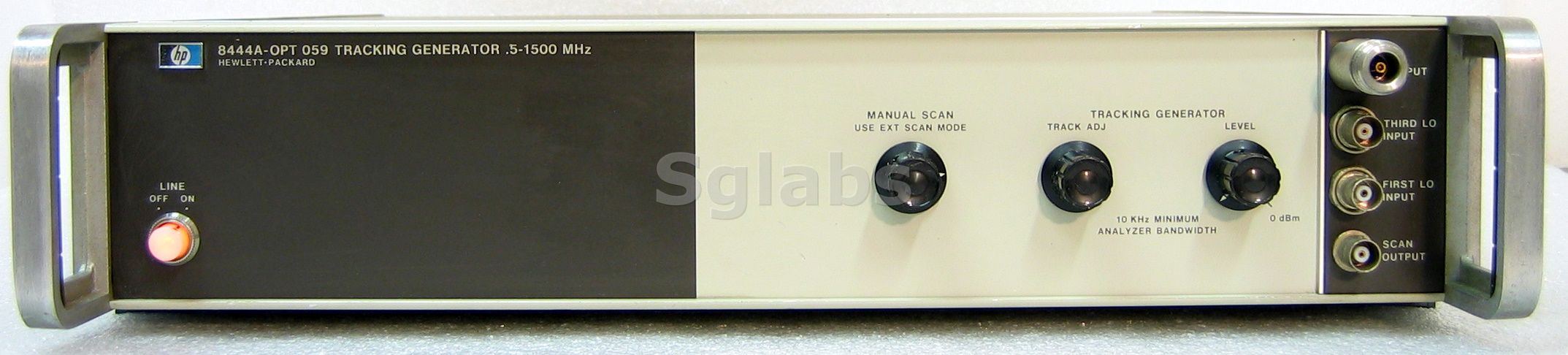

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description
The HP Agilent 8444A Tracking Generator is a tracking signal source for use with the 8554B, 8590A/B, 8568A, 8568B, 8558B and 8555A Spectrum Analyzers. Provides a swept source for frequency response measurements, and a constant amplitude signal for a frequency counter input. Allows for swept frequency tests over the 500kHz to 1250MHz frequency range. Dynamic range is greater than 90 dB from spectrum analyzer 1 dB gain compression point to average noise level (approx. -10 dBm to 100 dBm).
Features
  • Frequency Range 0.5 MHz - 1.3 GHz (opt.058)
  • Frequency Resolution 1 KHz
  • Residual FM (peak-to-peak) 200 Hz stabilized
  • Tracking Generator 0 to -10 dBm continuosly variable
  • Opt 59: 1500 MHz
  • Max. Frequency: 1500 MHz (opt.059)
  • Min. Frequency: 500 KHz
  • Max. Level: 0 dBm
  • Min. Level: -10 dBm
