IFR Marconi Aeroflex, 6914

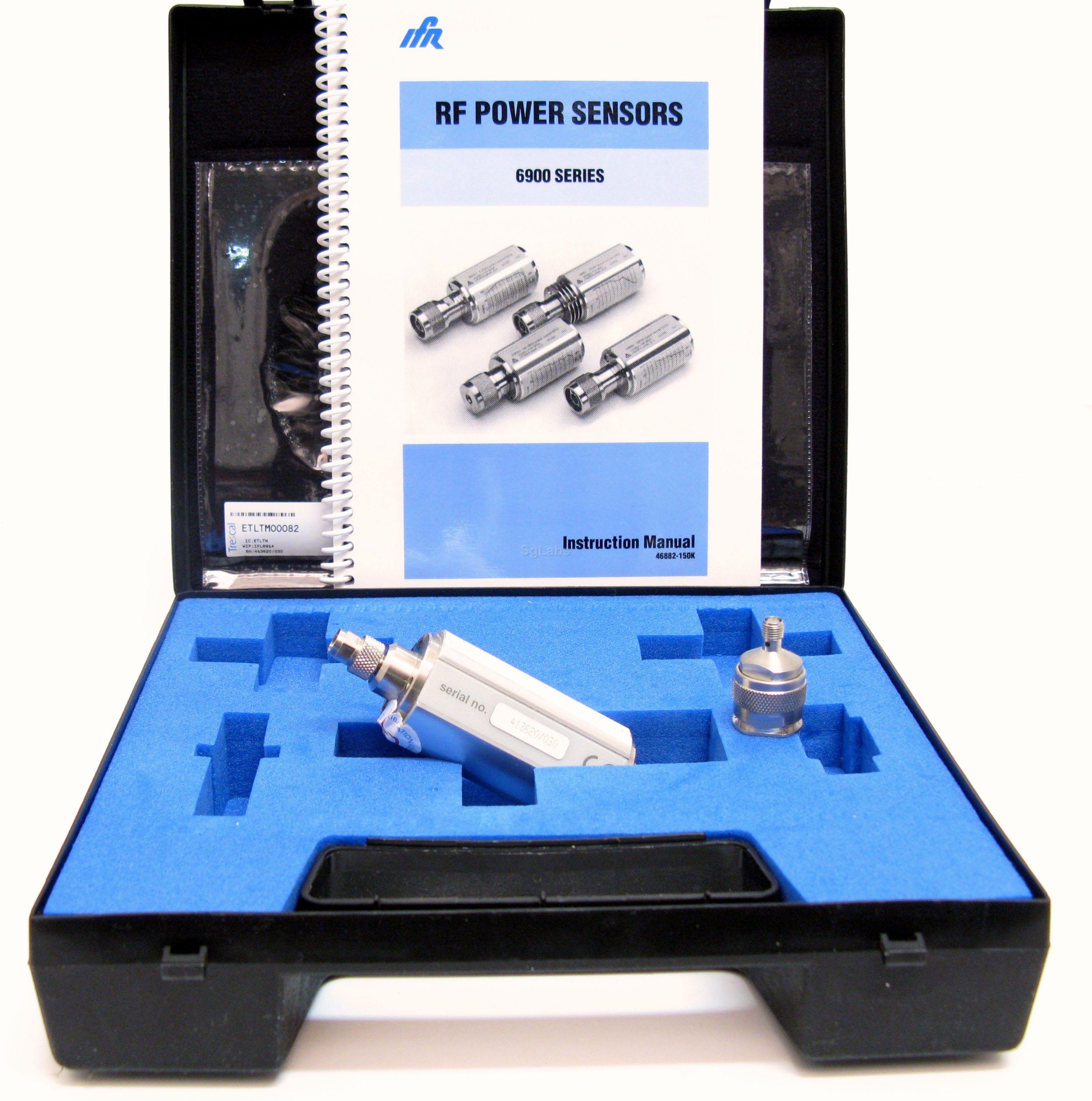

Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

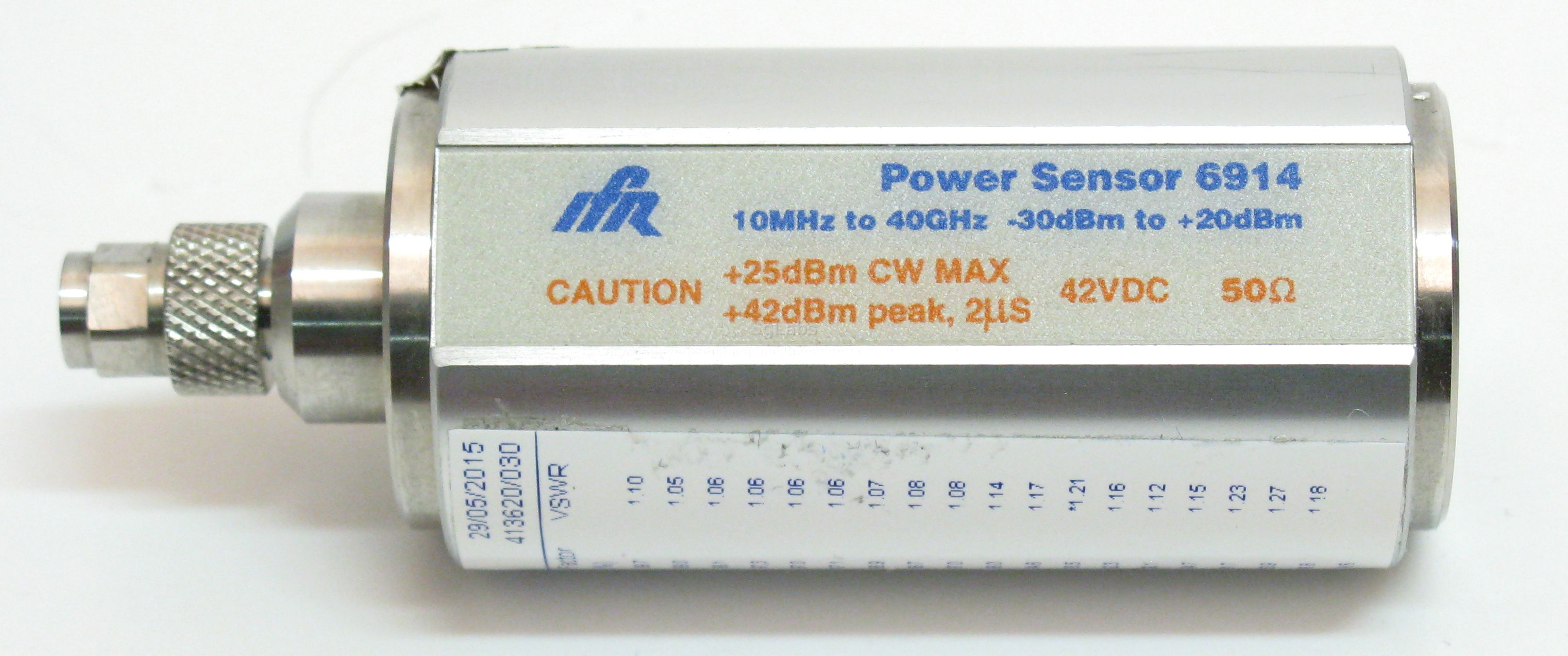

The IFR 6914 10 MHz to 40 GHz is a Thermocouple Power Sensor.
Features
  • Frequency range 10MHz - 40GHz
  • Power range -30dBm to +20dBm/(1μW to 100mW)

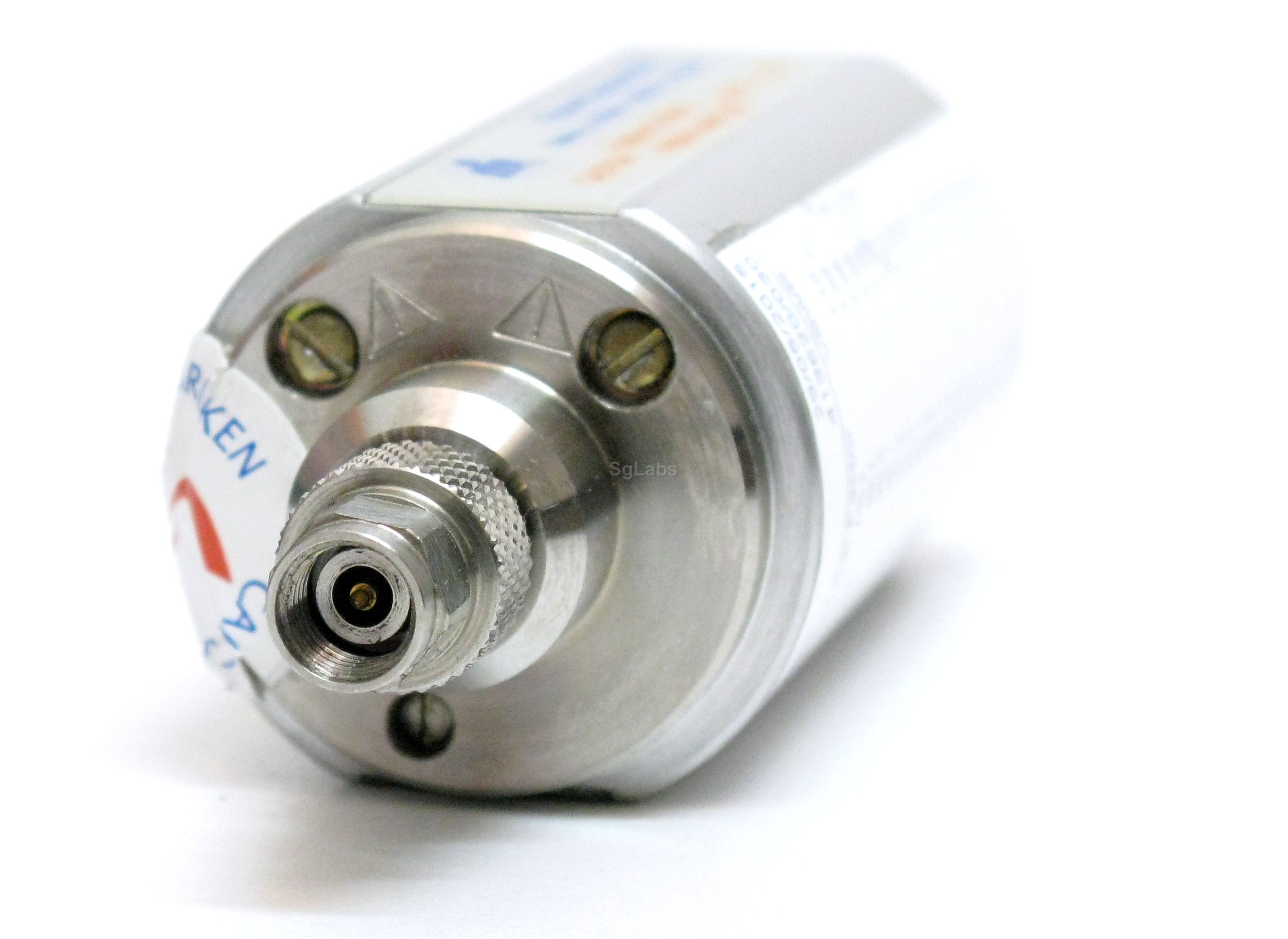

  • RF Connector MPC 2.92 mm, male 50 Ω
  • Compatible with 6960, 6970 and CPMxx Power Meter
  • Maximum RF Input +25dBm (300mW) (+42dBm (15W) peak for 2ms)
  • Sensing element semiconductor thermocouple
  • VSWR:
  • Linearity factor provided with sensor
  • Accuracy ±0.5% at 25 °C at 100 mW. decreasing by 0.005% per mW
  • Calibration factor provided with sensor
  • Uncertainty provided with sensor
  • Resolution 0.01%
  • Max. Frequency: 40 GHz
  • Min. Frequency: 10 MHz
  • Max. power: 100mW 20 dBm
  • Min. Power: 1μW -30 dBm
  • Measure: Medium Power
Price
 € 550,00
