JDSU, NT955
Above pictures can be different from actually sold item as well as the installed options. On request we'll send you high resolution pictures and options of the real item.
Product description

Certify individual CAT5, CAT5E and CAT6 Ethernet cable runs up to 1 Gigabit Speed per IEEE 802.3 specifications. Test for TIA568/570 interconnect problems, including opens, shorts, miswires, split pairs etc., determine fault locations, cable length and delay or noise conditions. Qualify lines for VoIP usage and produce and print cable test schedules and results.

Identify

Identify all types of components on your network together with port service discovery, (POTS, Ethernet, ISDN, Token Ring etc) with advertised speed ratings and DHCP negotiation. Access IP addresses, ping equipment and flash hubs/switches for positive port location.

Configure

Configure links between nodes at Gigabit speed. Check IP addresses on netmask, gateway/routers and domain name servers and confirm links between equipment for changes or upgrades. You can also access DHCP hosts to obtain network information.

Document

Using Plan-Um Software you can create layouts of offices or import existing Visio/AutoCAD images. Using the software you can show cables and the equipment they connect to in physical locations, print out layouts and corresponding cable test schedules. The new Network Tools section of Plan-Um allows you to create a complete network layout for on-site reference showing connections, equipment and cable pathways. You can also add notes to each component of the network for future add, changes and move legacy information.

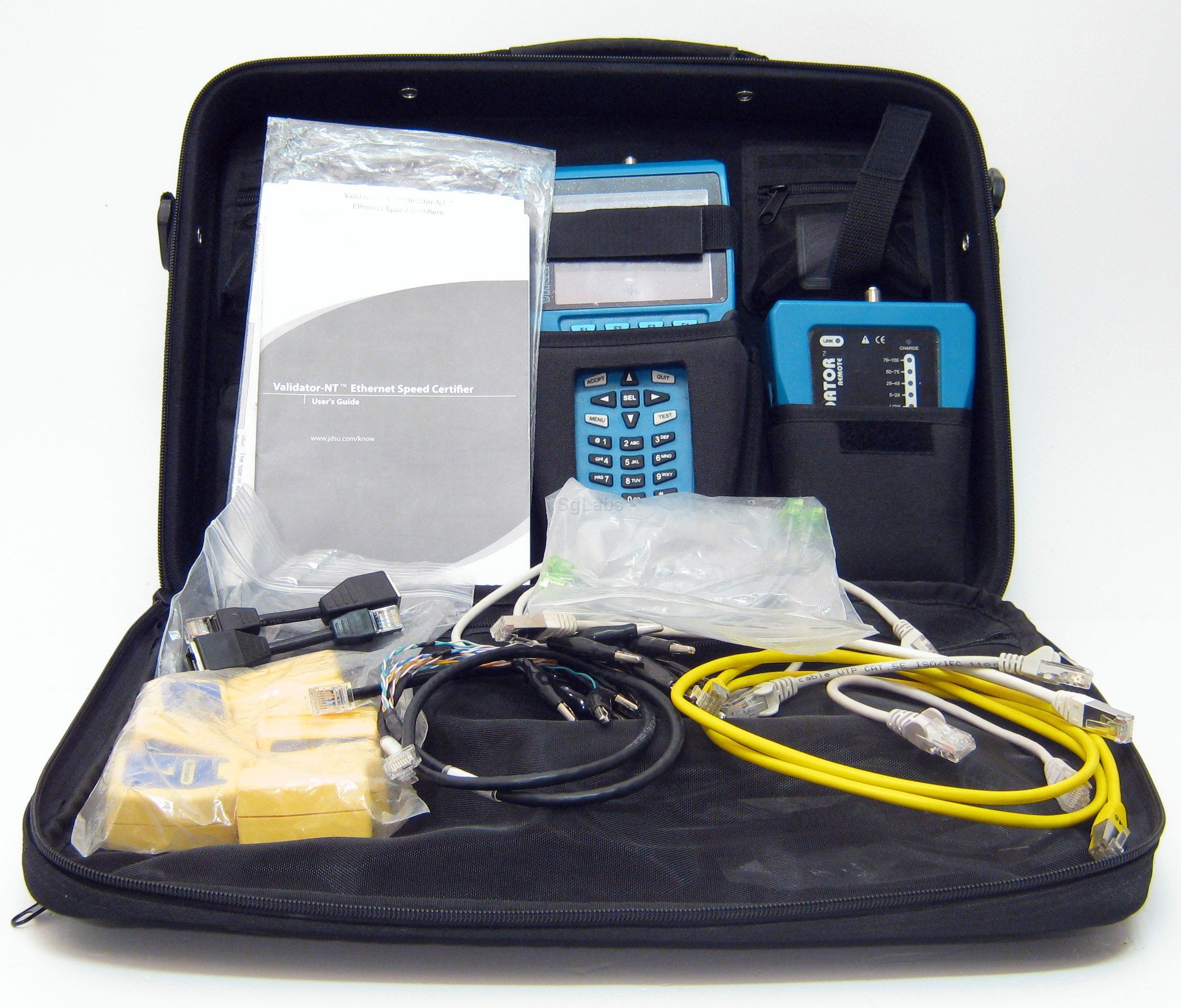

The Validator-NT NT955 Kit

includes the following:

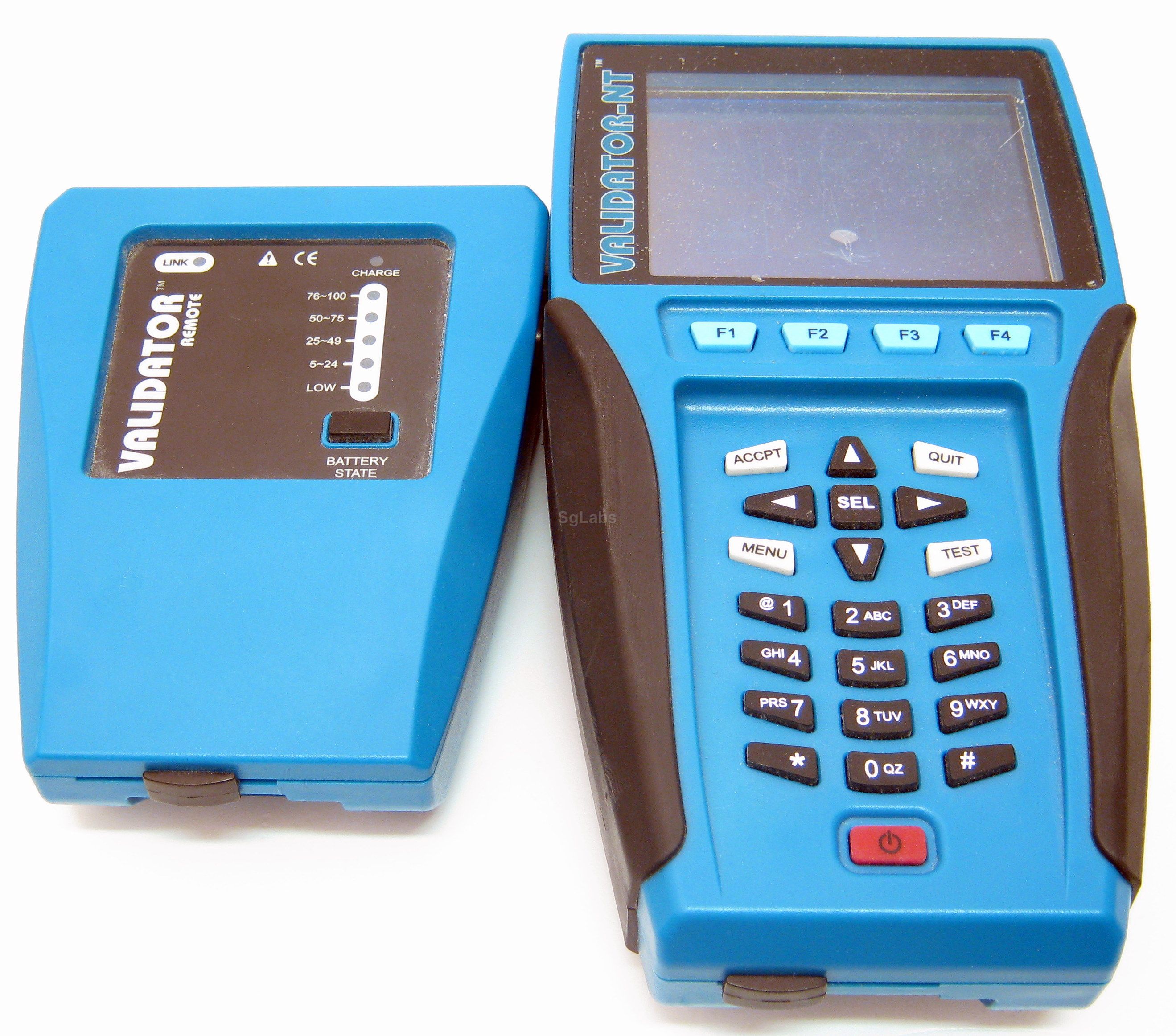

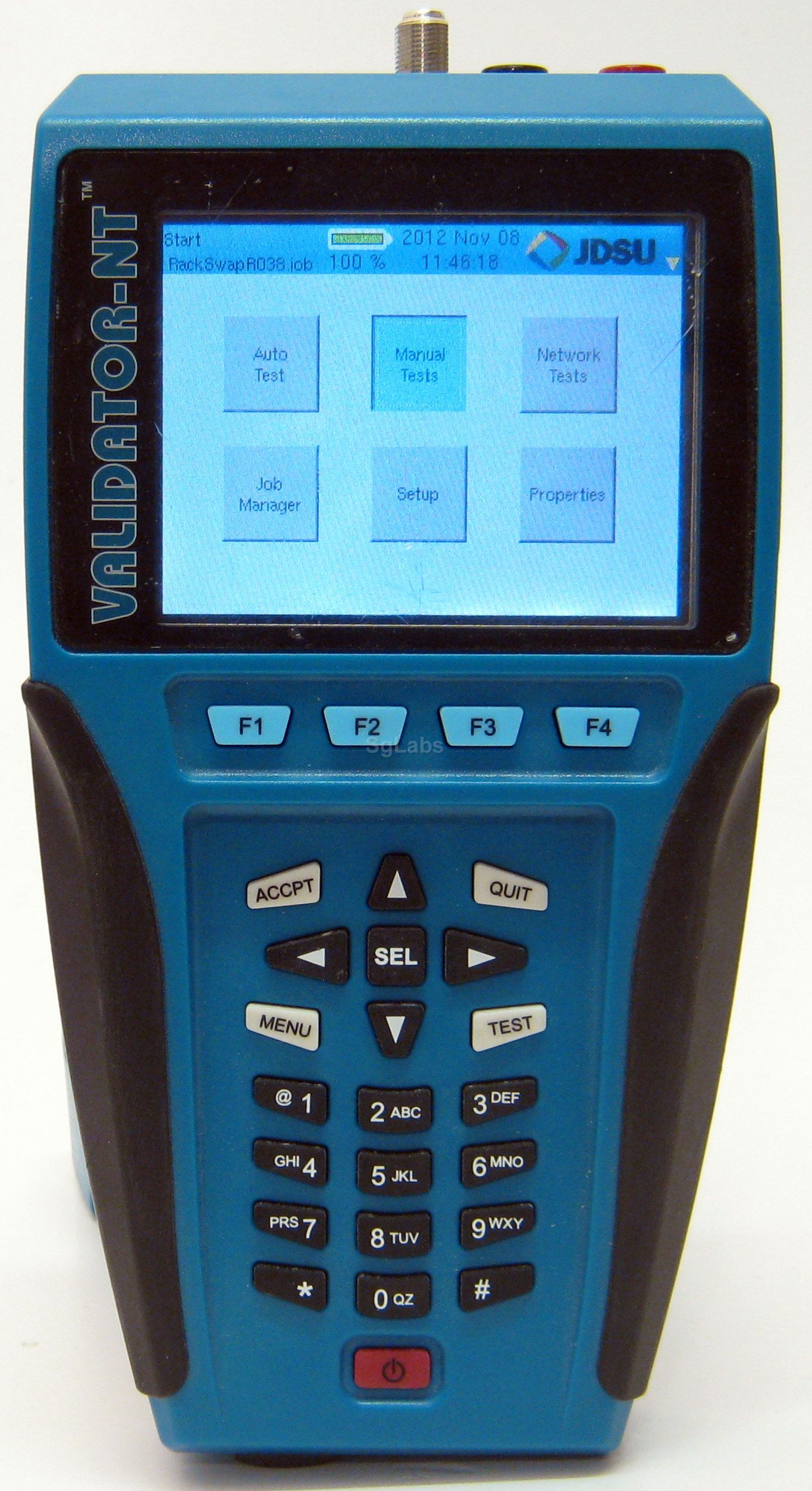

  • Validator NT Main Unit and Smart Remote
  • 2 lithium-ion rechargeable long-life batteries
  • 2 AC adapter/charger units
  • adaptor cable assemblies
  • Set of 8 wiremap remotes
  • USB cable assembly
  • 2 Sacrificial Cable modules (RJ 45)
  • Compact flash card
  • Plan-Um design layout software
  • Instruction Manual
  • Deluxe carrying case
  • Cat.: Cat.6
